I’m looking for help with a floor plan layout for master bath master bedroom and walk in closet

Where is it GOING and how shall you get to it? It's the empty box ant the upside down plan you posted?

. You want a 13 x 19 master bed, a 6 x 9 bath, a 6 x 10 wi?? ROUGHLY? as there will be walls .........and we have no clue to anything else

I agree we need a lot more info.Is what you have drawn the new part or is that box the part you want to add.

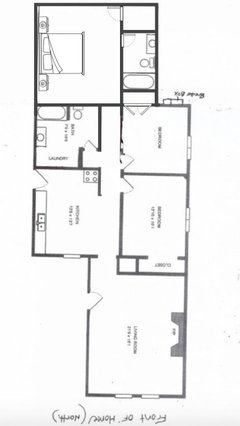

Sorry about the Vague picture. The addition is going to be in the empty box the hallway is Going to be running through the bedroom closet there is a line running through it where the new entry door will be

Are you working with a designer or a contractor? You should at least state what your priorities are for the space...big closet? Tub and a shower, tub and shower combo, or just a walk-in shower? Double sinks? I mean...this isn't a lot of information to work with.

So I’m looking for a decent size bedroom small walk in closet the bathroom looking to put a bath tube, double sink. I don’t have any contractor or designer yet. was looking for a floor plan but I am not good with fitting the rough layout with in the size of the 19x19 area also I am not sure if the size is accommodatable for the bath closet bathroom

How will this work with your current elevations? Roofline?

Awesome appreciate it. Yes everything is so pricey. i will be doing it in steps hopefully soon

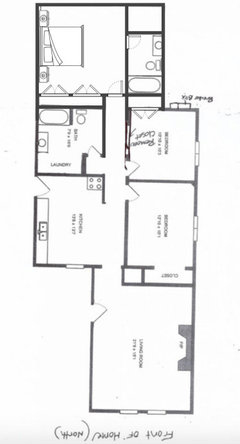

We're adding a slightly larger master suite (20x26) that also includes reconfiguring the original space to create a hallway entrance next to an existing hall bath. Our architect configured the space so that the new master bath abuts the existing hall bath, presumably to minimize the plumbing work etc, as in the 2nd sketch by @er612. She also aligned the new master closet with the existing space which just helps as a sound buffer. The rest of the layout was decided based on views - optimal placement of windows, strategic placement of the bathroom door, having wall space for a TV if you want that.

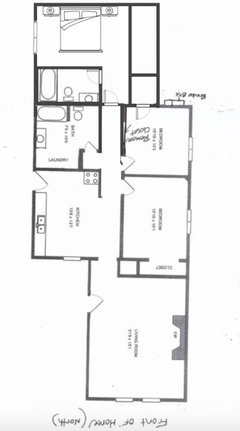

I like er612's last layout with the reach-in closet. I am not sure about the box on the top right corner (I suppose it is extra storage) but I would include this space in the bathroom. I would move the toilet in that area as I prefer to be in front of a vanity rather than a toilet when I get out of the tub. Since I see a tub somewhere else in your house, I would put a shower in your master bathroom and a longer one sink vanity with a cabinet.

I agree I love the last option it Allows us to put in a closet in that room being that i Eliminated the one for the hallway now just finding a person to create Dimensions and plans
