Help with total kitchen and major home remodel

4 years ago

Hello,

We are first-time posters here and really appreciate the willingness on this forum to offer advice. We are in the latter stages of developing plans for a major remodel of our home in Southern California and are looking for some help specifically with kitchen layout. We love our architect and what he has come up with, and now we think the plan needs practical input from a kitchen-design standpoint. We love cooking and expect to spend a lot of time in the kitchen. We are a family of four, two working adults and two boys who will be in their teens once we live in this place remodeled. We have two small older dogs as well.


One of the major purposes of our remodel is create openness in our home and to take advantage of the views from our hillside house. The ground floor of house has peek of ocean views to the southwest, and generally has nice open sky/city views from that floor. We have decided after many iterations of the design that we want to move the kitchen to the side of our ground floor that has these best views. There are many code constraints operating on this remodel, so we cannot add any more square footage and any changes to the exterior walls require preserving wall elsewhere on the house, so we're hoping not to make more changes to the exterior than is shown on these drawings.

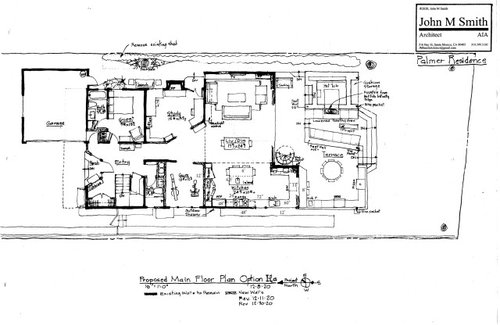

We are attaching an as-built of the ground floor for context and an architect's hand drawing of the new ground floor plans at 1/8 scale. The terrace seating area is still in flux but this is the general layout we want for the ground floor. The key constraint on the kitchen is: the windows on the west wall and south wall need to be big. There will be no over counter cabinets where the windows are shown. (The tree on the as-builts that would block this view is gone, fwiw.)





We have added labels to the plan for measurements that I thought would be helpful, but since they are sort of cryptic I'll list them here:


Appliances:

fridge 48" / counter depth

range: 48" induction (could change)


Windows:

west wall: 12'

south wall: 8'


Counter lengths:

Fridge to range: 24"

Range to sink: 72"

sink to corner: 60"

south counter: 11'

east counter: 7'

north wall (floor to ceiling cabinets and pantry): 12'


Island:

width: 6'

depth: 4.5'


Aisles (not labeled on plan):

range to island: ~48"

storage to island: ~60"

island to north counter: 60"

island to dining room table: 60"


Here are some of our concerns after reading guidance here and elsewhere about standards of kitchen design and good practice:


(1) Location of fridge deep into kitchen. Access difficult; need to pass through work zone. Distance from cabinets where glasses would be (probably north wall) quite far and requires pass through work zone. Location next to pantry bad for heat discharge from fridge. Also appears to have issues with clearance and impedance with pantry.


(2) Sink/dishwasher: too far from each other? sink too close to range? is it better to have more counter space next to range? Is the prep sink too small? it is drawn as 12" by 12". Is there sufficient prep space on the island? Could rearranging appliances result in a flow that eliminates the need for a prep sink?


(3) Dish storage/food storage: how do we deal with dish/glass storage without a lot of overhead cabinets? How to logically arrange these with respect to dishwasher and sink?


(4) Outdoor kitchen: any observations or concerns with respect to outdoor kitchen layout also very welcome!


If you have read and digested this lengthy message, you have our utmost appreciation. Thank you for any advice you can offer!


Comments (12)

  • 4 years ago

    Good for you for putting thought into kitchen standards and function! Too many people don't, or wait until really late in the process.


    We have folks on the board who are much better at layouts than me, but I can comment on the lack of overhead cabinets, as I have one upper in my kitchen and lots of windows. The answer is that really, you can put anything in a drawer that you can put in an upper. My plates and bowls are all in drawers. I have my glasses and mugs in my upper, but they could go in a drawer as well. You do need to put some thought into the configuration of your base cabinets. Drawers are better (way better) than cabinets, and you'll want to think about the drawer depth that's appropriate for what you want to store in them.


    Can you post a close-up of the kitchen area from your plan, with dimension? That will help people who want to offer concrete layout suggestions.

  • 4 years ago

    Thank you, cawaps! I am glad there are others who have heavy reliance on drawers in the kitchen. We would definitely do drawers - we have cabinets now and I even though they have pull out inserts in some I cannot wait to have drawers.


    Here is a cropped version of the plan that only shows the kitchen and the outdoor terrace. I hope that helps!



  • 4 years ago

    Bumping in hopes that some of the layout experts will jump in.

  • 4 years ago
    last modified: 4 years ago

    I rearranged the short wall on the left to put the fridge there and used a shallow, side-loading broom cabinet on the end. I don't think there's a concern about heat transfer between a fridge and pantry--we see that line-up a lot--as long as you follow the installation specs for airspace at the back and sides. If you are still concerned, you can include a sheet of foam insulation between the fridge surround and the pantry, covered by trim. Also note--I voided the bottom left corner (27"), but if you want to reclaim that space, it could open to the exercise room, for storage in that area.

    IMO, dishes should be stored near the DW, for the convenience of whomever is unloading, then an individual can retrieve a cup or bowl whenever he needs it. An exception is a coffee/drinks station, if it's far from the dish storage area. It looks as if you have a coffee center planned for the short counter in the top right of the kitchen (top right on the plan), so since dish storage will be near that spot, include a beverage fridge there. A small upper cabinet to the left of the MW could house a few glasses, if you really want them near the main fridge.

    72" is too far between the sink and range, even if that was your primary prep space. 36" is the minimum recommended by the NKBA, but maximum should be a comfortable step, or two--48"-54". I'd move the sink over far enough to put the DW to the left, along with a 36" super susan in the corner. You would have the choice of storing dishes in drawers on the wall to the left, or between the clean-up sink and range. Either location is out of the main prep space and convenient to the DR, for setting the table, and to the coffee/beverage counter. Dishes, cups, and glasses don't need to be kept in upper cabinets; almost anything--even small appliances--- can be efficiently stored in drawers. Dishes in drawers.


    I made the island 6.5', rather than 6', since each seat needs 24" elbow space, plus 15" leg space. The prep sink should be at least 18" wide, and I moved it to the other side to leave a nice landing space for incoming groceries to be loaded to the fridge and pantry. A trash receptacle is on the corner of the island, where it can be easily shared by prep and cooking zones, but if that's too far from the clean-up zone, I included another trash/recycle pull-out near the beverage center. The range was moved down slightly, to keep it centered on the island. I added legs to the island seating overhang, and an extra run of shallow cabinetry to help support the counter.

    Side-loading broom cabinet, top right:


    NKBA guidelines

    New to Kitchens? Read me first.

    (I'm not a pro, but I want everyone to have the best kitchen possible. :)

    bevydana thanked mama goose_gw zn6OH
  • 4 years ago

    Amazing, thank you! We are digesting this information now... so much to think about.


  • 4 years ago

    Thank you so much, mama goose, for your incredibly helpful comments. We shared them with our architect and he too was so impressed by the time you took and the thoughtfulness in your comments. We met with him this weekend to discuss the revised kitchen layout, which is below. We would be very interested whether you or any of the other layout experts have any further comments. We are holding off on interior elevations of the kitchen to make sure that this is a good workable layout. Instead of voiding the corner, he designed a partial walk in (step in) pantry but on some shelves, there would be a recessed microwave that faces out onto the counter in the kitchen. The landing space for fridge contents is the island. He also reduced the counter outdoors to allow for a little more space - we don't think we need so much prep space outdoors. We are wondering where we would store drinking glasses in light of relationship between fridge, dishwasher and work zone.

    Thank you for any additional thoughts!

  • 4 years ago

    Guess I don’t know how to paste a link to a Houzz pic??!

  • 4 years ago

    Thanks- to make sure I understood that, the countertop would also reduce to 12-15” - would you do that the full wall that the pass through is on? That would seem to lose a lot of storage.

  • 4 years ago

    Yes the full wall, but let me say I hate corner cabinets so if the choice was two regular corner cabinets flanking the U or dead corners w 15” depth cabs connecting, I’d not want the corner cabinets. I think those are a waste of space. I think when you get to kitchen/cabinet layout stage we can see better.

  • 4 years ago

    If you had great views, I would rather have the living adjacent to those, and the kitchen would face and look over the living to the views. But, working with your desired kitchen location and keeping views from the living open, I would tweak the basic concept a bit:


  • 4 years ago
    last modified: 4 years ago

    As I mentioned before, I would put a drinks center, with a beverage fridge, in the upper right corner of the plan. (As we're viewing the drawn plan). But if you want glasses for ice and chilled water near the fridge, and the MW sits on the counter, then you could store some glasses on a shelf above the MW.

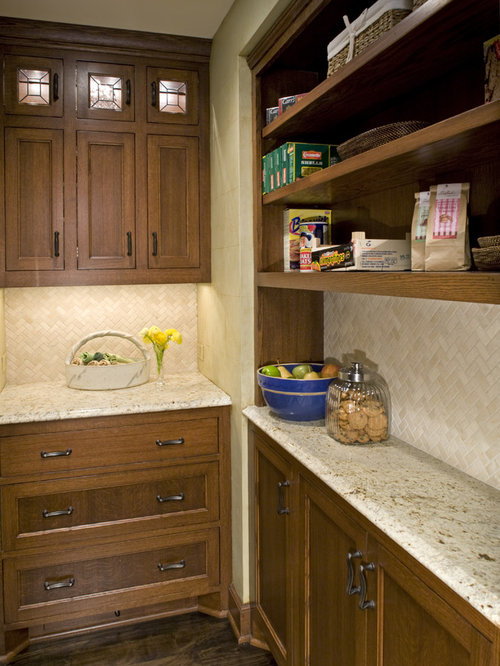

    You might also consider an appliance pantry for the corner, if that works better than the pantry as it's now designed. These pics are examples I keep on my desktop:
