Adapter for connecting Miele W1/T1 washer/dryer to one 240V outlet

2 years ago

last modified: 2 years ago

I am planning a laundry closet for a compact washer/dryer set. I am considering getting the Miele W1 compact washer which requires 120V/15A, and the Miele T1 heat-pump dryer, which also requires 120V/15A. Miele sells an adapter that allows you to plug both the washer and dryer into a single 240V outlet. This doesn't seem right to me but I am no electrician. I thought the washer and dryer are supposed to be on their own, separate circuits, no? Anyone with a Miele try this?

Featured Answer

kaseki

2 years ago

Well, they would be on separate "hot" circuits, with a common neutral. A 240 Vac GFCI should be OK with this. The difference is that if one circuits faults, both circuits are interrupted. However, whether the AHJ of one's municipality is OK with the approach is something I'm not qualified to answer. It may depend on whether one is installing a pair of 120 Vac appliances where only a 240 Vac cable is present, or designing for this before construction. In the later case, I would run two cables from independent breakers and feed two outlets, or feed a 240 Vac cable to a satellite breaker box and thence to two outlets. This would provide easier upgrades if a future occupant wanted to use a 240 Vac dryer. Please consult with an electrician.

Sort by:Oldest

Comments (6)

wdccruise
2 years ago

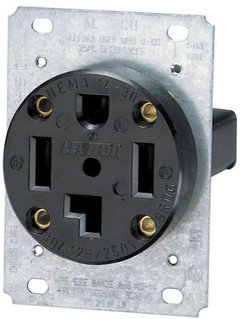

The NEMA 14-30 outlet is for a 240 volt 30 amp circuit. The adapter is designed for an outlet that looks like this:
randomwalker thanked wdccruise
Related Professionals
Newington Kitchen & Bathroom Designers · Allouez Bathroom Remodelers · Panama City Bathroom Remodelers · White Center Cabinets & Cabinetry · Georgetown Flooring Contractors · Temple Terrace Flooring Contractors · Delhi Electricians · Ashburn General Contractors · Hawthorne Solar Energy Systems · Reedley Solar Energy Systems · Chattanooga Home Automation & Home Media · Evanston Home Automation & Home Media · Fort Lauderdale Home Automation & Home Media · Laurel Home Automation & Home Media · Newberg Bathroom Remodelers
luna123456
2 years ago
You mean this:

I AM using this in my house. A 240v circuit in the USA is just two 120V circuits that are opposite phase which share a common neutral. Most modern houses also have a ground on this circuit.

The shared neutral is not a problem unless there is a fault somewhere. The Miele adapter has fuses so no circuit or the neutral can carry more than 15 amps. There is no problem from a safety standpoint.

Some older houses have no ground on their 240V circuits. Just two hots and a neutral. This could still potentially be used, but the wall outlet would most likely need to be changed. Not as safe, but hey dryers ran that way for half a century.
randomwalker thanked luna123456
luna123456
2 years ago
The separate circuits for washer and dryer was due to an electric resistance dryer needing thr higher voltage and current to generate enough heat.

I can run BOTH the washer and the dryer on a SINGLE 120V 20 amp circuit at the same time. They both draw less than 20amps combined even with the compressor in the dryer running and the heater in the washer running. Have over 6000 hours on the machines with this configuration.
randomwalker thanked luna123456
littlegreeny
2 years ago
I am also using the same Miele adapter that Luna shared above for the last 1.5 years with absolutely zero issues.
randomwalker thanked littlegreeny
Jeffrey Fisher
2 months ago
I'm bumping this old thread. The adapter shown above splits the 240 volt into (2)120 volt circuits. Miele also makes a box adapter for 240 volt washers and dryers where both the washer and dryer plug in to a single box (2)240V. Because the washer and dryer both pull less than 15 amps you can put them on a single 30 amp 240 volt circuit which is typical in American homes for electric dryers.

Note: this only applies to residential models. If you happen to have a commercial model, octoplus, or Little Giant they will need their own separate 240 volt circuit.
