House Planning: When You Want to Open Up a Space
With a pro's help, you may be able remove a load-bearing wall to turn two small rooms into one bigger one
If you live in a house that is a series of small rooms, you may think it would be nice to open up the space by combining two small rooms into one. But what if the wall separating them is structural?
Good news: That structural wall can be removed and you can open up your home the way you want. You will need to replace the load bearing (structural capacity) of the wall, so consult a local architect before you get started to make sure the work is done properly and in accordance with building code. Here’s a little background to help you start the conversation.
Good news: That structural wall can be removed and you can open up your home the way you want. You will need to replace the load bearing (structural capacity) of the wall, so consult a local architect before you get started to make sure the work is done properly and in accordance with building code. Here’s a little background to help you start the conversation.

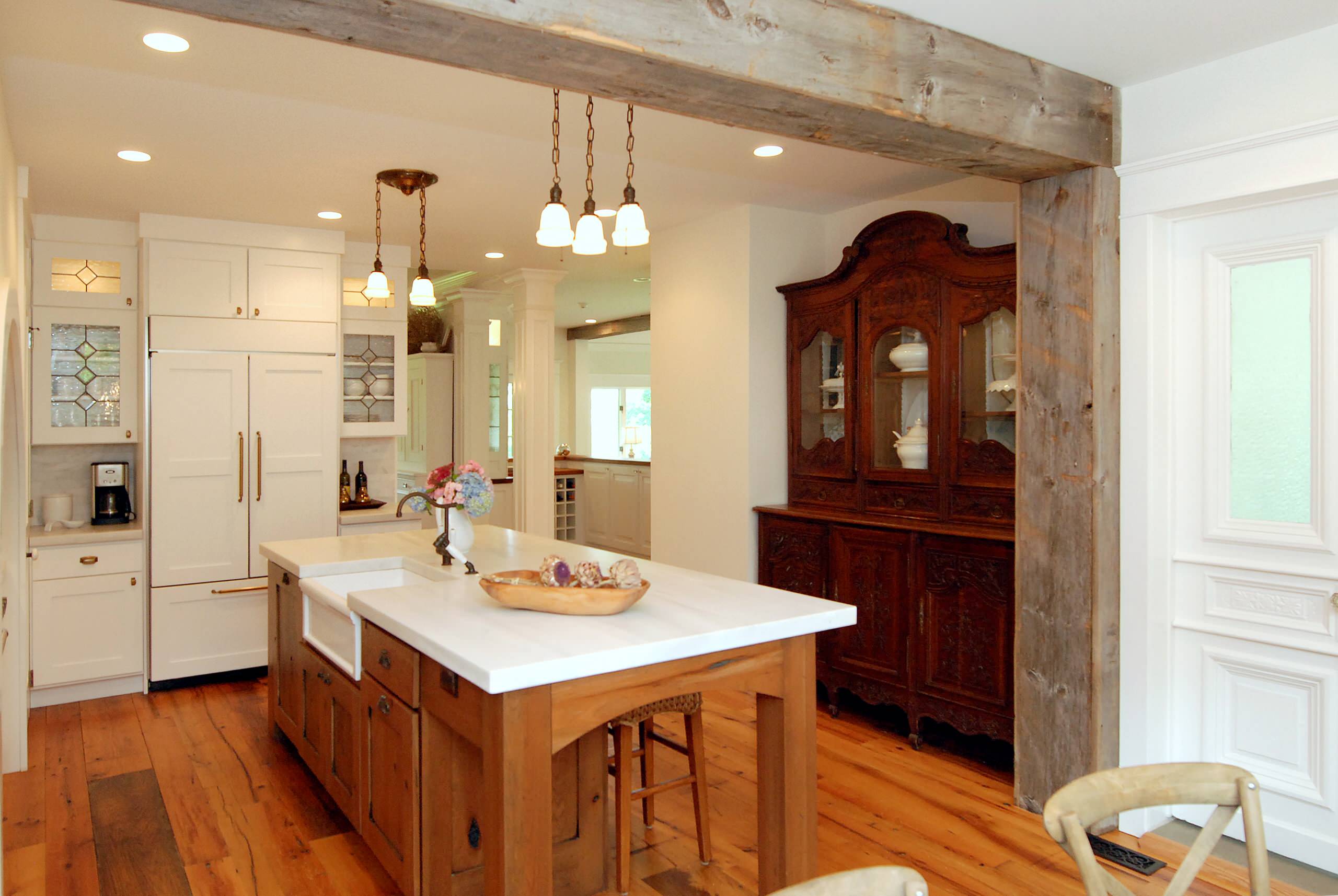

This kitchen was once two rooms. The wall that ran down the middle broke up the space, making it feel choppy and small. A new beam was installed above the ceiling so the finished space would be one big, open room.

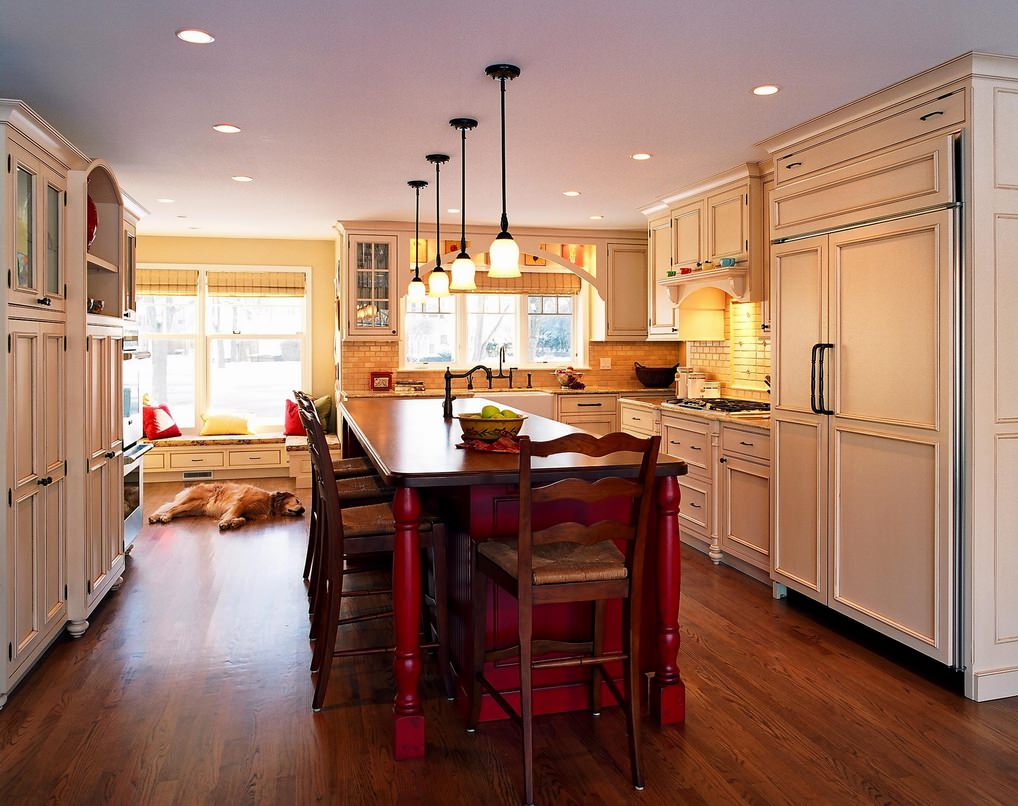

The wall that separated the kitchen from the family room and dining room was also removed. In this case, a steel beam was installed above the ceiling line as the span (unsupported length) is quite long.
If the beam can’t be hidden, use it to make a statement, as in this room.

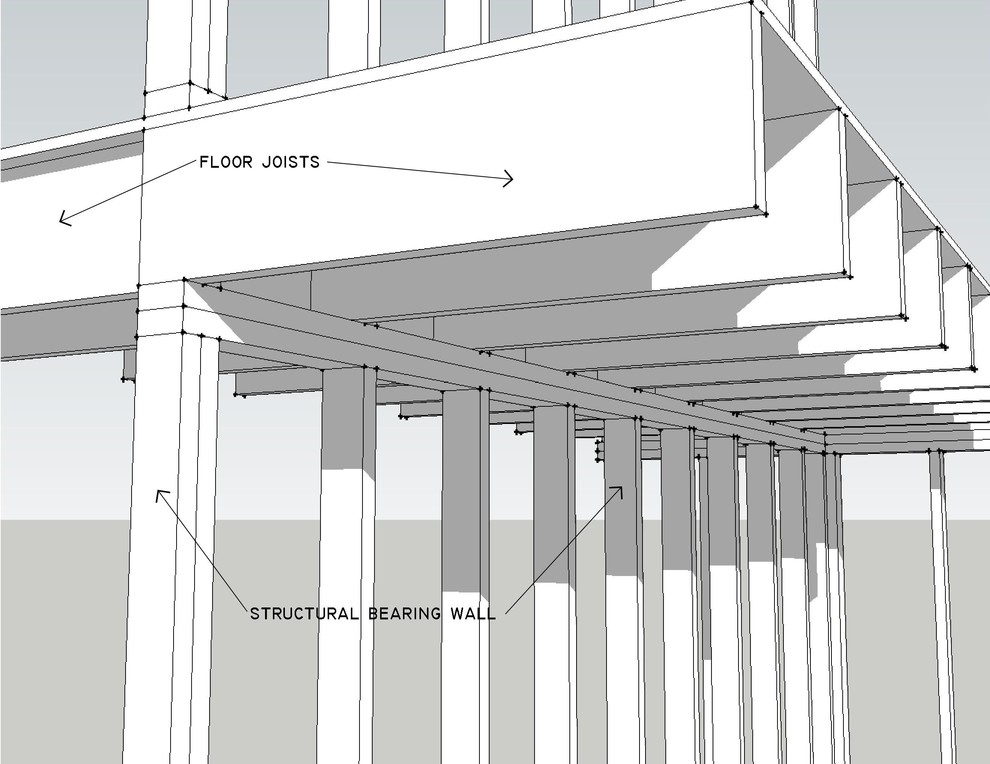

Here’s a simplified sketch of a bearing wall that supports a structural load such as a roof and second floor and transmits this load to the ground through a foundation system. Removing a wall like this requires that you know how much load is being supported over how much distance. This information can be determined by an architect through an examination of the existing conditions.
The least expensive approach to removing the wall is to install an engineered wood beam below the existing floor joists. A contractor would build a temporary support wall on each side of the existing bearing wall, remove the bearing wall, install the wood beam and then remove the temporary walls.
Your architect may find that you'll need to use a steel rather than wood beam due to the length of wall removed and the amount of weight to be supported. Though a steel beam is typically more costly than wood, there are situations when it's the most viable solution.

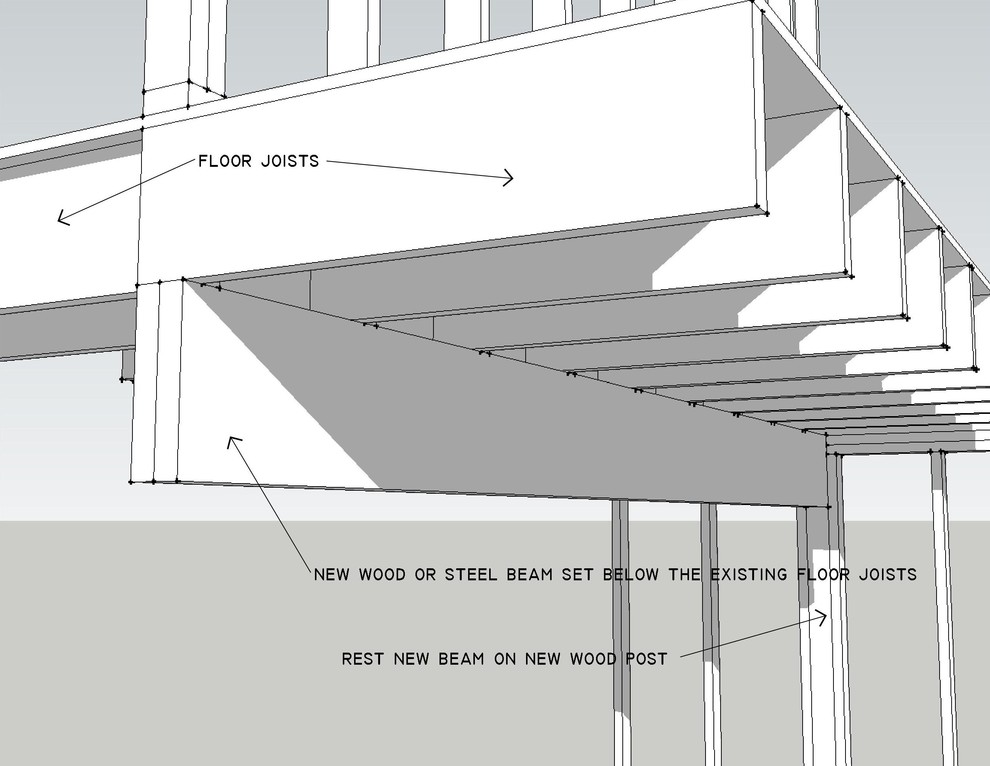

In this example, the beam sits below the joists and will be below the ceiling line. The beam will then be visible in the finished room and will affect the visual and aesthetic qualities of the room.
Your architect may find that you'll need to use a steel rather than wood beam due to the length of wall removed and the amount of weight to be supported. Though a steel beam is typically more costly than wood, there are situations when it's the most viable solution.
In this example, the beam sits below the joists and will be below the ceiling line. The beam will then be visible in the finished room and will affect the visual and aesthetic qualities of the room.
Another approach is to hide the beam within the floor joists so it isn’t visible when the room is finished. In this case, the existing floor joists are cut away to provide space for the new beam. This approach tends to be more costly due to the extra labor needed to trim the floor joists. Again, don’t try this without help from a licensed architect or builder to evaluate the possibilities and design a solution that works for your home.
