How to Create a 3D Floor Plan

Access 3D Floor Plans

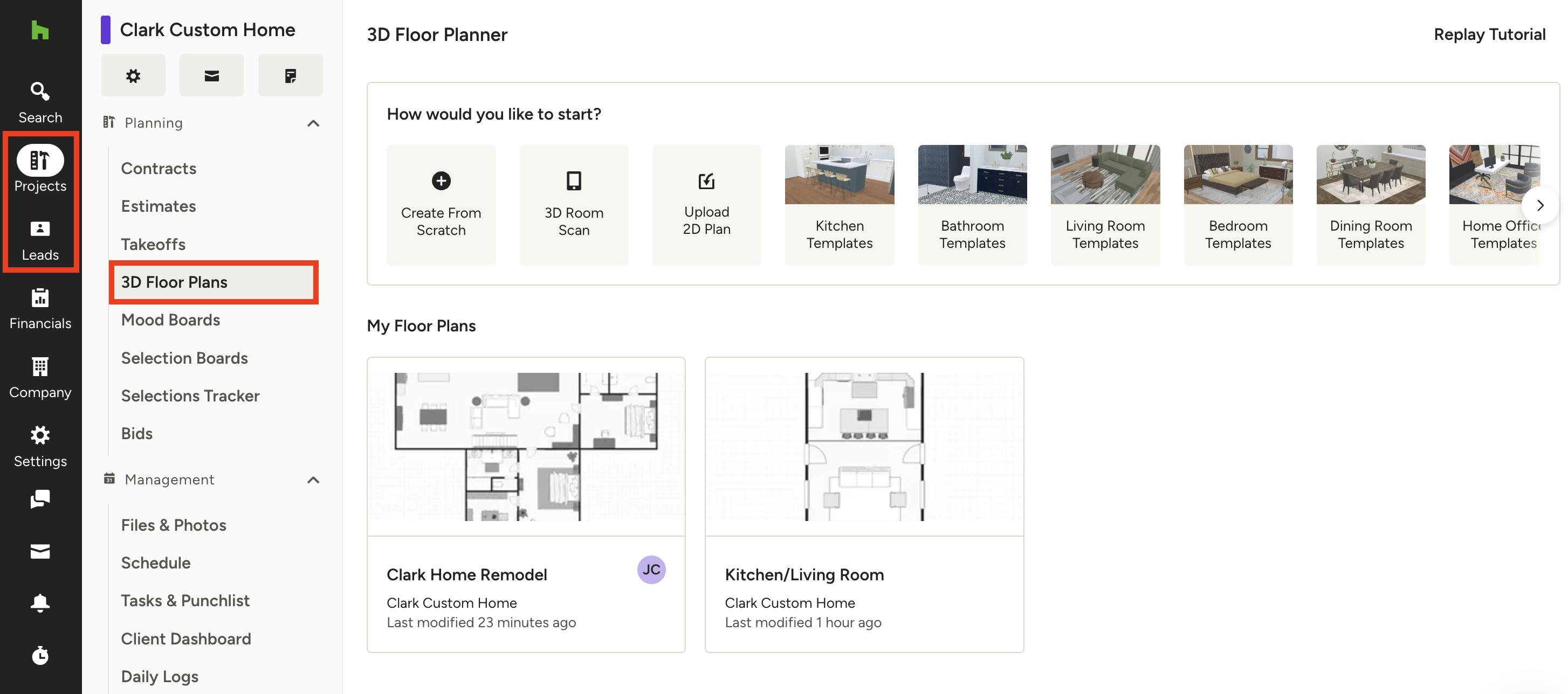

There are several ways to access your 3D floor plans. If you would like to view or create a floor plan for an existing project or lead, click the Projects or Leads icon from the left menu, then select the relevant project/lead from the list. Click on 3D Floor Plans in the left menu, as shown here for projects.

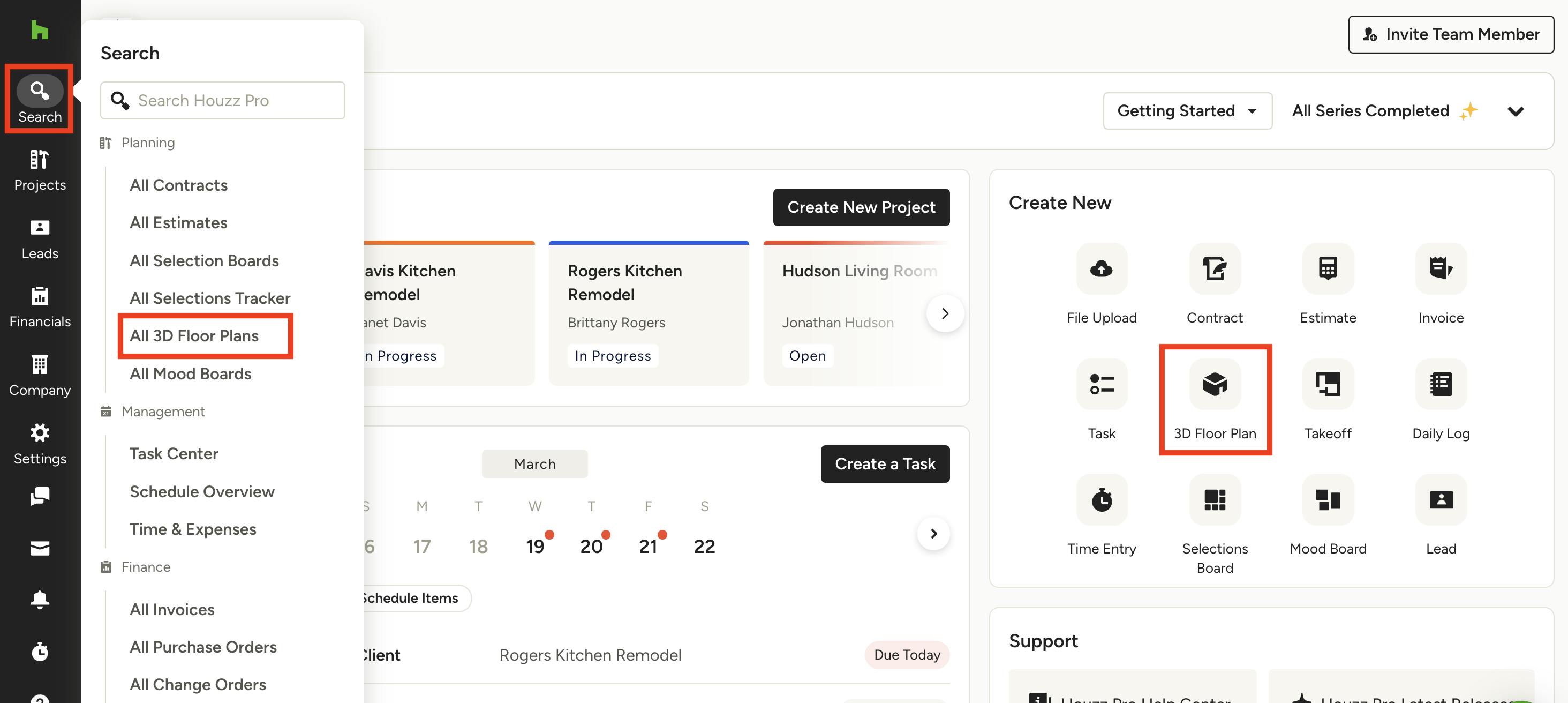

To quickly access all your 3D floor plans in one place, click the 3D Floor Plan icon in the Create New section of the homepage. This will bring you to the All 3D Floor Plans page — you can also access this page by clicking Search in your left navigation, then selecting All 3D Floor Plans.

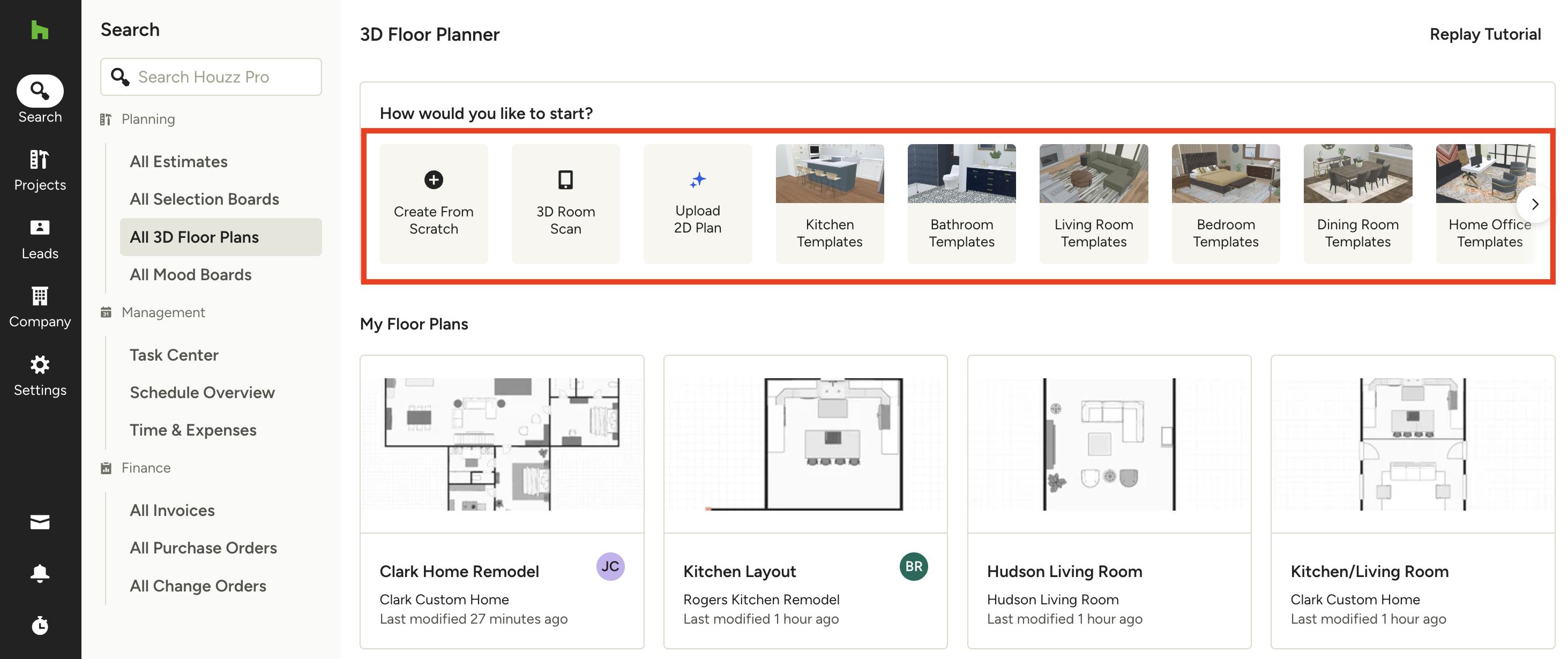

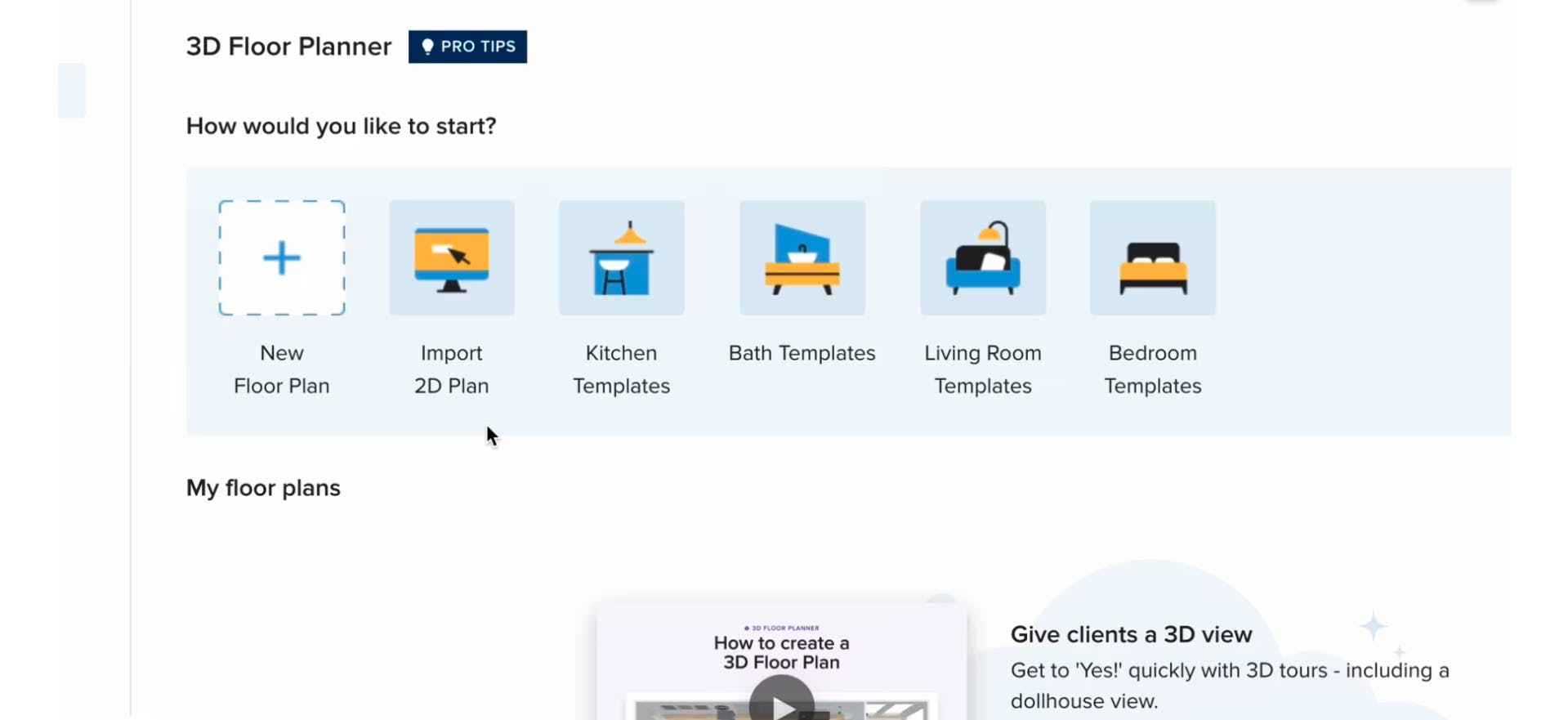

On both the All 3D Floor Plans page and the project/lead 3D floor plan page, you can view all existing 3D plans, as well as create a new 3D plan. When you are starting a new 3D plan, you can:

1. Create from scratch
2. Create from a pre-built template
3. Scan rooms on the Houzz Pro app
4. Upload an existing 2D plan

Create Floor Plan from Scratch

If you prefer to completely customize all aspects of your 3D floor plan, starting from scratch might be the best option.

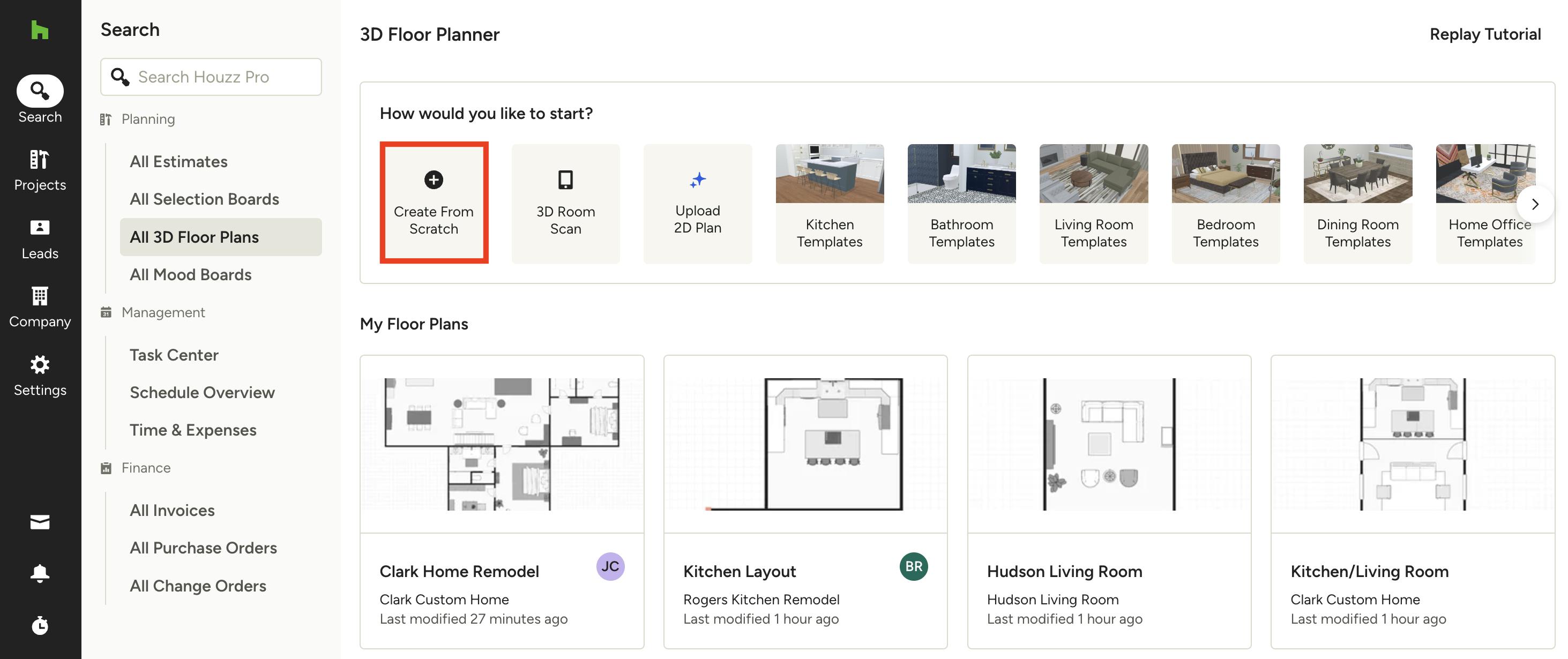

To start: Click the Create from Scratch icon at the top of the page — you can access this from the All 3D Floor Plans page, or open up the relevant project or lead, then select 3D Floor Plans from the left menu.

A new floor plan will open up in a new screen. If you are creating the floor plan from the All Floor Plans page, you will need to name the plan, select an existing lead or project (or create a new lead or project), and click Create.

Create Floor Plan from a Template

If you are short on time, you can use one of our pre-built templates to start out your 3D floor plan. It’s an easy way to get started and is still fully customizable, so you can adjust all the details later on.

We currently offer Kitchen, Bathroom, Living Room, Bedroom, Dining Room and Home Office templates.

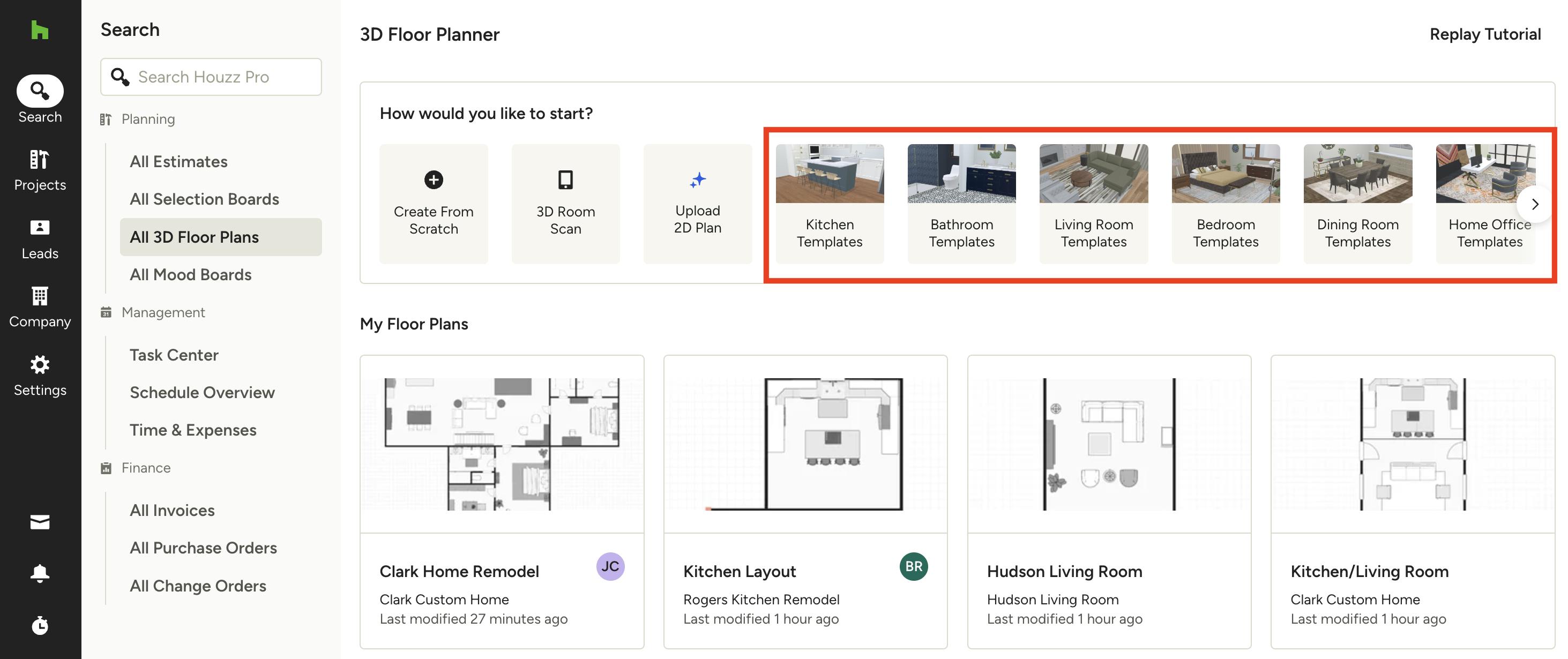

To start: Select one of our six pre-built templates at the top of the page — you can access this from the All 3D Floor Plans page, or open up the relevant project or lead, then select 3D Floor Plans from the left menu.

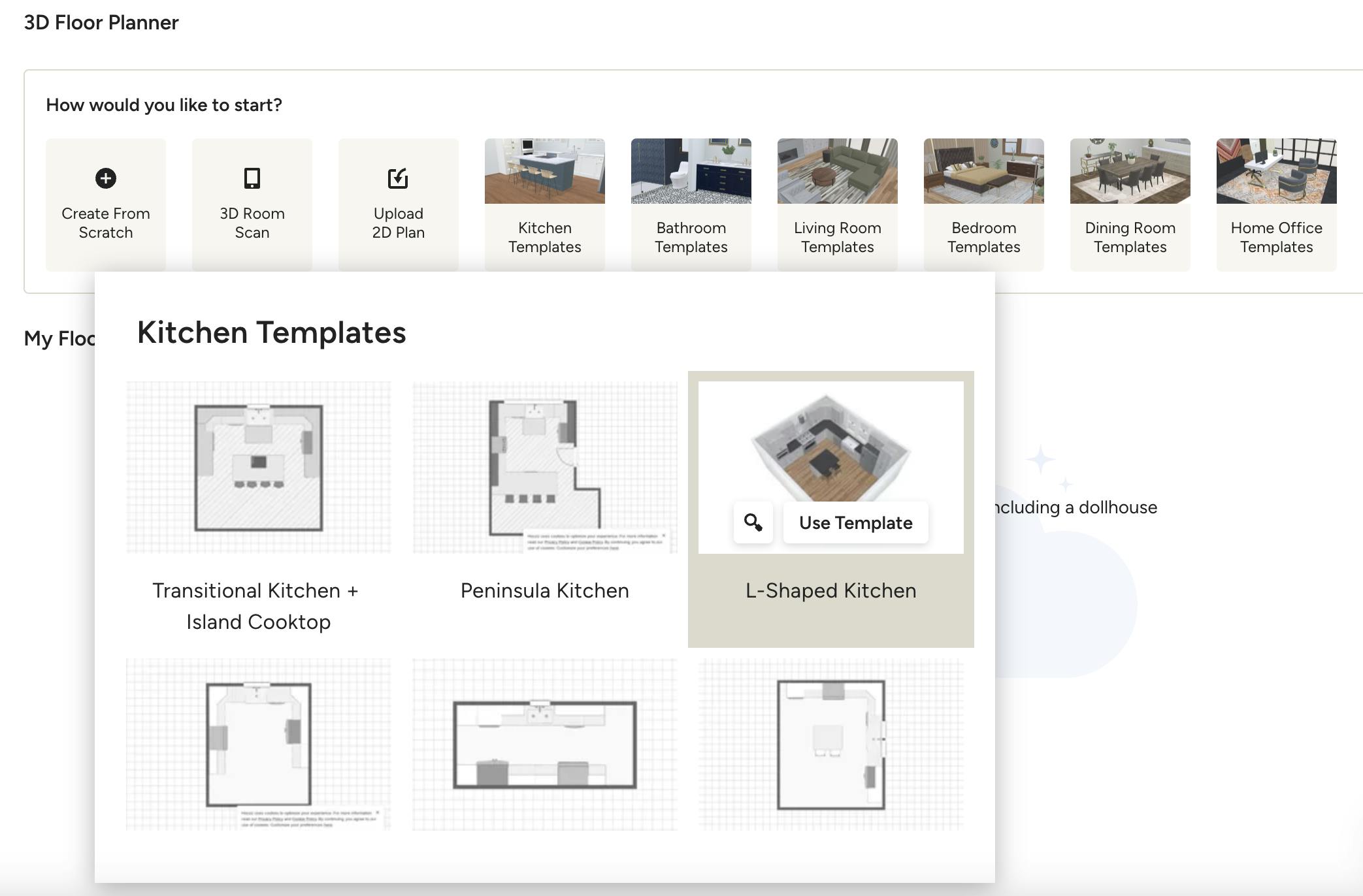

When you select the room template, you can then choose the most relevant design from 4-6 options. Before you select your template, you can preview it by clicking the magnifying glass on the design. Once you find the best fit, click the Use Template button to get started.

Scan Rooms on the Houzz Pro App

If you want a perfect match of your project space, you can quickly scan the room on the Houzz Pro app and turn that scan into a 3D floor plan.

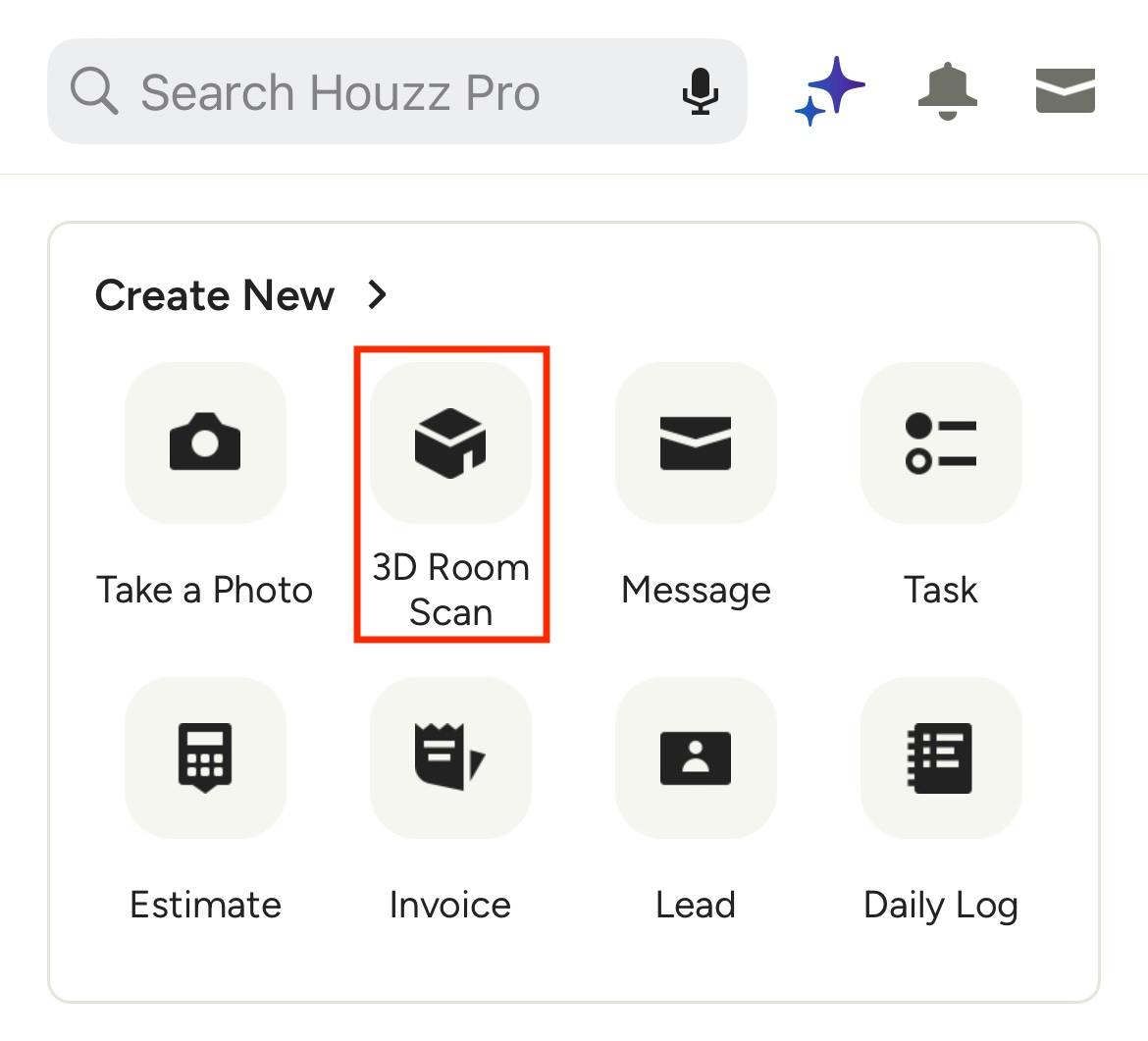

To start: Open up your Houzz Pro app. Make sure you are signed in to your Houzz Pro account. From the home page, select 3D Room Scan from the Create New menu.

Scan your room. Once the scan is complete, click Done.

Depending on your device, here are some tips and best practices for the scanning process.

How to Scan a Room Using LiDAR Technology (LiDAR device)

How to Scan a Room With the Mobile App (non-LiDAR device)

Please note: LiDAR technology is only available on an iPhone Pro 12 or newer or an iPad Pro 4th generation or newer, running at least iOS 16.

The room will then show as a 2D and 3D floor plan on your mobile device. You can rename the floor plan and add it to a project/lead (or create a new project/lead). After saving, you can go to the desktop experience and make more edits, including updating dimensions or adding walls, windows, doors and furniture.

Upload Existing 2D Plan

If you already have a 2D drawing for your project or lead, you can save a lot of time by uploading your file into Houzz Pro. You can import pdf, jpg or png files with a maximum file size of 50MB.

When uploading your 2D file, you have two options. You can either:

• Manually trace over the drawing to build out your 3D floor plan.
• Automatically create a 3D floor plan using our AI, AutoMate. (This is available for many floor plans, but not all floor plans.)

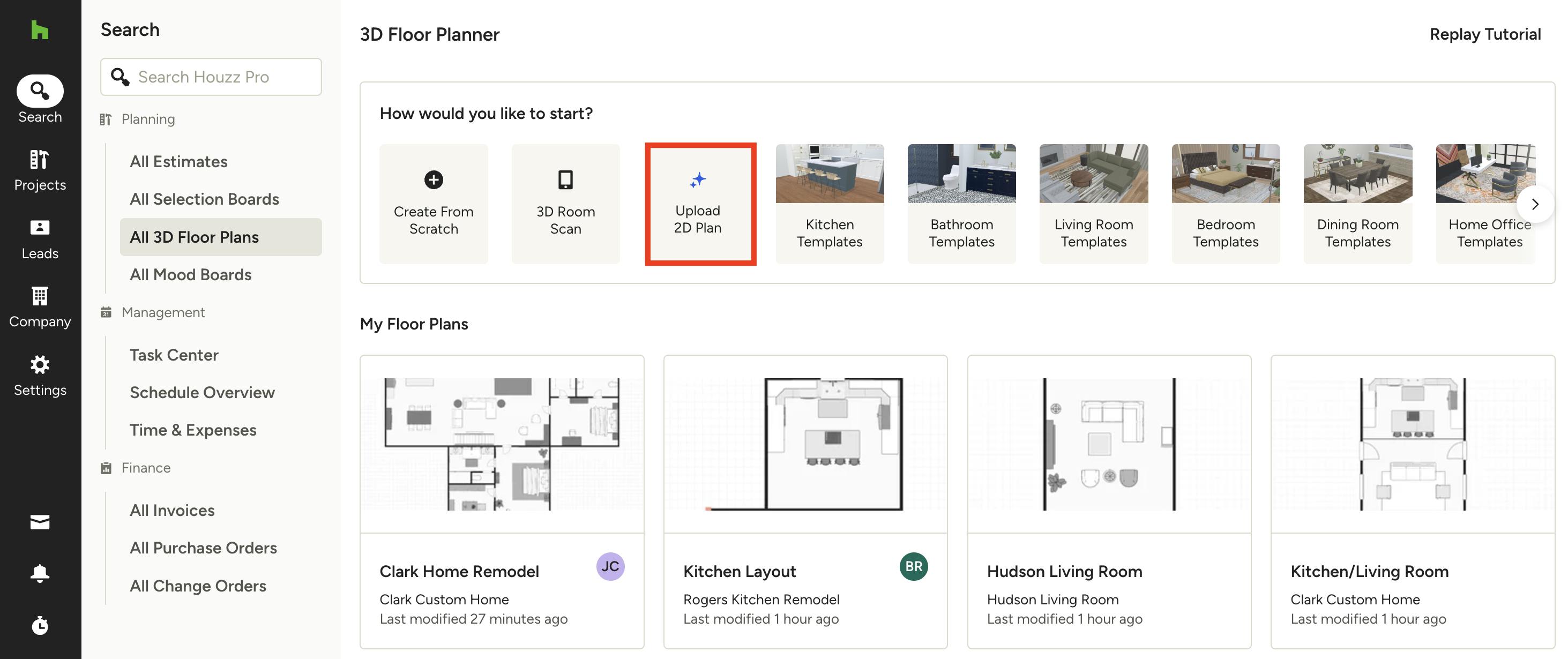

To start: Click the Upload 2D Plan icon at the top of the page — you can access this from the All 3D Floor Plans page, or open up the relevant project or lead, then select 3D Floor Plans from the left menu.

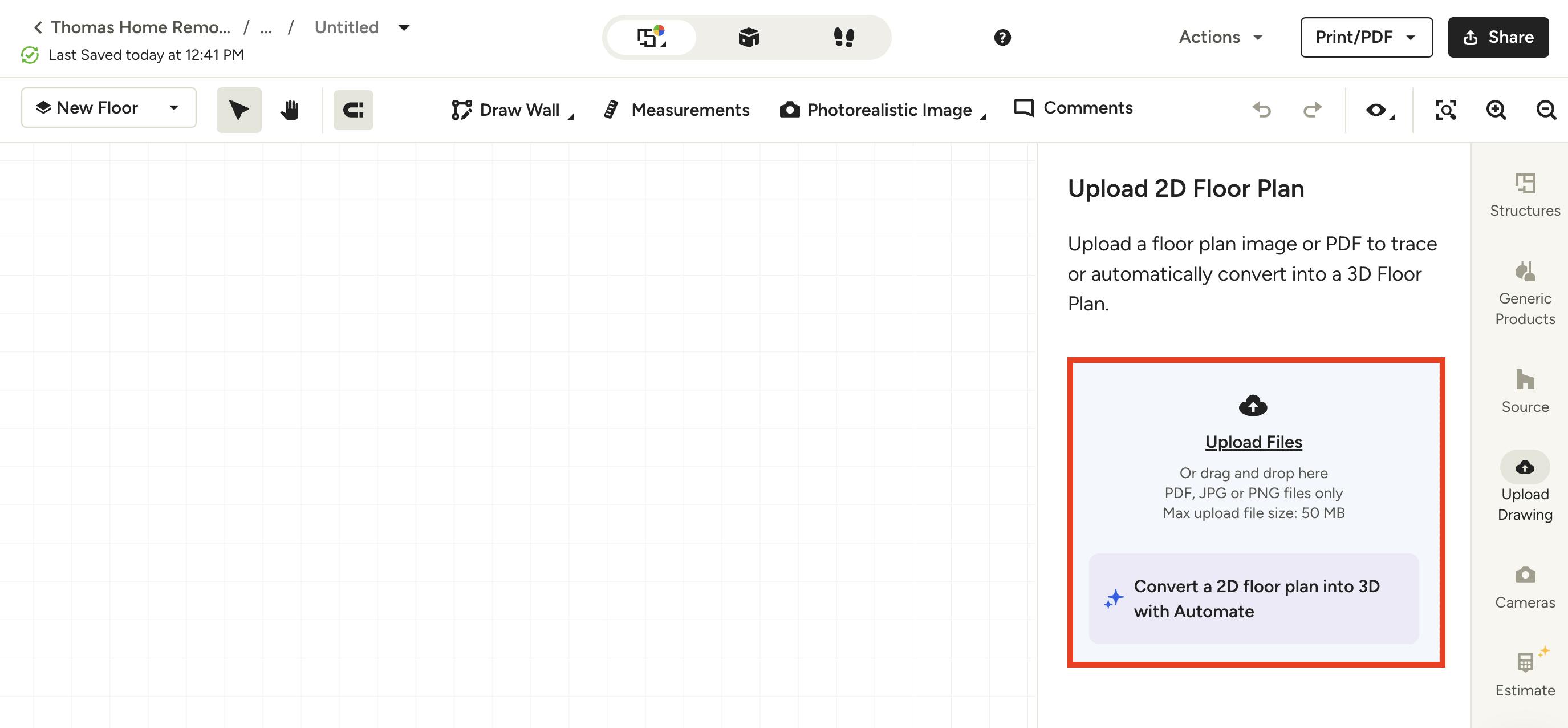

A new floor plan will open up in a new screen. You can then upload your file by either selecting the file from your computer, or dragging and dropping the file.

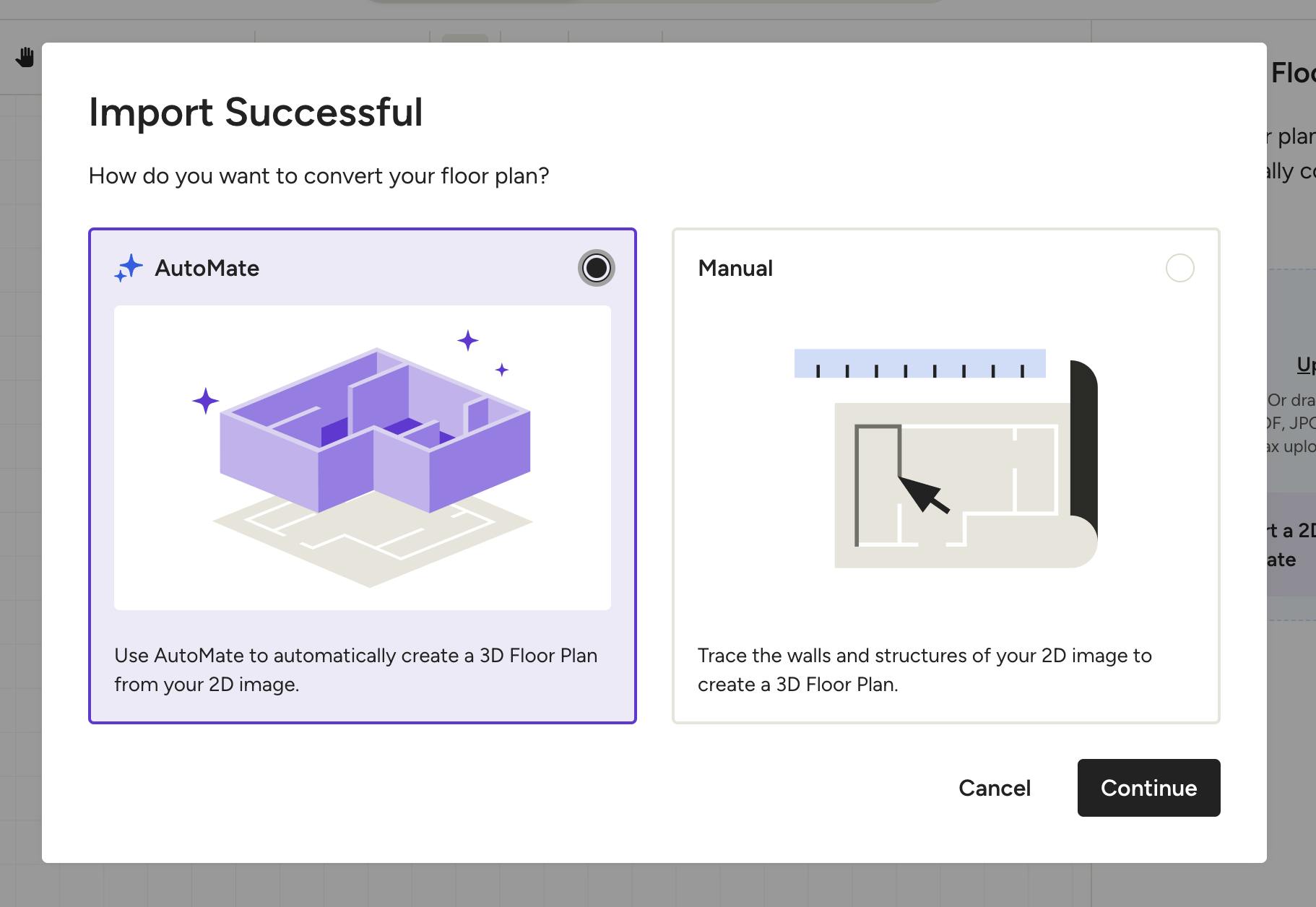

Once you upload your file, you will have the option to automatically create your floor plan using AutoMate, or manually create your floor plan.

Please Note: If AutoMate doesn't appear as an option, your file is not eligible for automatic creation and will require manual creation.

Automated Upload Process

If you select AutoMate, it's important to set the scale to ensure measurement accuracy — the more precise you are with your measurement, the more accurate your 3D floor plan will be.

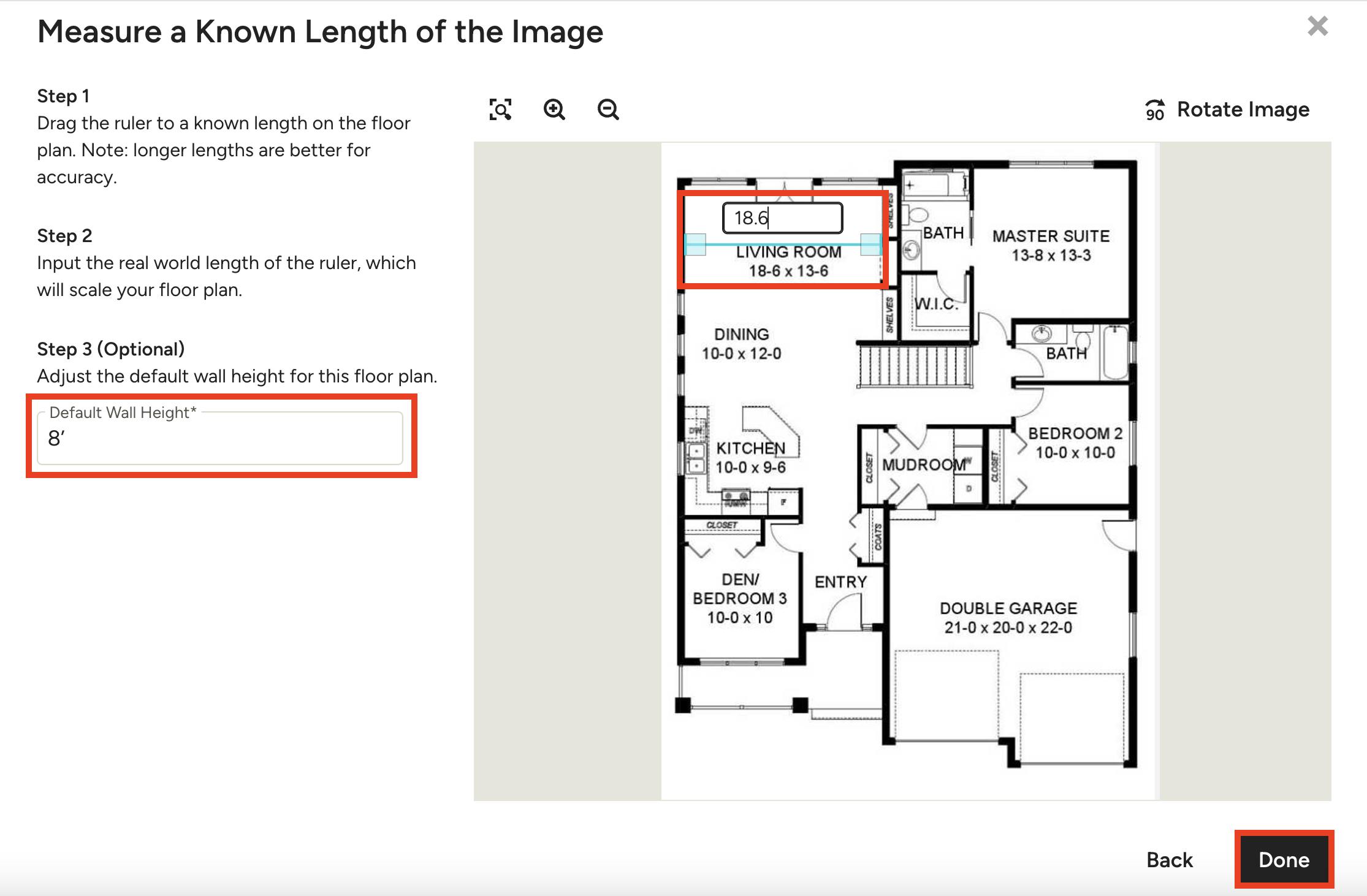

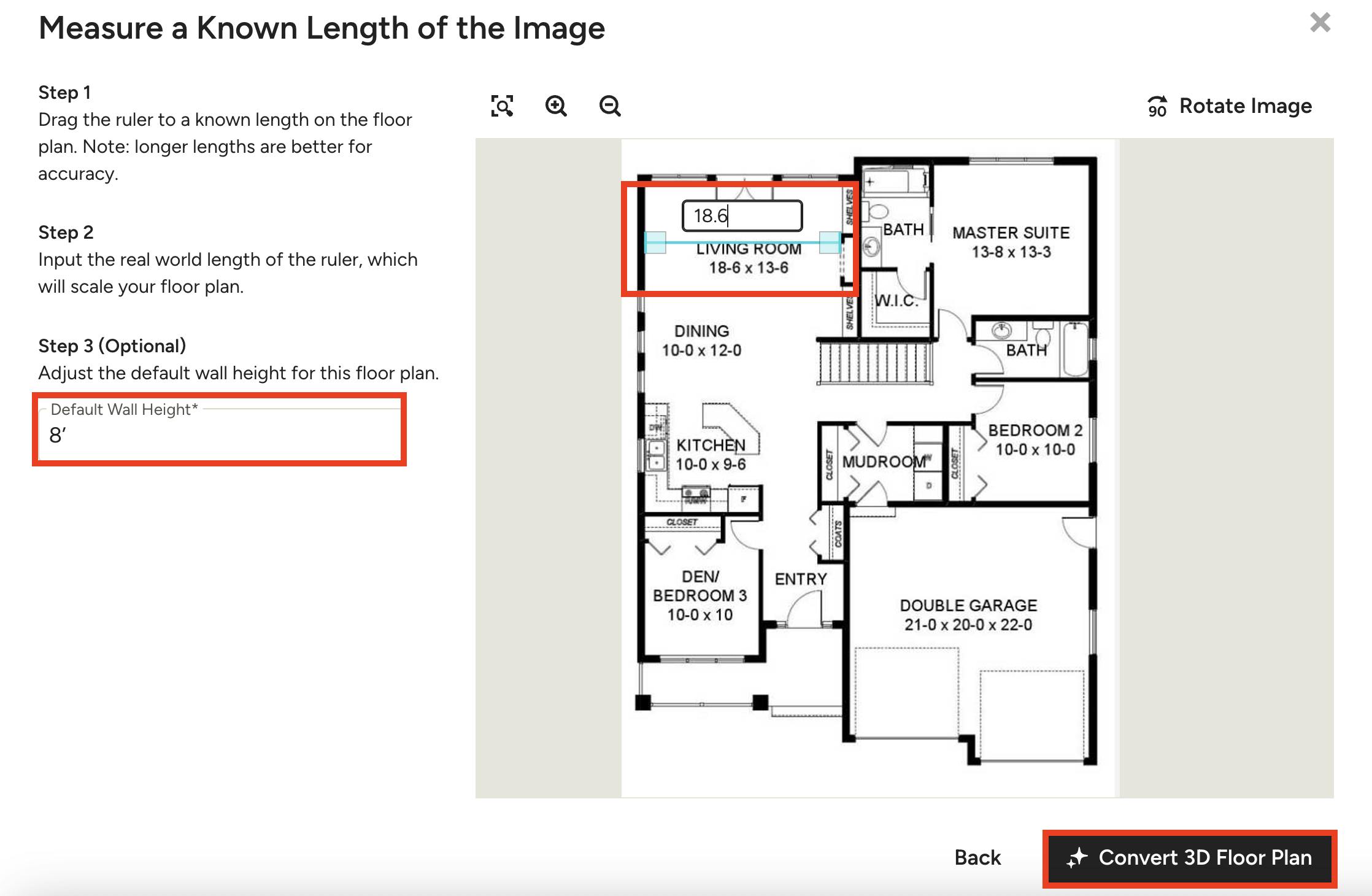

To set the correct scale, move the blue ruler end points on the floor plan image to a known length, then enter the length in the Length box. If you make a mistake during the upload process, you can always adjust later on.

Input the default wall height for your plan on the left. Once complete, select Convert 3D Floor Plan.

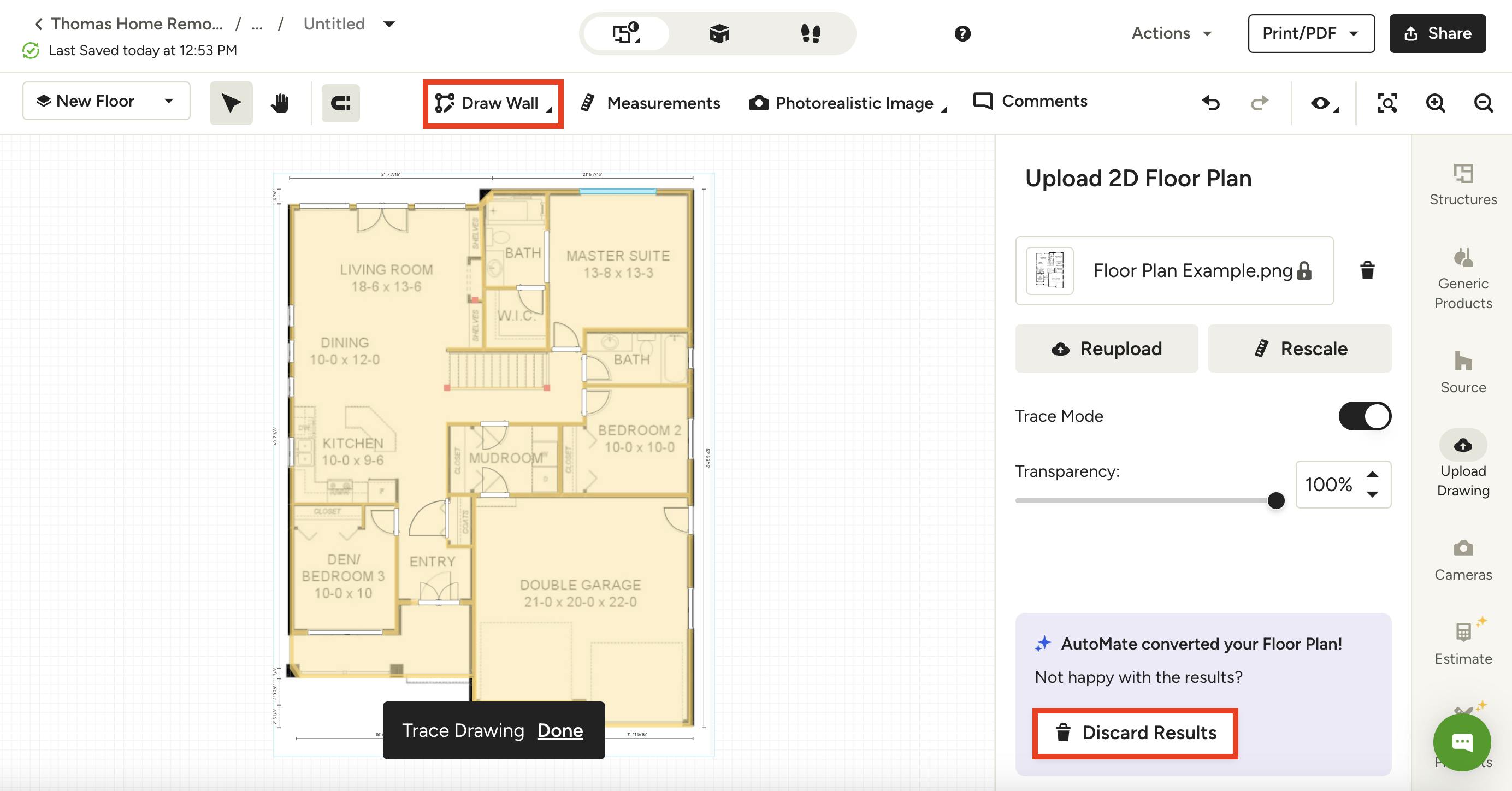

Your 3D floor plan is now complete! Be sure to check your floor plan and make modifications using the Draw Wall tool in your toolbar to ensure accuracy.

If the AI-generated floor plan is not correct, select the Discard Results button to start over with the manual process instead.

Manual Upload Process

If you select Manual, it's important to set the scale to ensure measurement accuracy — the more precise you are with your measurement, the more accurate your 3D floor plan will be.

To set the correct scale, move the blue ruler end points on the floor plan image to a known length, then enter the length in the Length box. If you make a mistake during the upload process, you can always adjust later on.

Input the default wall height for your plan on the left. Once complete, select Done.

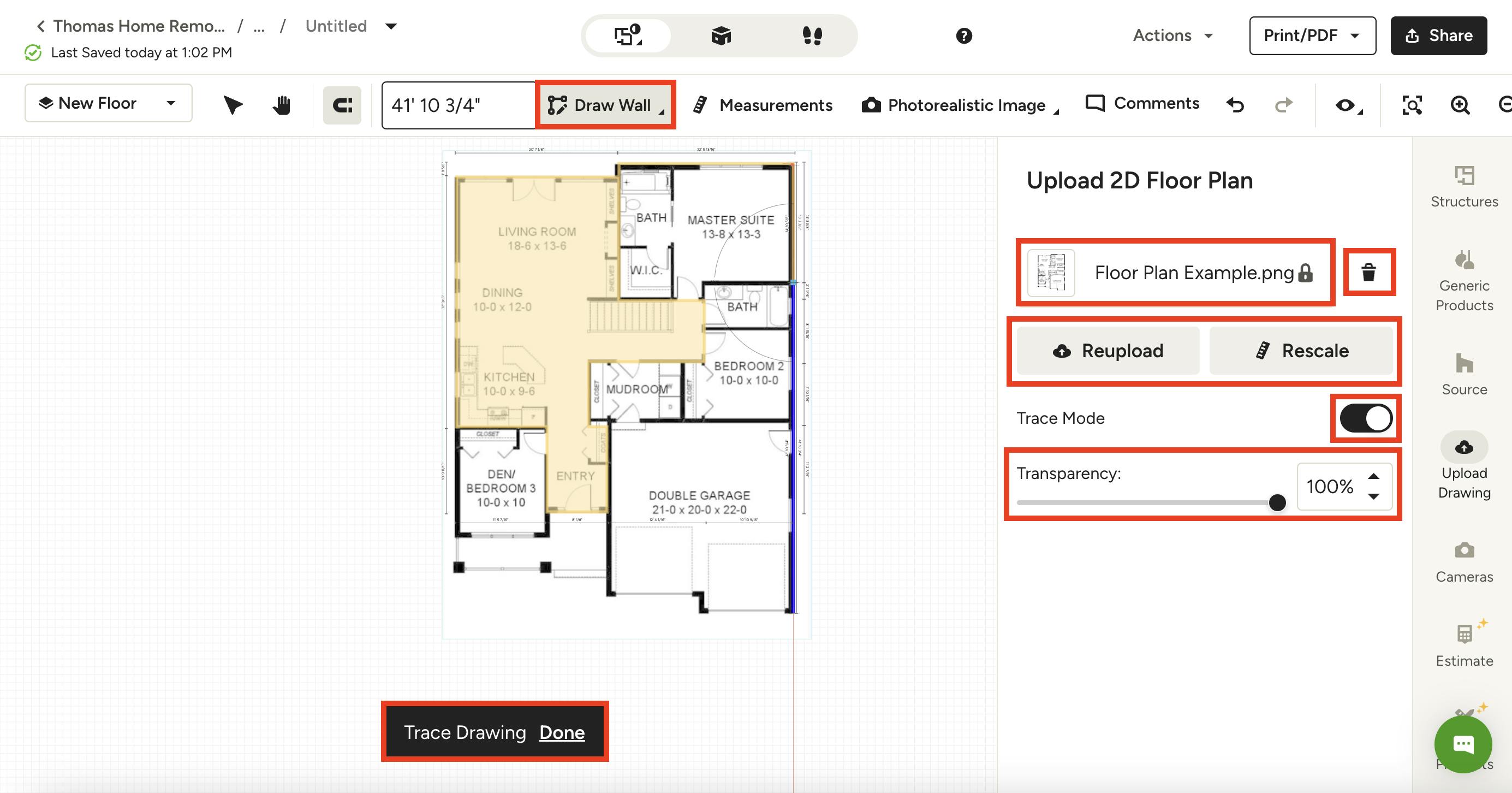

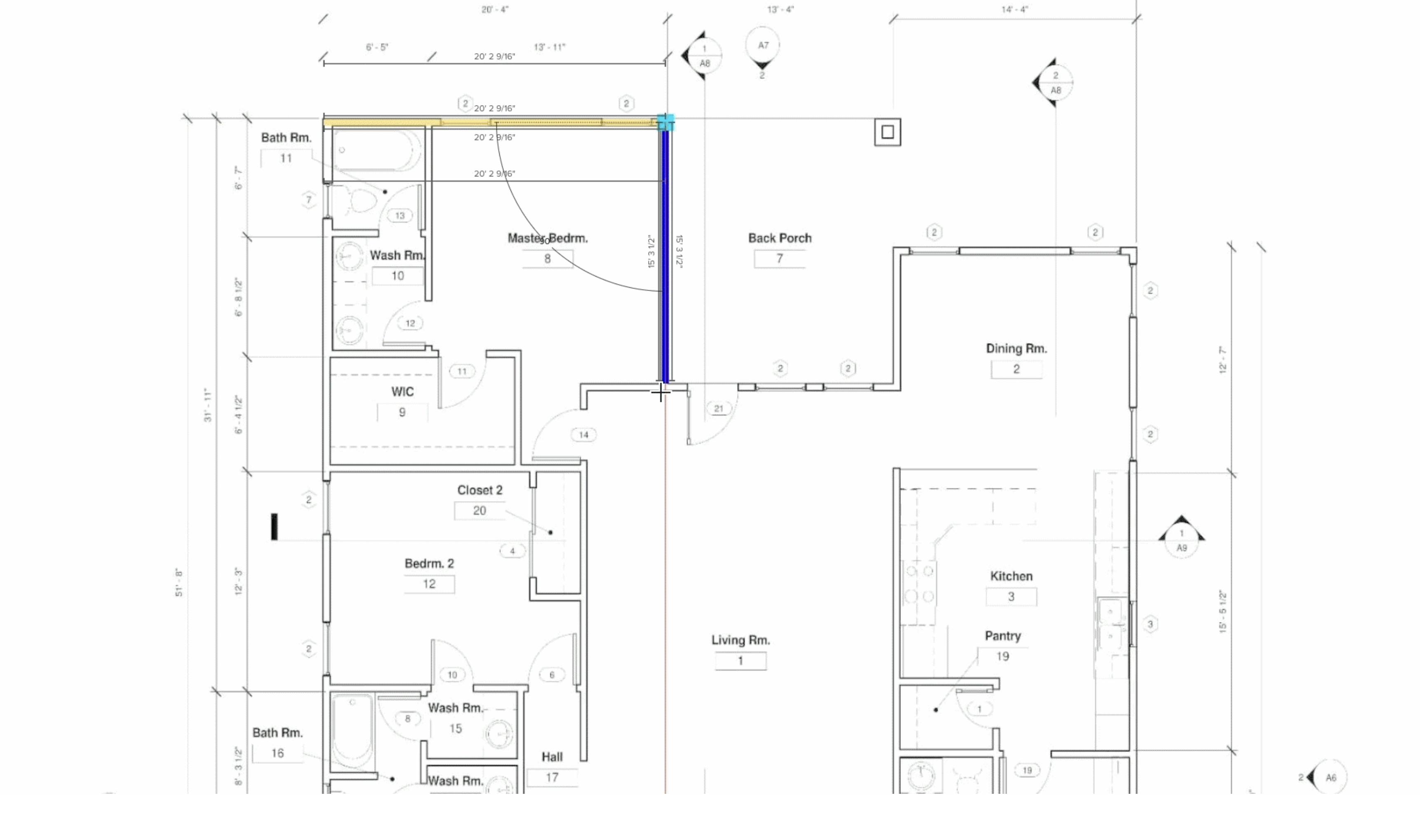

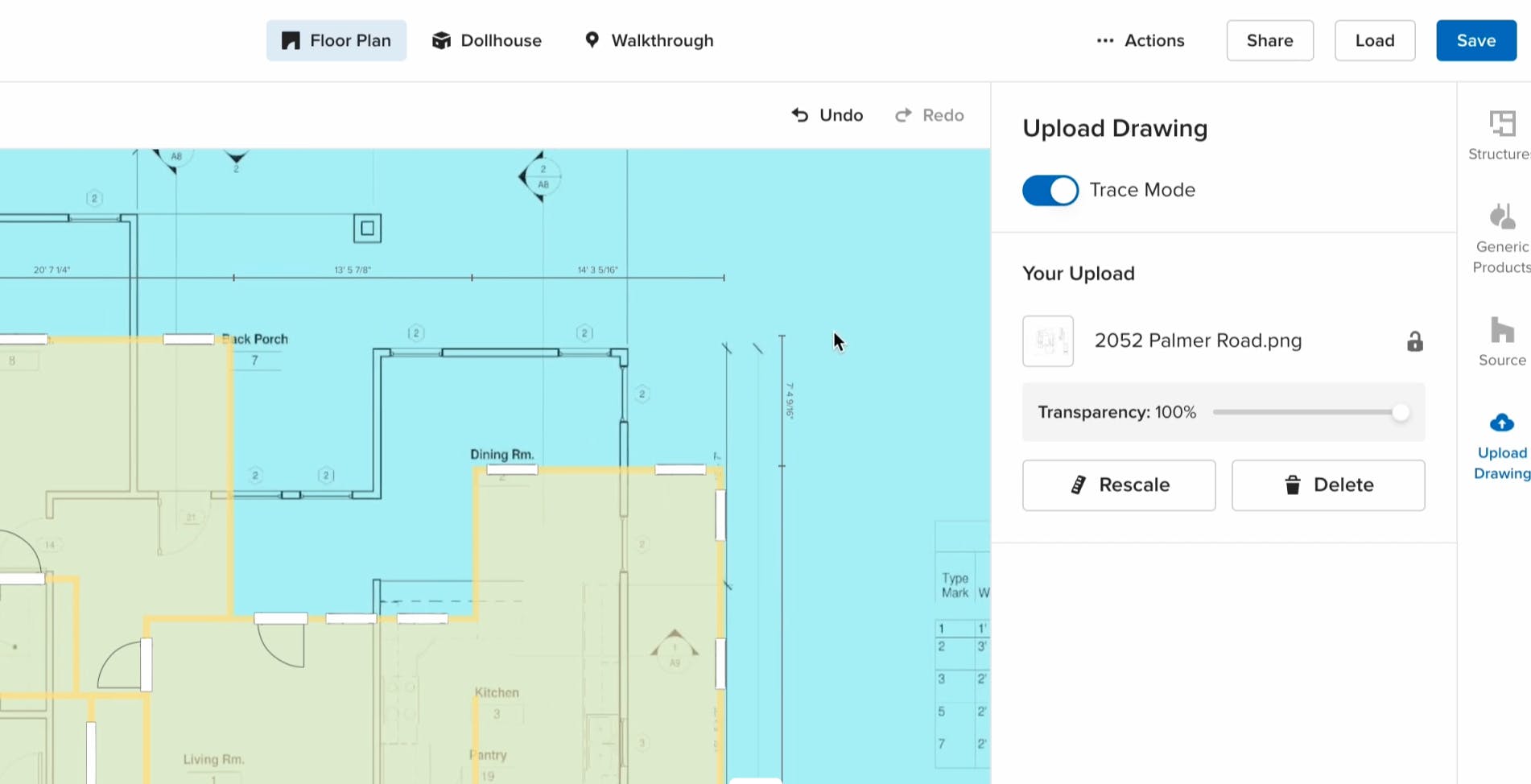

The imported plan will now be an image layer. Turn on the Trace Mode toggle on the right, and find the Draw Wall tool in your toolbar to trace your imported plan and create a 3D version.

Some tips:

• Make sure that the walls are fully traced and rooms are fully enclosed before adding doors and windows. If you stop your walls at the door openings when tracing, the floors will not be correctly captured.
• For easier tracing, you can adjust the transparency of your uploaded plan image using the “transparency” slider.
• If you need to rescale your floor plan, just click the Rescale button to adjust.
• If your floor plan is not correct, select the Reupload button to try another file, or select the trash icon to delete the file completely.

When you are done tracing your floor plan, click Done or turn off the Trace Mode toggle. Click the lock icon to move your uploaded file out of the way so you can begin adding architectural details, flooring, furniture and more.

Customize Your Floor Plan

Once you've created your floor plan, you can now start the customization process by adjusting dimensions and adding walls, floors, windows, doors and furniture.

Build Walls

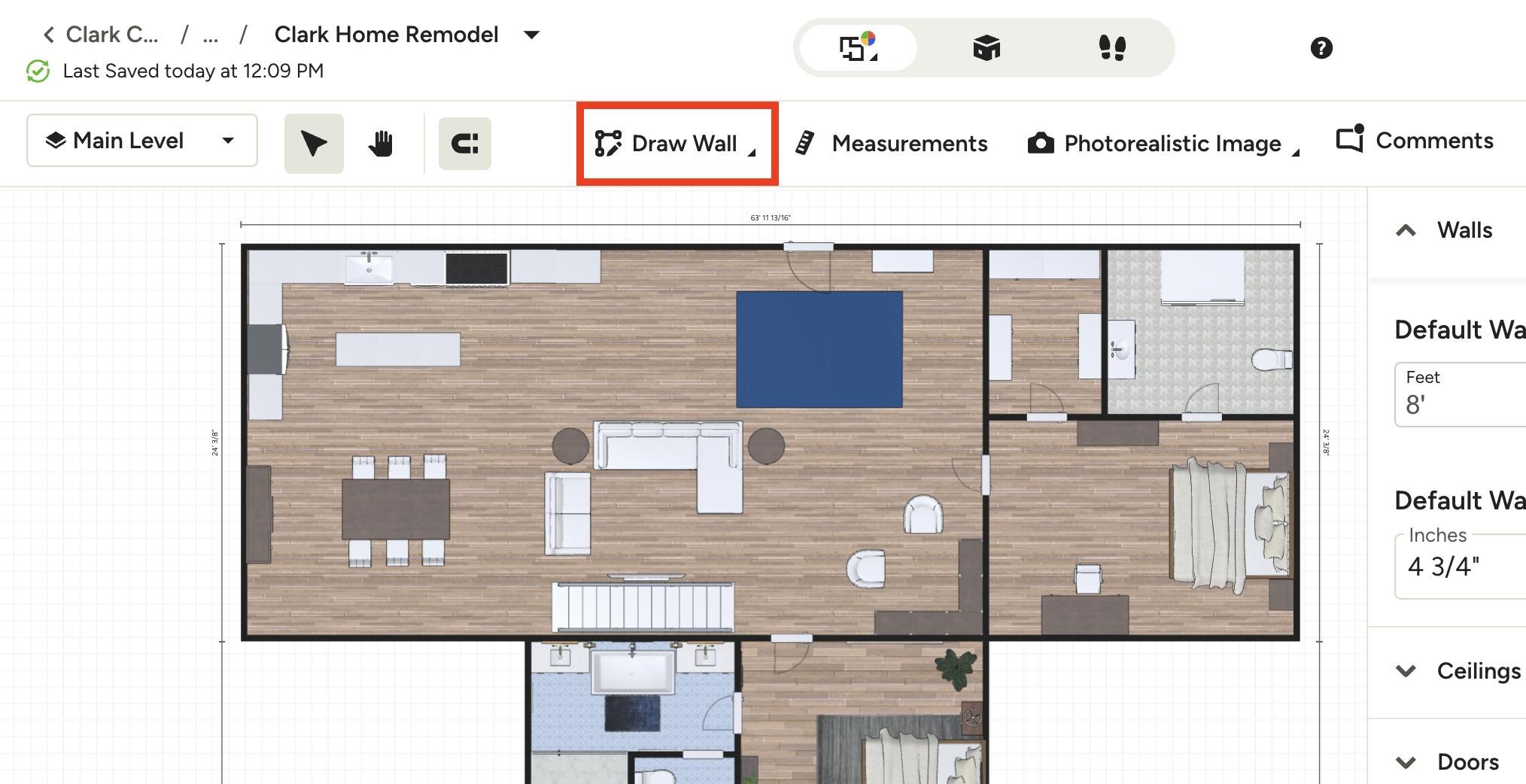

To start building out your walls, use the Draw Wall tool in the toolbar at the top of your screen. How to Create Accurate Wall Lengths provides more details on how to build out the walls for your project or lead. Switch to Dollhouse mode to select paint colors and finishes for your walls.

Add Flooring

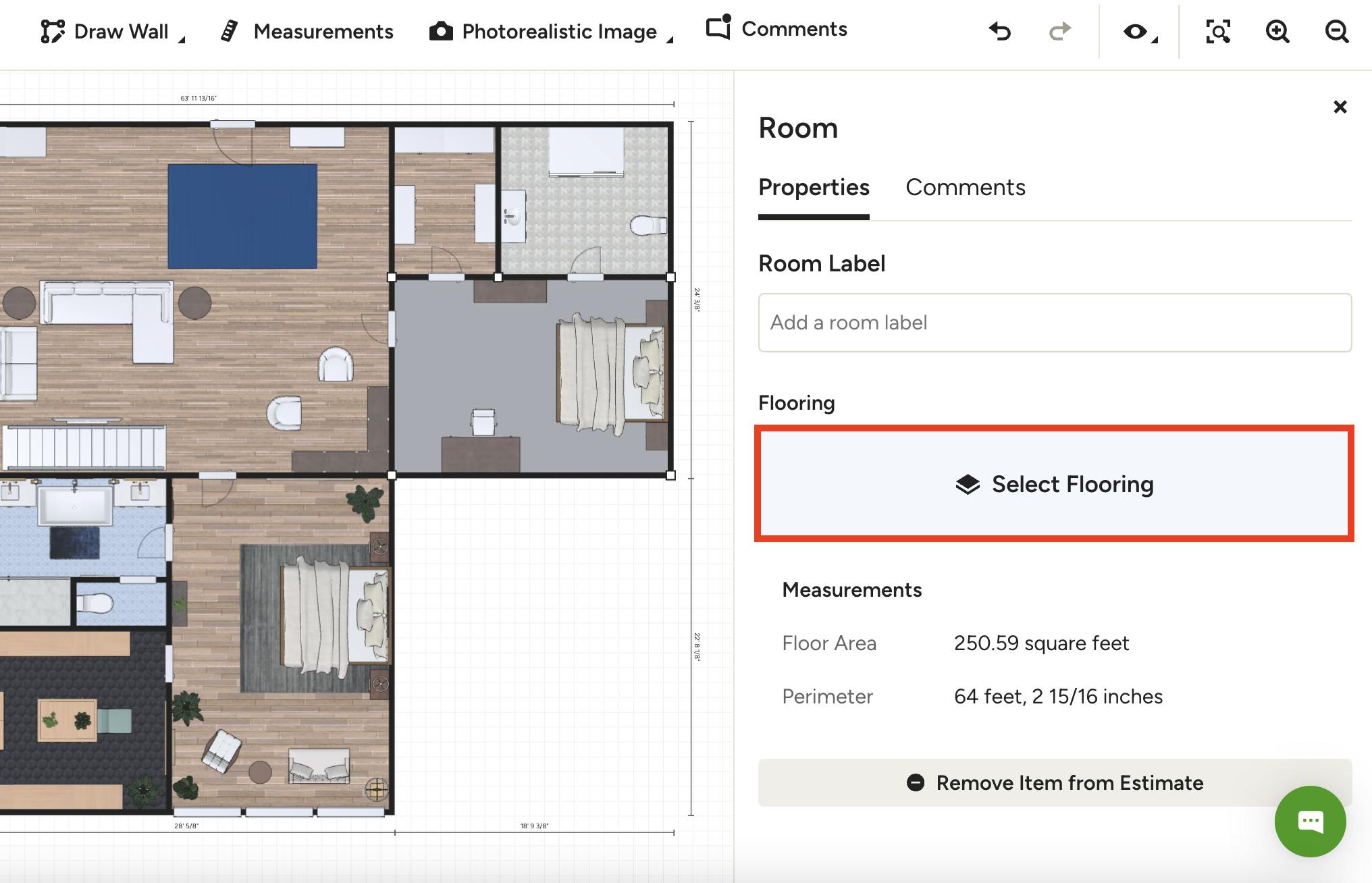

When the room is fully enclosed with walls, click the floor of your space to add flooring. How to Add Flooring to Your 3D Floor Plans provides details on how to adjust the floor materials, including how to handle multiple flooring options in open concept floor plans.

Add/Adjust Structures

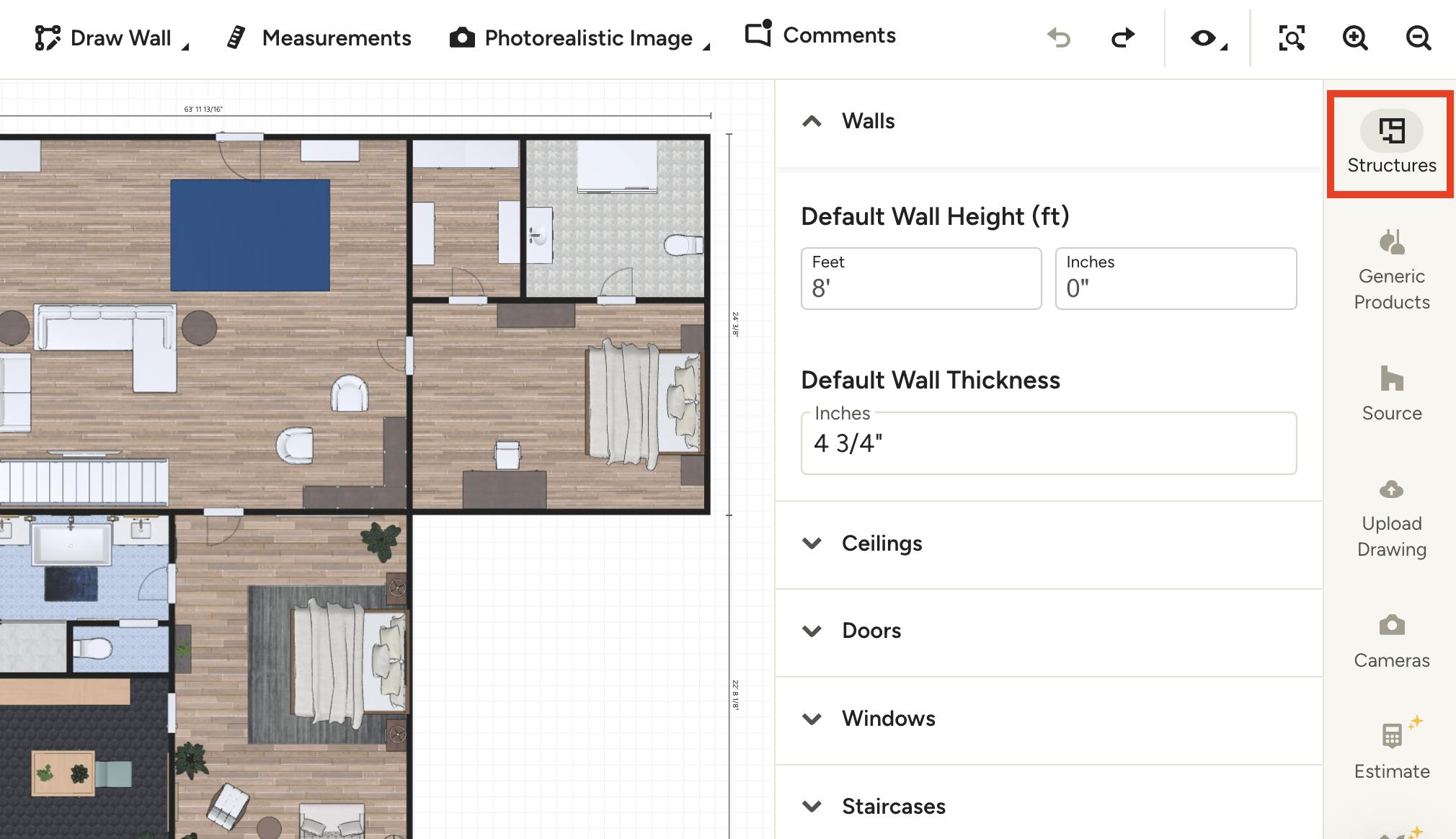

Select Structures from the right-hand menu to adjust wall heights, ceilings and add doors, windows, staircases and other architectural details.

Add Generic Products

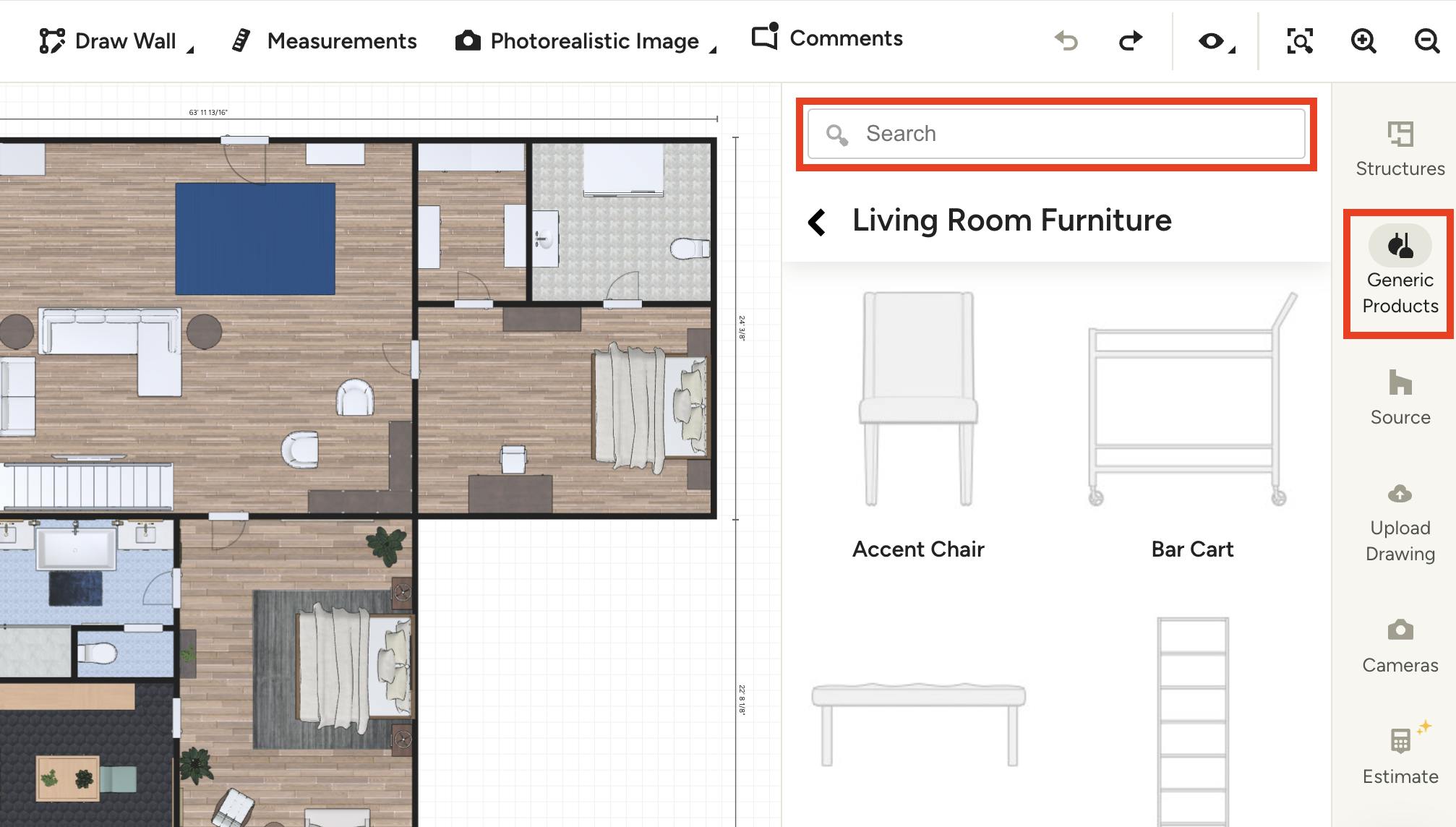

When you're ready to fill your space with furniture, select the Generic Products tab to browse your options. You can either use the search bar at the top to look for a specific product or browse by category. How to Line Up Floor Plan Items provides more details on properly placing furniture.

Source Houzz Products

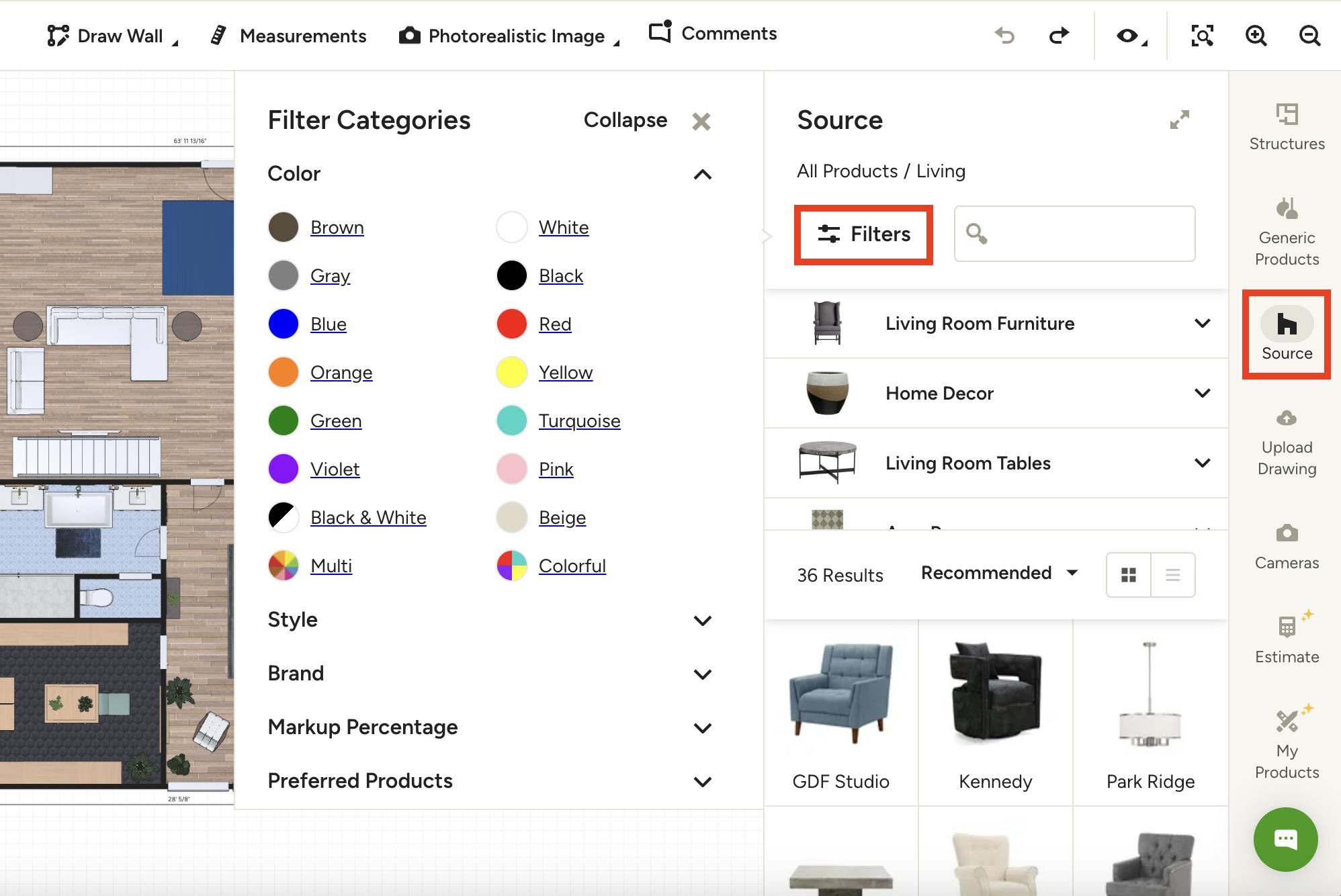

If you prefer to use products you can buy on Houzz, select the Source tab. This will allow you to browse thousands of 3D products we sell on Houzz and input them into your design. Narrow down by product category and use the filters to quickly find the products you need.

Add 2D Product to 3D Floor Plan

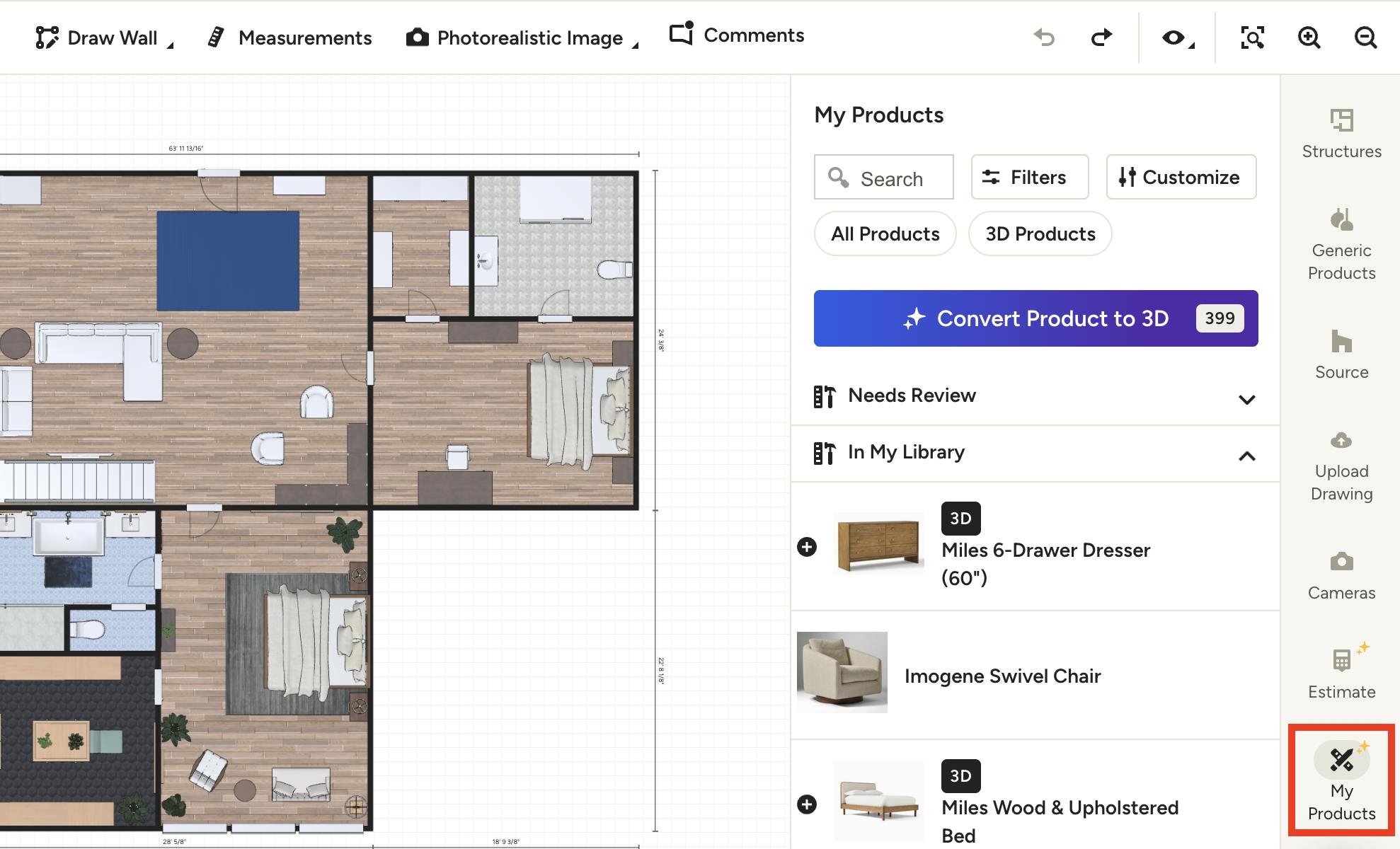

If you have a specific product you would like to use in your 3D floor plan, you can turn 2D furniture or decorative objects into a 3D model using the My Products tab. This allows you to showcase the exact product you want to use in your design, instead of something similar.

For best results, you should use this feature on furniture or decorative options — not windows, doors, material finishes, rugs, paintings or light fixtures. Your Houzz Pro plan will determine how many products you can convert each month. To learn more, read How to Add a 2D Product to Your 3D Floor Plan.

View Your Floor Plan

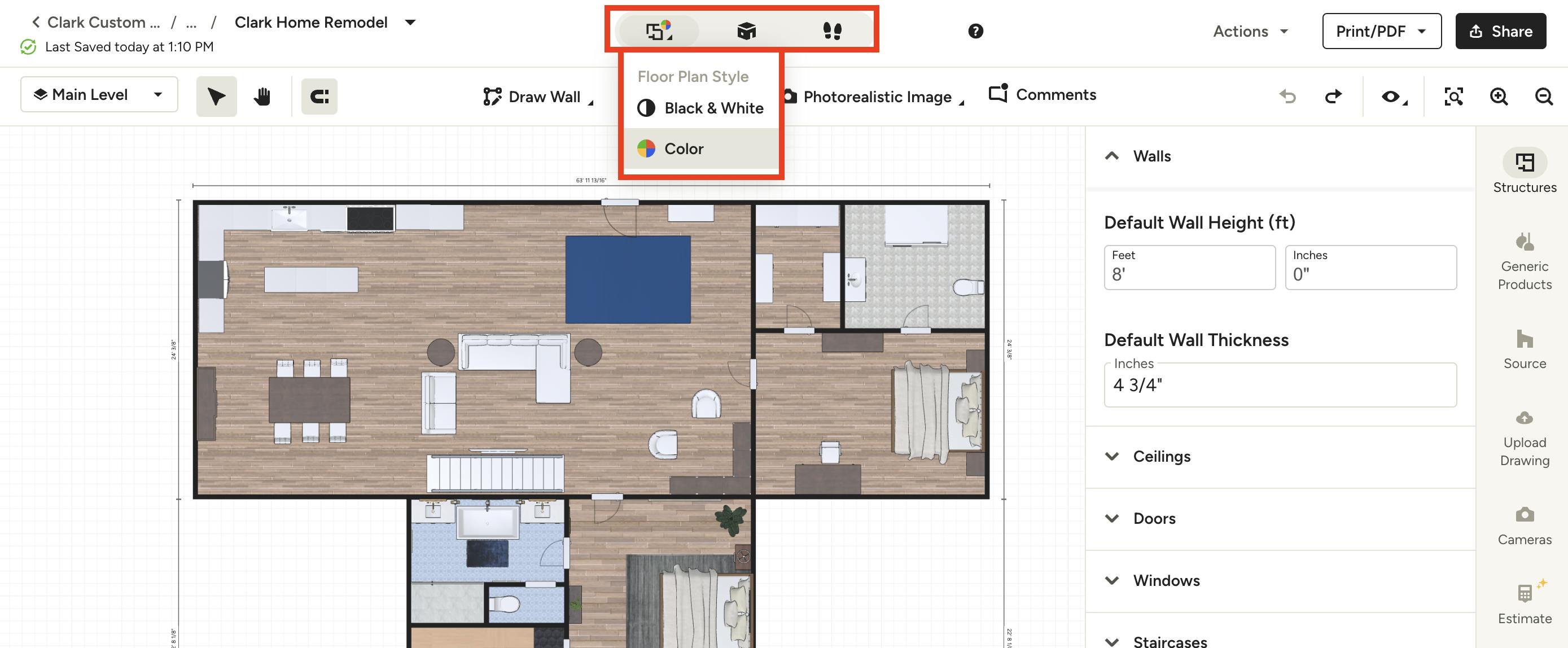

As you work on your floor plan, there are several different viewing perspectives you can use. At the top of your screen, you will see three viewing modes: Floor Plan, Dollhouse and Walkthrough.

1. Floor Plan: This is a 2D mode like a blueprint. You can view this mode in both black and white or color. To change, just select your preferred option from the dropdown next to Floor Plan.
2. Dollhouse: This shows you the room from a 3D perspective.
3. Walkthrough: This shows you the room as if you're standing in it.

In all of these modes, you can navigate throughout the room using left-click to rotate or right-click to adjust the position.

Share Your Floor Plan

Once you've crafted the perfect design and layout, it's easy to share your floor plan, receive feedback, and make decisions with clients to move your project forward.

How to Share and Collaborate on a 3D Floor Plan provides step-by-step details on how to share with clients, add comments and more.
