Black Countertop Support Bracket, T-Bracket, 18"
Black Countertop Support Bracket, T-Bracket, 18"
  • Product Description
  • Product Specifications
  • Shipping and Returns
Listing is for one bracket; hardware not included

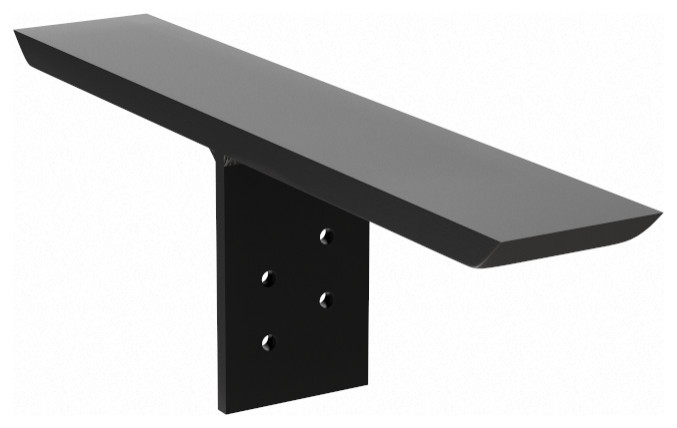

The T-Bracket Hidden Granite Bracket is the bracket which will use the weight of the granite to support your big granite countertop overhang on an island. This Bracket lies across the top of the cabinet, half of the bracket will be inside of the cabinet and the other half will be exposed under the overhang. The vertical angle drops down on the inside back of the cabinets and is used to hold the T- Bracket in place until the granite is put in place. This will give your granite the appearance of floating once installed.

The T-Bracket has a 45 degree beveled edge on both the front and the back ends of the brackets for added safety. T-Brackets do not have mounting holes in the top of the bracket itself, the mounting holes are on the vertical tang. Brackets are actually sized in length tip to tip, therefore an 18 inch bracket is 18 inches tip to tip on the horizontal piece, and the vertical piece will be in the center of the horizontal piece.

The Hidden Granite Countertop Support T-Bracket is made of 1/2 inch thick by 2 1/2 inch wide American steel on the horizontal pierce. The vertical piece is 1/4 inch X 2-1/2 inch by 4 inch in length. Please Note: The vertical piece [tang] is placed in the center of the horizontal piece. Therefore, if you have a 10 inch bracket the vertical piece [tang] is directly in the center of the bracket, giving you 5 inches on each side of the T-Bracket. Meaning there will be 5 inches inside the cabinet and 5 inches on your overhang.

Our Granite Brackets are protected with a premium anti-rust black paint.

To Determine Length:

Example: 12 inch overhang, minus 3 inch setback from outer edge, equals 9 inches, plus 9 inches for inside cabinet, equals 18" T-Bracket. The vertical piece will be placed in the center. [Note, if the back wall of the cabinet is thicker, you may need to add extra inches for the thickness]. Please Note: The vertical piece [tang] is placed in the center of the horizontal piece. Therefore, if you have a 10 inch bracket the vertical piece [tang] is directly in the center of the bracket, giving you 5 inches on each side of the T-Bracket. Meaning there will be 5 inches inside the cabinet and 5 inches on your overhang.
  • How many brackets will you need?
  • We recommend spacing your brackets 20 inches apart for maximum granite protection; however, you can go up to 22 inches apart.
  • The Hidden T-Brackets dimensions are as follows for horizontal piece:
  • Length: see listing
  • Width: 2 1/2 inches
  • Thickness: 1/2 inch
  • Hole Diameter: 1/4 inch

Bracket Features:

  • Virtually invisible, gives your granite countertop the appearance of floating.
  • No corbels needed so you do not knock your knees
  • Easy to install
  • Made of 1/2 inch thick by 2 1/2 inch wide American steel
  • Bracket end has beveled edge for safety.
  • Screw holes are staggered on the vertical piece
  • Made in the USA
