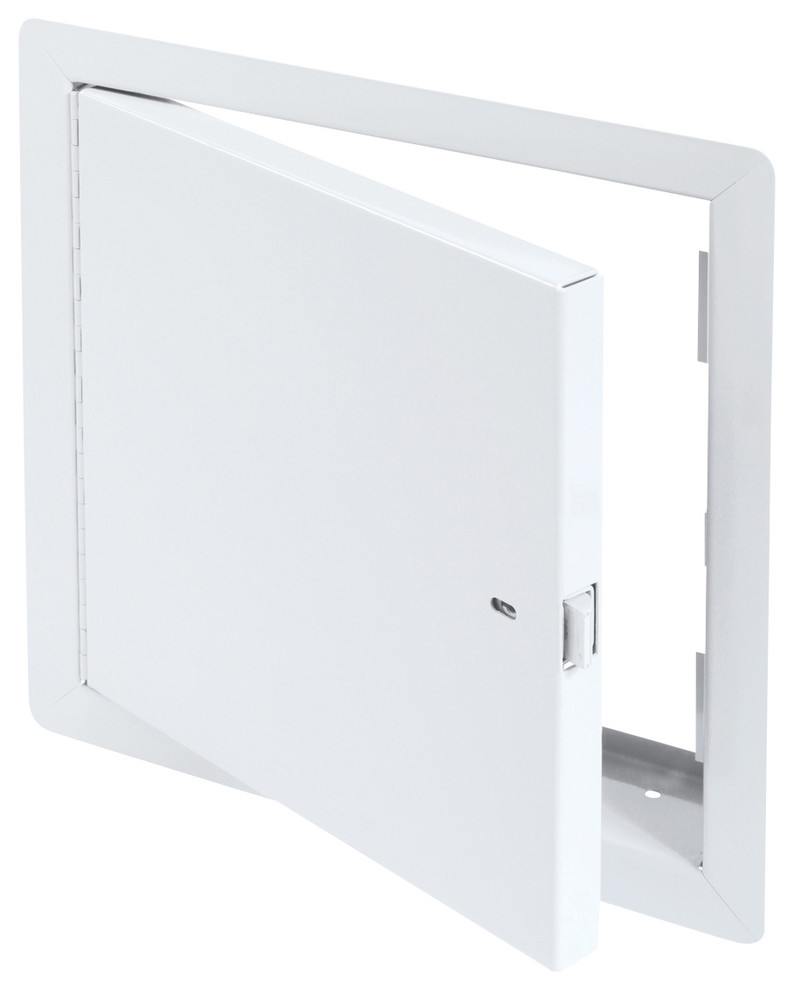

8" x 8" - Fire Rated Un-Insulated Access Door with Flange. The BA-PFN Wall access Hatch is not insulated and can only be used on fire rated walls. It comes with a 1" flange for an easy flush installation on any type of surface material. As per UL standards, once the installation is complete and the provided springs installed, this door will be self closing and self locking. It should not be used in situations where protection against temperature elevation is required. The largest fire rated PFN door available is: (36" x 36" ). BA-PFN fire rated access door specifications, Submittal Sheet -

• Material: 16 gauge cold rolled steel frame and 20 gauge galvanneal steel door
• Hinge: Continuous piano hinge

Lock / latch: Self latching tool-key operated slam latch and/or ring operated slam latch, both included Inside panel release: Included on all slam latch fire doors Automatic panel closer: Standard on all doors

• Finish: DuPont high quality white powder coat

Packaging: For installation in vertical wall assemblies only. 2 hour fire barrier, rating 1 frac12 hours. Access/Door Frame Assembly (uninsulated) for installation in vertical wall assemblies. Maximum door size of: 36" x 36". Standards listed: NFPA 252-2003, UL 10b, UL-555, CAN/ULC S112 M90-R2001, CAN/ULC S104-10. MEA # 507-06-M Fire rated by Intertek - Warnock Hersey
