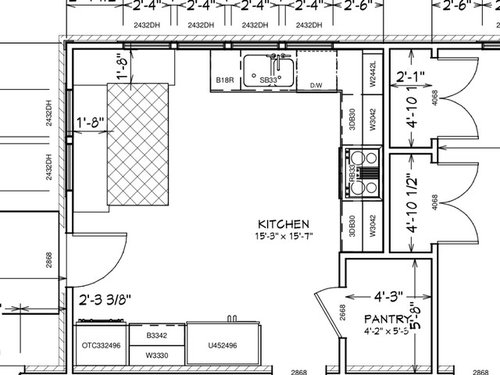

Get a piece of paper and draw. Make the l-shape for the sink to pantry, take off the pantry wall that sticks into the kitchen. Leave the rest of the pantry. We'll use that space. Here is one idea cause I see a few ways. If you have questions or want a 2nd, 3rd, 4th idea....let me know. But I'm not always on here. Going off where everyone above was going...here is the general idea. Again, get some graph paper and draw while you read it. It will make more sense then just trying to see it in your head while reading it. I'd be happy to help further g.em at USA .com Or just let me know you want me to post again.

Make the cabinet to the right of the sink a end shelf that is 9" wide, place the 33" sink, the dishwasher. Place a 42" blind (and add 3" away from wall that countertop covers). Place a blind pull-out in that cabinet so that the shelves come out and you aren't digging into it. Turn the corner, place a 3" filler up against the blind cabinet, then a 9" tray divider cabinet, a 30" oven base with the range cooktop over the oven/microwave base, then a 9" pull out base then the frig should fit just hitting where the pantry wall was jotting out. Place the panels on both sides of the frig.

Place inside the cove of the pantry wall still facing the same direction as the frigerator - place two 33" pantry cabinets. Place wall cabinets on the back of the cooktop wall where applicable. Frig cabinet above frig . . . You can place a corner wall 27" in that corner. I'd add glass. Then place two 9" above the 9" bases. Or just place a 36" width cabinet, a hood, then and 9" wide cabinet.

Across from the 9" base that is left of the frigerator, place across from it another 30" oven base cabinet facing the frig/oven/cooktop wall. On the right side you'll have 42.25" walk way from the sink and the front of the oven will be 45" walk way from the other base oven/cooktop/frig side. Turn the islands corner and butt up against it place a 30" microwave base cabinet facing the general direction of the OLD frig. Turn the corner - again and put a 24" wide x 12" deep cabinet (butt this up against the microwave cabinet/second oven base if you put the microwave under the range) Next to this 12" is a 9" vanity x 18" deep and it's butt up against the oven base. (If you are drawing it - you'll see it.) and turn the corner and facing the sink/windows will be a 18" (double trash) left side is touching the butt of the original oven base we place in the island.

Remove the wall behind the OLD frig and OLD double oven cabinet.

OY is it late but I hope that helps.
