Sharp microwave 1214ty

5 years ago

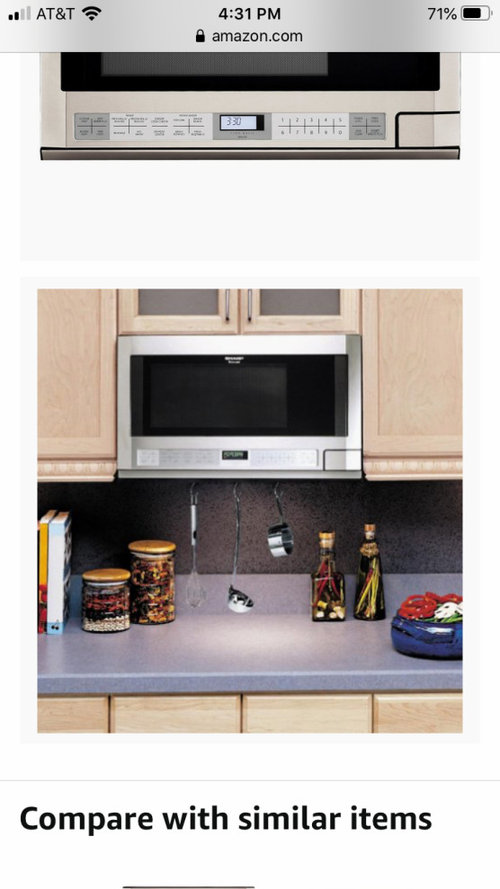

Anyone own this over the counter microwave. There has been a lot of talk about it on here but I’m looking for some specifics. I would love to give it a build it look by having it look flush with the cabinets.

Here are my questions:

1. If I want the microwave flush with cabinets, what depth does the cabinet need to be? the depth of the microwave is 15 9/16” but I assume if you hang it on the bracket it might stick out more.

2. if it’s completely flush with cabinets, does there have to be space around it for the door to open?

3. If I go the route of plan B to only have the door stick out, what depth should the cabinet be?

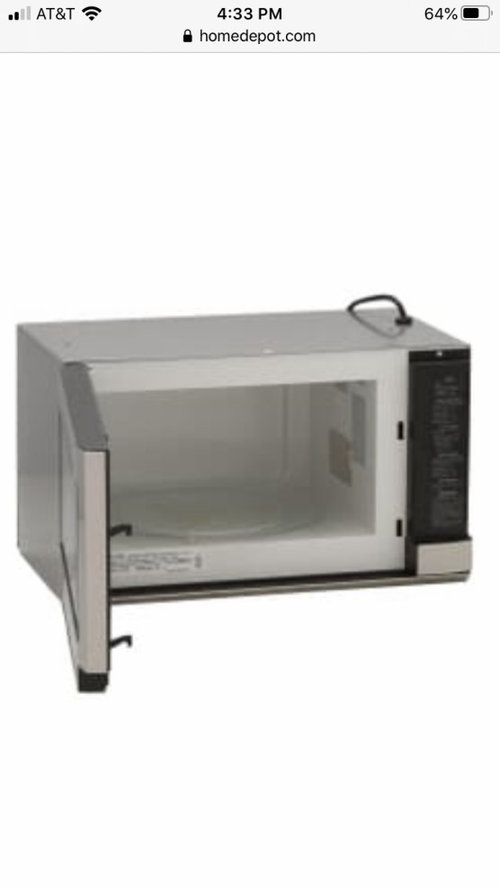

maybe someone could measure the depth of the door. I can’t believe that Sharp doesn’t have that information.

Any information would be so helpful!!

thank You very much!!!

Sort by:Oldest

Comments (3)

PRO
JAN MOYER
5 years ago
last modified: 5 years ago
Look at the overall depth. the oven DEPTH.

23 7/8" x 14 1/16" x 15 9/16"

17 1/2" x 9 7/8" x 14 15/16"

Your door must be PROUD of any adjacent cabinetry. Or it will not fully open. The door MUST stick out

If this is a diy? Get the micro on your SITE

____________________________-

specifications

R-1214 Over the Counter Microwave Oven

TYPE OF OVEN
OVEN CAPACITY
COOKING UNIFORMITY DISPLAY
CONTROLS
SMART AND EASY SENSOR SPECIAL FEATURES

DESIGN
OVEN INTERIOR
OUTPUT POWER
OUTSIDE DIMENSIONS (WxHxD) OVEN DIMENSIONS (WxHxD) APPROXIMATE WEIGHT
AC LINE VOLTAGE
AC POWER REQUIRED
SAFETY COMPLIANCE
UPC CODE

OPTIONAL ACCESSORIES

Over the Counter
1.5 cu. ft
Carousel Turntable System: 14 1/8" diameter glass turntable 7-digit, 2-color, lighted LCD with interactive word prompts Auto-Touch Controls on lower face of door
11 Sensor Settings

Interactive Cooking with Custom Help (English, Spanish, or French); Sensor Cook—11 foods; Reheat Sensor; Popcorn Sensor; Instant Action keys (up to 8 servings); Defrost Center; Keep Warm Plus;
Hot Water setting; Minute Plus; Kitchen Timer; Clock; Child Lock; Demo Mode; 11 Variable Power levels; 4-Stage programming; Audible Signal Elimination; Informative Cooking Guide; Task and Accent lighting

Durable Stainless Steel with smooth glass window Acrylic painted interior with oven light
1100 watts
23 7/8" x 14 1/16" x 15 9/16"

17 1/2" x 9 7/8" x 14 15/16"

Net: 46 lb Shipping: 50 lb

120 Volts, single phase, 60 Hz, AC only

1.53 kW, 13.0 amps

FCC, DHHS, UL listed

R-1214: 074000611696 RK-OTC: 074000610392

RK-OTC120: Two brushed stainless steel accessory bars with eight custom "s" hooks, mounting posts and screws ready to mount.
wdccruise
5 years ago
Figure 14 on page 10 of the Installation Instructions shows that the oven extends beyond the cabinets above and adjacent to the appliance.

You are correct that the installation instructions do not state the depth of the cabinets. It refers only to the following:

"This Microwave Oven requires a mounting space on a wall as shown in Figure 1. It is designed to be used under standard 24-inch wide wall cabinets."

and

"THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO THE MOUNTING INSTRUCTIONS FOUND ON WALL AND TOP CABINET TEMPLATES."

Perhaps you can obtain the templates from Sharp.
Related Professionals
Albany Kitchen & Bathroom Designers · Cedar Rapids Kitchen & Bathroom Designers · Eau Claire Bathroom Remodelers · Beatrice Interior Designers & Decorators · Lebanon Interior Designers & Decorators · Garden City Architects & Building Designers · Bronx Architects & Building Designers · Coeur d'Alene Kitchen & Bathroom Designers · Medford Kitchen & Bathroom Designers · Miami Kitchen & Bathroom Designers · Alpena Kitchen & Bathroom Designers · Stockton Kitchen & Bathroom Designers · New Orleans Kitchen Remodelers · Nashville Kitchen Remodelers · Edmonton Custom Countertops
dough71
4 years ago
Hello M Khelp...how did you end up installing the Sharp microwave. We are looking at installing the same Sharp microwave (R-1214TY) under a 13.5" upper cabinet. Will it work or do we need to stick with a 12" deep upper cabinet?
