Ideas for stairway and hallway?

11 months ago
last modified: 11 months ago

Hi all,

I'm hoping some of the incredibly imaginative minds here can help. Currently designing our home and have pretty much all aspects we want locked in...except for the stairway placement and how it'll affect the downstairs hall and upstairs landing.

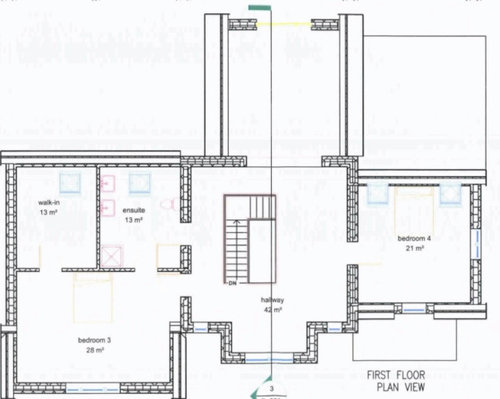

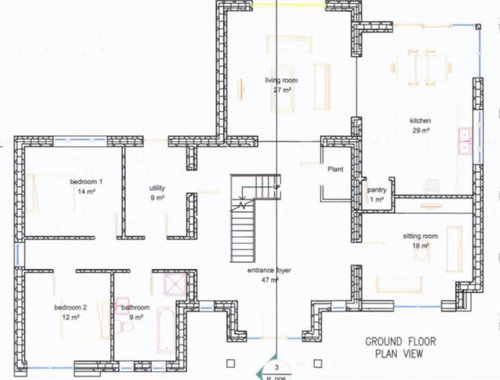

Below are the plans for upstairs and ground floor. The upstairs "hallway" is lounge/sitting room area that is open to and overlooks the living room below. We'd like to not have the stairs land in the middle of this room but also want to keep the hallway that runs behind the stairs downstairs.

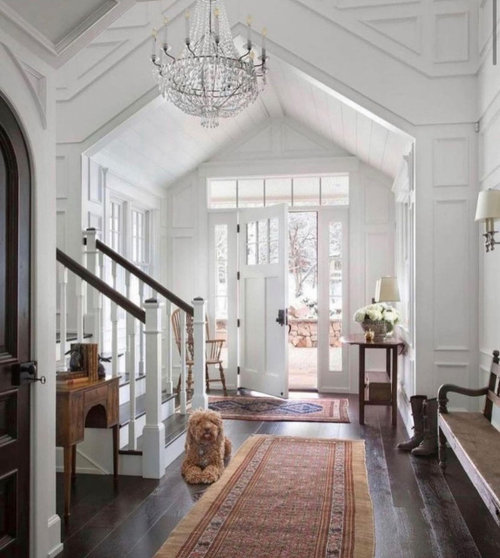

Also attached the two stairways we had in mind...we love both but they may not be feasible?


Does anyone have any suggestions? We're open to all ideas and even putting the stairs somewhere else. I realise its a tough ask but hoping some of the bright minds here can help :)

Thanks in advance for any advice









Comments (10)

  • 11 months ago

    Maybe explain your reasoning for having a hallway "behind" the stair, why each of those rooms need multiple doorway access.

    The stair is just "plopped" in the middle of the large Foyer without relation to anything, which makes them want to be a centerpiece jewel (all your attention is focused on them, even going down to basement). None of the inspo pics have that concept.

    paul mehew thanked 3onthetree
  • 11 months ago

    505sqft. of the ground floor and 450 of the second floor are open space without a dedicated use. But the second-floor master bath is setup to be shared with the other bedroom across the open space on that floor. Time for a redesign.

  • 11 months ago

    I’m also curious about the hallway behind the stairs. It seems like so much of your square footage is devoted to circulation space. And if the stairs were moved up and over into the space where the hallway is, you’d have a very nice long view from the front door to the living room.

    Also wondering about reasons for the huge foyer. It’s bigger than many of the rooms.

  • 11 months ago
    last modified: 11 months ago

    Apologies, my post was probably not very clear. ground floor is where the front door, kitchen etc is…street level. upstairs is first floor.

    @3onthetree i agree, my wife loves narrow hallways, there wont be doors between these but she is keen for one to run on that side of the house and join up with the other hallways down to the bedrooms - as seen in ref below.

    we’re planning on making the main enterance more narrow as its very wide. Any suggestions on how to achive this are greatly appreciated




  • PRO
    11 months ago

    What country will this house be built in?

  • 11 months ago

    You can slide the rooms on the left side of the floorplan over to reduce the square footage/meters of the foyer and upper floor open space. Put the stair against a wall. And your wife will enjoy a long narrow hall from the new single door entrance all the way back to the main living space and kitchen. This reduction in the width of your structure can open exterior space for parking or a garage with an additional entrance directly into the kitchen area. This may be valuable function for you as the occupants.

    paul mehew thanked dan1888
  • 11 months ago

    Hi @dan1888 I’m not sure i follow completely, are you saying make the bedrooms slightly larger so they meet the stairs?


    @Mark Bischak, Architect in UK, on a large open site

  • 11 months ago

    I'm suggesting you slide the left side of each floor to the right to reduce the foyer down a lot as a first design step. Without any dimension changes to the rooms. Delete the Plant space at this stage. Place the stairs against the wall with the Utility space. Reduce the entrance to a single door. You might be able to use some of the Utility room for stair space. It seems overly large. You also need another bathroom on the upper floor. A separate ensuite for the primary bedroom is essential.

  • PRO
    11 months ago

    Have you tried https://www.gardenweb.com/discussions/uk-forums


    You build differently than we do in the US and might get better suggestions on the UK forum.


    Who is doing the design?


    Have you seen the plan rendered in 3D -- both inside and out?
