auger belt cam assembly

11 years ago

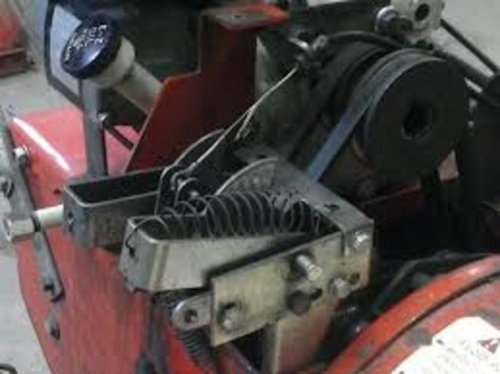

I had to rebuild my Dynamark 8/26 snowblower last year. I didnt take pics as i did and cant figure out how to redo all the springs to make assembly complete i found this one pic on web but not clear enough can somebody help me with my problem?

Sort by:Oldest

Comment (1)

the_0utsider
11 years ago
I had one of these (as a Sears - 12" impeller right?). From your pic the left end of the top spring is correct but the other end goes down to Holes on the body of the blower (i think or some holes below). Or at least the spring is to pull the 2 pulleys down to disengage.
