sp1ma2ca3

Ashley 11000 BTU Direct Vent wall heater

9 years ago
Need more specific dimensions: vent pipe size?
Depth- How much is on out side of wall
How much is on inside of wall.
Efficiency? Space needed to mount
between studs
Drawings showing installation parts.
Can I run this off of a 30lb propane
bottle?

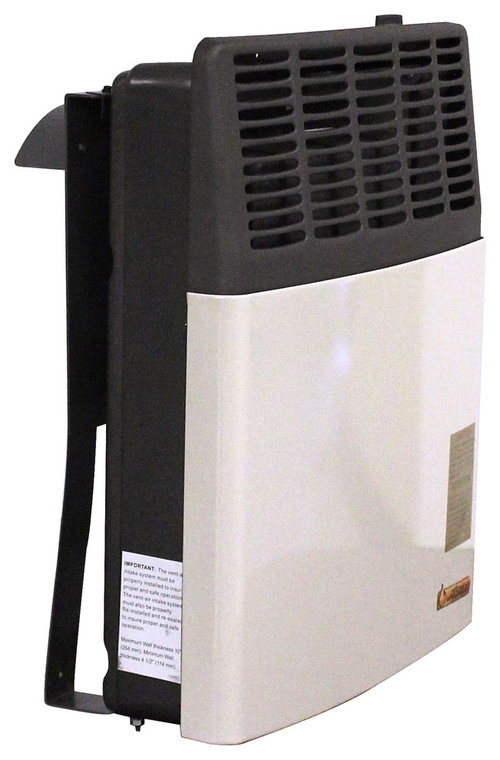

Ashley Direct Vent 11,000 Btu Heater Natural Gas · More Info

Comment (1)

  • PRO
    9 years ago

    Specifications for AGDV12N
    Up to 11,000 BTU's
    Heats up to 275 square feet
    Natural Gas or Liquid Propane
    Matchless piezo ignition
    No electricity needed
    Safety valve shut off
    Includes all venting accessories

    Dimensions:
    Depth: 7.625"
    Width: 17.375"
    Height: 20"
    Weight: 33.7lbs

    Fuel Tank Size: 100 lbs


    Maximum wall thickness 10" (254 mm)

    Minimum wall thickness 4 1/2" (114 mm)
