dominic_hodel

Developed Attic Checklist

8 years ago

Hi All, We are in the process of designing a new build and are now focused on the developed attic space above an attached 3-car garage (hallway will run right into this space). I've done research on this forum and other websites, but was wondering if anyone can provide feedback on if I'm missed any critical items when planning (from a budget perspective ) for this space. We want to ensure it is well preped for finishing up the space in a couple years

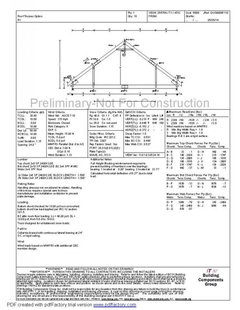

1/ Attic/storage trusses - anything specific i need to recommend

2/ Insulation - base spec includes R-28 1/2b spray foam insulation on the floor above garage; and R34 blow-in fibreglass within the attic. Should i upgrade both these insulations?

3/ HVAC - run to this new developed space

4/ Electrical conduit to run from attic - should i rough in all outlets now?

5/ Rough in Cat5e/RG6 wiring for future internet/cable?


Thanks or any advice!

Comments (14)

  • PRO
    8 years ago

    FROGs (finished room over garage) tend to be cold, I'd definitely upgrade the insulation

    D D thanked Carolina Kitchen & Bath
  • 8 years ago

    Are you familiar with local fire codes for over-garage spaces?

    D D thanked apple_pie_order
  • PRO
    8 years ago

    Fire code requires that walls and ceilings of the garage below be covered with a minimum 20 minute fire barrier (1/2" sheetrock on walls and 5/8" firerock on ceiling).

    D D thanked Peter B. Rice & Co
  • PRO
    8 years ago

    This can be done, but sometimes it requires a heated garaged if one lives in a cold climate and the space is to be used for living. I wish I had one as it is often cold in my library, which sits directly above my basement unheated garage. If it were an outside garage, it would be very cold.

  • PRO
    8 years ago

    Yep, you'll need to frame the floor above the garage as if an occupied floor (floor dead and live loads), plus frame the roof separately so that there is clear space for humans and other creatures.

  • 8 years ago

  • 8 years ago

    Thank you all so much for comments to date - I'm keeping track of all your suggestions

  • 8 years ago

    You might want to consider a future bathroom as well. Even if it's a half bath.

  • 8 years ago

    How does this all tie in to the balance of the home? The design should all be taken into consideration at the same time in my opinion. How you frame, build, insulate and roof the portion over the garage directlt impacts the rest of the home, no?

  • 8 years ago

    Any additional technical comments on modifications required for the flooring and roof system? thanks again!!

  • PRO
    8 years ago

    Put down 1/2", 5/8" or, better yet, 3/4" plywood subfloor until time to add interior finishes (assumes 16" OC floor joists). Roofing is simple: make it fit, match and shed water, at the outset, like the rest of the roof over your house. Wire, plumb and HVAC the interiors whenever you have the cash.

    D D thanked Virgil Carter Fine Art
  • 8 years ago
    last modified: 8 years ago

    Screw drive garage door opener and lots of soundproofing on ceiling --clips and resilient channels--plus upgraded insulation.

  • 8 years ago

    To follow up on this...If in the base spec was the construction of the garage, what would be the actual spec upgrades that would be incremental (ex., base spec is subfloor can't support weight --> upgrade is subfloor that can support through 16" OC floor, existing insulation --> upgrade is incremental insulation)...ie, don't want to double count specs....apologies if this is convoluted
