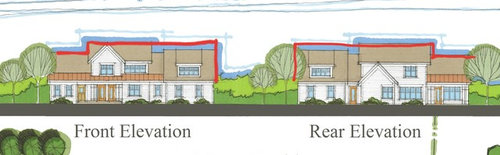

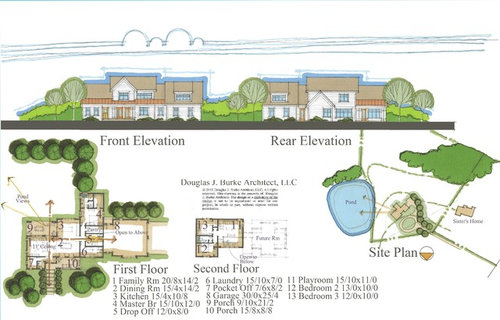

As an example, this is one of our early drawings we received from the architect which omitted the dormer. As with the "final" plan drawing, this one also has the roof shifted downward on the right, when it should actually be the same height. Roofline drawn in red here also.

Oh, and if it matters, we are planning to do white hardiplank siding and a black shingled roof. White windows. Natural wood porch columns.

How does this new roof change what's below?

Have you looked at this in 3D to evaluate things?

What does Doug say?

@PPF - Thank you for that drawing! it will definitely need "something" but I'm terrible at conceptualizing things.

I havent looked at it in 3D, no. I dont have the software to enable me to do that.

Doug mentioned that the roof line should be straight, but I didnt want to bother him with further questions after he provided me with the final conceptual design.

The elevations are much stronger and appealing with the original roof lines as shown in the elevation drawings, without the red. To achieve this the bonus room will have lower perimeter head height, hence the need for dormers, which also make the elevations more interesting.

The red line represents the wall head heights all being the same everywhere, which isn't really necessary in a bonus room.

I'd keep the original design as shown, including shed dormers. It's very well done.

I would keep the original also.

Looking at the plan, I think the elevation looks more like this. I did raise the head height of the dormer windows to align with the other windows on the 2nd floor.

I definitely agree that I like the original roofline, but I was told it was straight across (rather than dipped down to a shorter height in the bonus). If this is possible to keep the originally drawn roofline, I would prefer that, but I am still interested in tweaking that dormer if anyone has any suggestions on that part :)

Unless its too expensive, you could continue the first floor exterior walls a foot or more above the second floor line and keep the original roof ridge configuration. That would make the porch roof steeper, etc.

The second floor plan for the bonus room shows "pony walls" along the two sides with the rake roof, but we don't know the plate height of those walls. But it's this technique which allows the exterior elevations to be as they are shown, and much better appearance for the garage/bonus room exterior massing.

As for the garage gables, the shed-type dormer allows for wider dormers (and more interior usable space) than a gable-type dormer. But if that shape is appealing, and a smaller interior space is workable, then go for it!

Beauty is in the eye of the beholder, but if it was my house I'd stick with the original elevations.

Good luck on your project!

If extending the exterior walls above the second floor is too expensive, you can get another foot of ceiling height in the bonus room for little money by simply resting the rafters on a double 2x6 rafter sill plate sitting directly on top of the second floor platform sheathing instead of on the first floor wall top plate.

This is the way I have always framed a roof. Better for insulation and it lifts the rafter overhangs for taller windows, better eave trim and steeper porch roofs.

Some like to add connections to the joists. If you do that, you could raise the rafter plate.

Assuming there's a step or two down from the house to the garage, will the bonus room be at the same flor level as the rest of the upstairs, or will it step down?

also, you didn't ask, and I can't tell from the plan if it's already there, but may I suggest that the stretch of garage between the man door at the top and the window at the bottom, be raised up a step from the garage? It will help keep the house cleaner, and I think you said that you will use that as a preliminary drop zone? It also defines the area and keeps stuff from drifting into the car bays, or from the car bays into the walkway.
