Linear bathroom floor drain concern

5 years ago

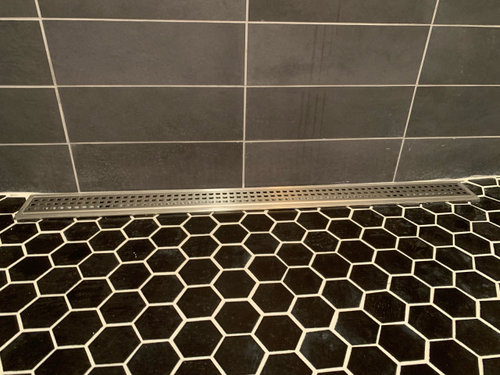

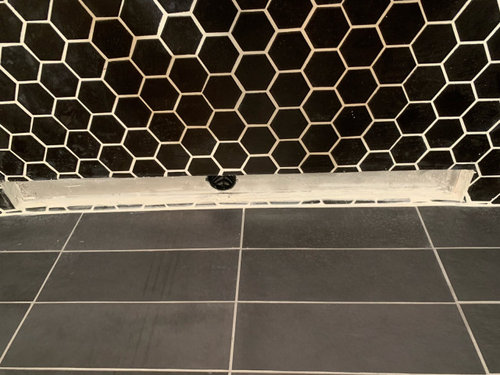

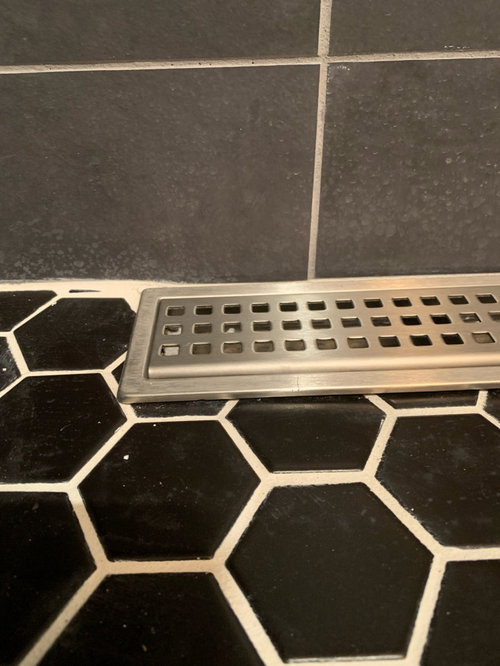

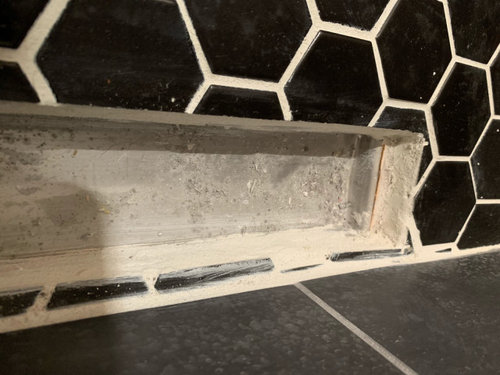

My contractor installed a new bathroom for me and added a shower where one didn’t exist before. I wanted a linear drain and he installed a Schluter drain. Right afterwards I questioned him on it as it was raised advice the tile. I said won’t the water have to puddle up to actually drain through the drain or it will go around the outside edges of the drain bypassing the grate itself. Under the grate there were pockets where water could deep. He filled those with grout or mortar. I’m still not convinced this is done correctly. Every other drain I’ve ever seen is flush with the surrounding tile for obvious reasons. He says where’s the water going to go? It’s all waterproofed. They also installed a radiant heat floor under the tile, so I’m also worried, rightfully or not, about any issues with that and electrician should water seep under the tiles. Any advice?

Featured Answer

PRO

Patricia Colwell Consulting

5 years ago

Waht a mess I am not sure there is a fix without a redo but I agree I wonder what else is not done properly. Water cannot run uphill plain and simple

Sort by:Oldest

Comments (7)

millworkman
5 years ago
That is obviously incorrect as the entire grate needs to be even with the level of the tile. Makes one wonder how the balance of his work stacks up........................
Marc Mignogna thanked millworkman
Anna (6B/7A in MD)
5 years ago
last modified: 5 years ago
This guy's a numbnut. Now the rest of the work is in question. Picture from Schluter's site.
Marc Mignogna thanked Anna (6B/7A in MD)
Related Professionals
Athens Bathroom Remodelers · Florence Bathroom Remodelers · Lawrenceburg Bathroom Remodelers · McAllen Bathroom Remodelers · Vicksburg Tile and Stone Contractors · Cornwall Tile and Stone Contractors · Lake Havasu City Architects & Building Designers · Provo Architects & Building Designers · Grand Forks General Contractors · Stamford Home Remodeling · Cheyenne Home Remodeling · Augusta Bathroom Remodelers · Effingham Bathroom Remodelers · Jackson Bathroom Remodelers · Chico Bathroom Remodelers
PRO
Queen Remodeling
5 years ago
As an expert, this is absolutely wrong, both practically and aesthetically. The grate should be at least level (or deeper) with the tile level.

****NB: You really need to have this fixed ASAP to keep unpleasant odors from entering the restroom through the drain.

Thank me later
Marc Mignogna thanked Queen Remodeling
cpartist
5 years ago
I hate to think how he waterproofed that shower if he couldn't even put the drain in correctly. Do you have pictures of the work he did before the tiles went on?
Marc Mignogna
Original Author
5 years ago
I believe I do. I was taking them throughout.
annbecchina
4 years ago
We bought a house where the drain had been incorrectly set above the level of the tile and, 18 months down the road, ended up with drain flies because of the permanent standing water and had to rip out the floor and have someone redo it properly.
