Do Sub-Panels (in garage) Typically Include a Main Switch?

4 years ago

Having a new home built. They will be putting a main panel (with higher Amp breakers) at bedroom end of house on outside wall. There will be a 'feeder wire' that runs from main panel to the opposite end of house thru attic to a sub-panel in the garage. The sub-panel will then have the individual 20A circuits to various household lights, wall plug circuits...

QUESTION: Do they typically also put a 'main switch' at the top of sub-panels (and all the individual 20A switches lined up below) when located far from main panel? Or is that switch something I need to specify or ask for?

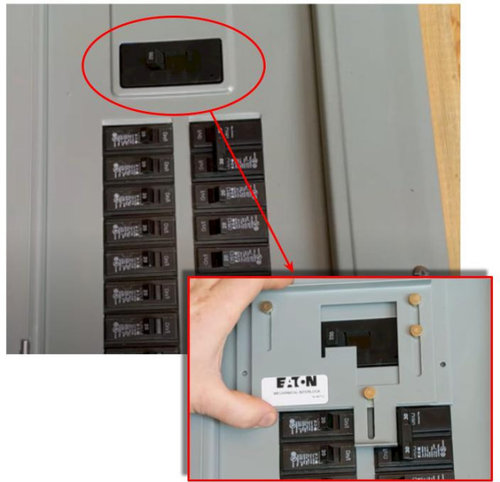

(in future I want to be able to put an interlock at the sub-panel so I can add an input plug for a portable generator next to the garage for emergencies.)

thanks,

Sort by:Oldest

Comments (5)

PRO
Mark Bischak, Architect
4 years ago
Ask your electrician and let them know your future plans.
BT
4 years ago
Sub-panel is fed by a breaker in the main panel, already switched thus does not need another breaker. The only thing that required is to remove the bonding screw between neutral and ground bus bars.
Related Professionals
Emporia Architects & Building Designers · McComb Architects & Building Designers · Rapid City Architects & Building Designers · London Design-Build Firms · Clarksville Home Builders · Syracuse Home Builders · New Braunfels General Contractors · Stamford General Contractors · Barnstable General Contractors · Taunton General Contractors · Carbondale Home Remodeling · Detroit Home Remodeling · Aiken Bathroom Remodelers · Hudson Bathroom Remodelers · Sheridan Bathroom Remodelers
worthy
4 years ago
Simplest to arrange for the electrician to install a manual transfer switch so you can safely use a portable generator during a blackout.
rwiegand
4 years ago
Probably not typical, as it's an added expense. Your electrician can certainly provide one. I forgot to ask and now have to walk back 200 feet and down into the basement when I want to kill the power tot he subpanel in my shop. A second breaker or a switch would have been a lot more convenient!
outpaientzero
4 years ago
If the sub panel is in the same building a main breaker in the sub panel is optional, so is something you should request. If you get any resistance it's not because of code but an electrician without a panel with a main on his truck.

Remember what BT said about removing the bonding screw/strap/bar between neutral and ground. It's often overlooked by even the most experienced and qualified, and the work could be preformed by a first year apprentice.

A state electrical inspector went ballistic when he noticed I removed the bonding bar on a new sub panel feeding an auxiliary building, and after he stopped yelling at me I quoted the code section and said I was just doing what the "code" required. Without even an oh he dropped the bonding bar and turned to my earth ground telling me I needed to drive in another rod next to the one I put in, WTF!
