Cracking drywall(?) on garage beam - concern?

3 years ago

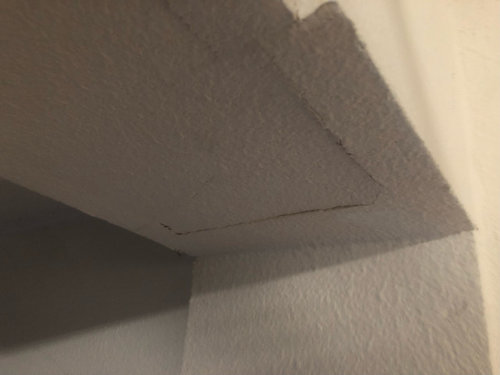

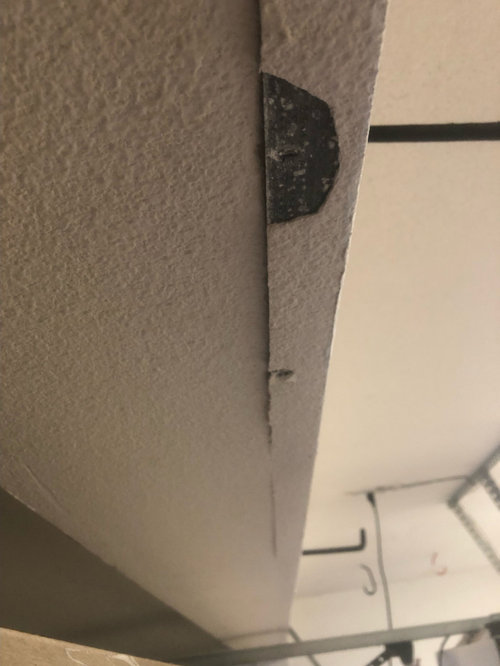

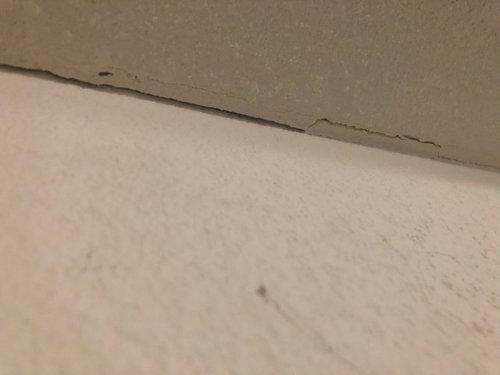

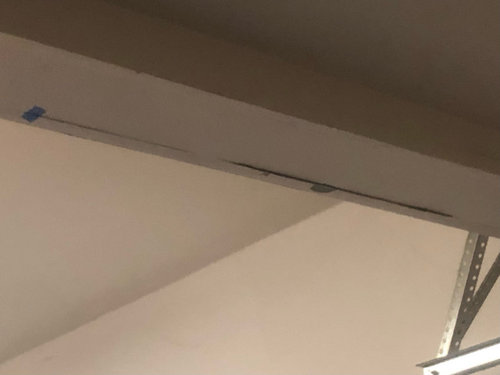

I have a garage beam that runs the width of my garage and today I noticed a crack running along almost the entire beam about 1+1/2" from the edge. I believe this is dry wall, and not the wood itself, because I tried peeling back some of the paint/stucco and it revealed a thin grayish papery material (picture attached). There is also a crack on the end of the beam near the wall that makes a square shape (also attached). There is also a crack in the corner where the ceiling meets the beam. Is this a cause for concern? The beam itself is perfectly level right now. These fissures in the drywall (I think) just have me concerned because I do have a lot of weight above the garage (a small home gym for about 2 years). Thank you!







Comments (16)

  • PRO
    3 years ago

    You've got a drywall patch to make.

    Mike Weir thanked Joseph Corlett, LLC
  • 3 years ago

    Everything you are seeing is cosmetic and to be expected with age in unconditioned space. And you are right,it's paper tape peeling.

    Mike Weir thanked klem1
  • 3 years ago

    @klem1 @Joseph Corlett, LLC Thanks! However, what if it's a new crack, or continues to develop - which it looks like it might based on the faint outline? Does that mean there's a load or structural issue?

  • PRO
    3 years ago

    What is the beam's size?

    What is the beam's composition?

    What is the beam's span?

    What is the beam supporting?




    (it appears the problem is cosmetic. I am just asking the questions to make you feel better)

    Mike Weir thanked Mark Bischak, Architect
  • PRO
    3 years ago

    No load issues.

    Mike Weir thanked Joseph Corlett, LLC
  • 3 years ago
    last modified: 3 years ago

    Thanks everyone! The beam is probably about 8" wide and maybe 12" tall (this includes the sheetrock of course). It's a townhome so it spans the other units wall-to-wall. It's supporting a second bedroom upstairs (12'x14'), which I converted to a home gym 2 years ago. Luckily I'm small so I don't have a ton of weights up there. I have a squat rack (200 lbs), barbell (45lbs), dumbbells (100 lbs total), and plates (180 lbs). I also put down 2 layers of plywood + rubber flooring up there to distribute the weight of the equipment for a 6'x8' raised platform. I never deadlift or slam weights. It may sound heavy but I think if you add it up it's not really much heavier than heavy duty furniture. I recall checking the building codes for load per sq ft according to the size of my room and I was still below that. I have not observed any buckling of the floor or separation of the floor from the wall. I took ownership of this home 3 years ago and if I look at my inspector's old photos of the garage there is one area where I can see that the crack was already there. The others I can't tell since his photos were too low-resolution or far away.

  • 3 years ago
    last modified: 3 years ago


    World's Strongest Man 4x Brian Shaw in his home garage gym.

    There's a reason home gyms are usually set up in garages or basements.

    Even under expected loading, our structural engineer has advised that the steel beams under a room over a garage will sag 1/4-1/2 in. 30 years.

    (In past decades, I could lift 600 lbs off a power rack. I would hate to drop that on the floor!)

    Mike Weir thanked worthy
  • 3 years ago

    Apparently the drywall contracor used paper tape instead of a metal corner bead at the beam. Paper tape separation is not a "crack".

    Mike Weir thanked res2architect
  • 3 years ago
    last modified: 3 years ago

    Of course it is a crack in the plaster coating!

    Mike Weir thanked Stax
  • 3 years ago

    Was the space above the garage designed as habitable space? If yes, then I wouldn't worry too much, but might be worth having it looked at if it gets worse.

    Mike Weir thanked chispa
  • 3 years ago

    " but might be worth having it looked at if it gets worse. "


    Could be but until it does get worse op should be worried about high taxes instead.

    Mike Weir thanked klem1
  • 3 years ago

    Yeah the bedroom upstairs was designed to be a habitable space absolutely.


    Thank you again all. Boy, I was certain most of you would berate me for having a small home gym in half the room upstairs and would've changed your tune to say it was structural. Thank goodness...I do feel better.


    And I'm very worried about high taxes, lol.

  • 3 years ago

    Posters stand fully behind their assessments. (But not under them.)

    Mike Weir thanked worthy
  • 3 years ago

    If you mean to imply there's blowhards scattered amongst experienced advice givers, I 100% agree worthy.

    Mike Weir thanked klem1
  • 3 years ago

    I see a metal cornerbead on the outside of the beam. Realize that structural members are designed to "sag," meaning there will be a change in "levelness" and that is accounted for and ok. To give you an idea, take the span (in inches) and divide by 240 to see an allowed "sag" of a beam (20' for a garage = (20'x12)/240=1, so that beam could "sag" up to 1" under loading). The capacity of the beam is in thousands of pounds, so I don't think some free weights will overload it (notwithstanding worthy's herculean strength).

    Also a garage's drywall will crack and separate because it is exposed to cold vs warm quite often and things move with temperature changes.

    Mike Weir thanked 3onthetree
