Help a scout- storage box hinge problem

2 years ago

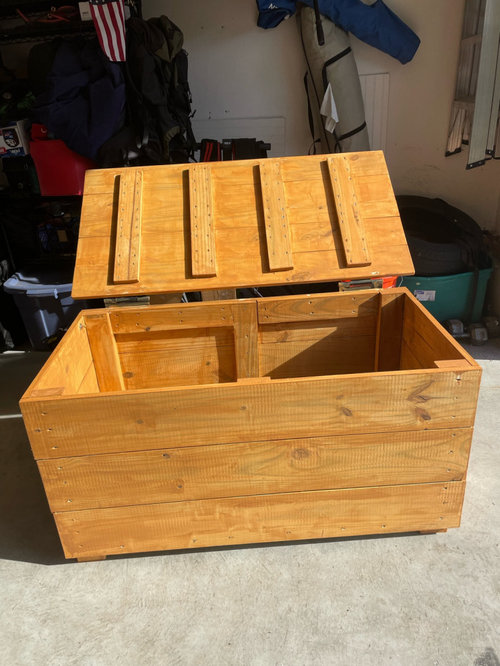

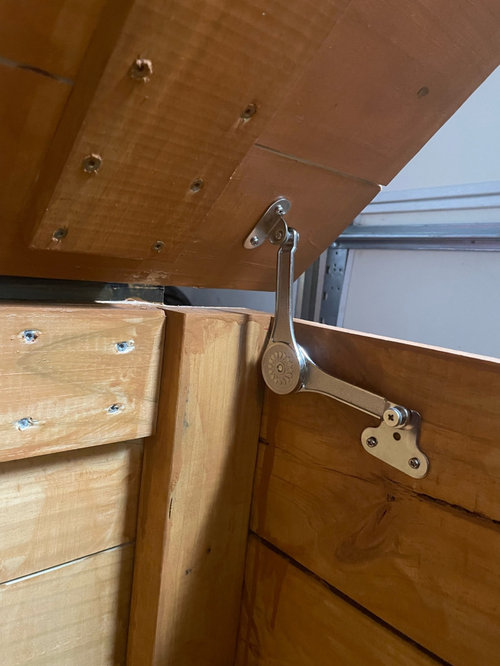

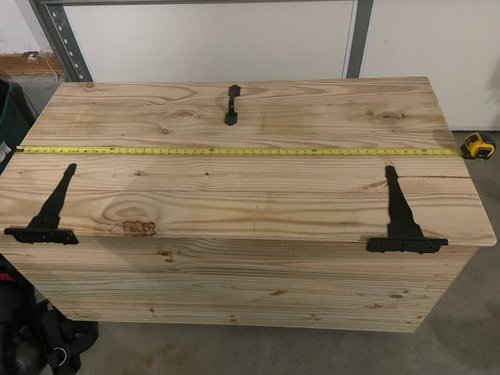

My son is building an outdoor storage box for equipment. The lid weighs approx 15-20 lbs and its 26x52 inches. We are having trouble with the lid slamming down. The hinges used are suppose to be soft close and protect fingers from getting slammed but they start to fail at approx 45 degrees. We could replace the lid if its something that could still keep the contents dry but I can't find a solution for that. Any guidance would be appreciated. It’smade out of pressure treatedwood

Comments (9)

  • 2 years ago

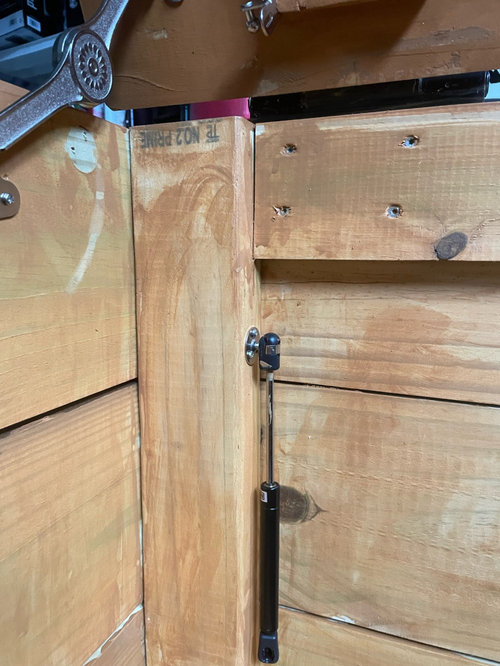

    Sorry for the typos this was done on my phone and I can't edit it. Also, to add we tried a piston (shown) that was recommended at a big box stores but that didn't help either 🤷‍♀️

  • PRO
    2 years ago

    Seek a stronger soft closing hardware or maybe add a second one.

  • 2 years ago

    Thanks Mark. We did use 2 that were suppose to hold up to 50lbs combined. I ordered another set from a different company hoping these were defective.

  • 2 years ago
    last modified: 2 years ago

    I have an oooooold scout kitchen box, which I love. Mine hinges the other direction ... that is, the lid opens up like a breadbox or an oven. This means the lid also provides a clean work space. Mine also has shelves, which keeps things organized.

    Mine is much like this, only mine's metal and doesn't have legs -- we typically set it on a picnic table. We have plastic Dollar Store bins, which hold things like silverware /pull out easily.


  • 2 years ago

    Used to know that as a Chuck Wagon.

  • 2 years ago

    You could try a hydraulic lift for that weight. My husband did that for a built-in daybed that has storage under for bedding. Lifts super slow and stays open nicely. We have to push it closed gently.

  • 2 years ago

    Photo #3 shows lift struts. and a follow up post explained they tried them.


  • 2 years ago

    Lift struts will work if they're the right size and they are installed correctly. The instructions that came with mine were difficult to decipher, but you want full extension when the lid is open and the right location for the mounting points for the piston to compress fully when closed.

  • 2 years ago

    Those might be adjustable resistance,look back to installation instructions. It will help by mounting hinges higher on sides and farther toward front.
