Bookshelf Lighting Advice/Opinions

11 years ago

Hi all, back with
another design related question….this time in regards to lighting. My wife and
I are currently leaning towards placing two eyeball lights on the inside of the
middle shelf that we can pivot outward to cast light on the external shelves.

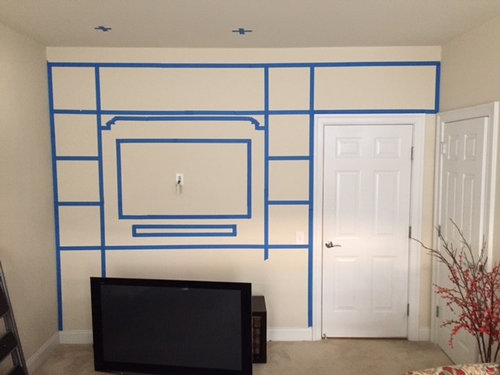

All of our shelves will be filled with books btw. The attached illustrates
roughly where we see these lights going. Questions:

  • Given
    that these shelves will be filled with books and also in consideration of the
    TV mount, are eyeball lights the way to go? We’ve considered tape lights on the
    inside of the shelves but think that it might be a little overkill and/or masked by the abundance of books. We lack the space
    for picture lights (area above shelves to be crown molding). I guess we’re
    open to your typical recess lights (small, maybe 2 inches or so) that we would
    position closer to the shelving face. Thoughts?
  • If we
    do opt for eyeball lights, what size lights should we consider, how many, and how close to the shelving face should we place them

?
Please disregard the blue tape over the door, we’ve opted to stop the shelves
right before it.

Thanks in advance
for your feedback.



Comments (22)

  • 11 years ago

    bumpin....

  • 11 years ago

    bump...

  • 11 years ago

    I would buy two clip-on small lights from Ikea. Adjustable and can move where needed.

  • 11 years ago

    I can't see eyeballs because of the likelihood of glare on the TV. Clip-ons seem ok if you have accessible outlets and shelves that you want to feature.

    What other lighting is there in this room? You might do ok with very small cans and very small eyeballs if you move them laterally from the taped positions, so that they are well clear of the TV and can cast a general glow across the shelves. Better might be to put a nice piece of art on the wall to the left and focus the light there...

  • 11 years ago

    Quick search suggests the term "eyelid" light, and anyway here are a few samples:


    Designers Fountain LED4742-WH 4" LED Recessed Gimbal Trim · More Info


    Juno 449 4" Aiming Elbow Trim, 449-Sc · More Info


    http://www.eurostylelighting.com/eu4F202.htm?sourceid=MEHOUZ4F202&cm_mmc=HOUZ-ME--Banner--at_4F202-_-Recessed%20Lighting&hz_source=ppc


    Progress Lighting P8052-28 Recessed Trim in White P8052-28 · More Info


  • 11 years ago

    great feedback so far....any additional comments?

  • PRO
    11 years ago

    they will shine back into the tv unless you are really accurate. and that would be a lot to do with the bulb choices, as well as the trim.


  • 11 years ago

    thanks, is your comment in regards to the eyeball lights? thought we might have more flexibility since we'll have the option of pivoting.

  • PRO
    11 years ago
    last modified: 11 years ago

    also the shelves are small, and since it will be books, not sure you need to waste on can lights here, i would put them somewhere you actually need lighting . tape light is over kill too. I just dont think you need them. what room of the house is this? id rather see you wash a wall with art. than a book case with a tv as the focal point. so i would put 4 cans (looks like a small area) with eyeball trim, that can swivel as well as actuate.

  • PRO
    11 years ago

    the pivot wont help the over light, and then the angle might end up shining on the door and opposite wall. they have a large spectrum, and the LED above, does not have a degree choice on the bulb, which you would need here.


  • PRO
    11 years ago

    you would need a 20wattt 12 degree bulb, for the best hopes.


  • 11 years ago

    this is our rec room, immediately adjacent to the garage....it's where we watch tv. pretty small room. I'm pretty unfamiliar with the terminology, you're recommending against canned lights but in the last sentence you're recommending 4 cans with eyeball trim? Just want to make sure I understand you. Also what do you mean by actuate? Thanks.

  • PRO
    11 years ago


  • PRO
    11 years ago

    ok, so the can trim (eyeball) the one above that flops out of the can spins left to right 180 degrees, it also takes a specialty bulb, that has different degrees (angles) the light actually spreads. meaning from this close rather than flooding the wall with light, you would want a narrow spot as to not over light the TV. then it would be pointless to have them on at night as they would glare at you.
    Instead. put four cans around the room, so you can angle them at the walls, paintings, or what ever you like, and actually get some room light at the same time.
    If nothing else just use a couple table lamps, you dont need a lot of light to watch tv.


  • 11 years ago
    I see your point(s), still looking for a way to highlight our books though; they're Easton Press leather bound, we thought that adding accent bookshelf lighting would be a nice way of calling attention to them.
  • 11 years ago
    I see your point(s), still looking for a way to highlight our books though; they're Easton Press leather bound, we thought that adding accent bookshelf lighting would help us accomplish that.
  • PRO
    11 years ago

    the led tape light will show if there is no lip on the cases, you cant set them too far back or they won't give you the effect. what is the depth of the shelves? is the tv recessed or level with the books?


  • 11 years ago
    Shelves are 12 deep. TV will be recessed.
  • PRO
    11 years ago

    i would put a board across the top to the shelf , and then mount two sconces to that. you can use, picture lights, or small swing arm lamps, or even some more modern looks. google bookcase lighting.


  • 11 years ago

    to your last post, we envisioned running crown molding across the top...otherwise, ya we would have loved to install picture lights.

  • 11 years ago
    Bumping, hoping for some additional feedback.
