My 10 x 12 HFGH build

4 years ago

Been working on my HFGH over the past few weeks. So far it has gone up ok. The only big issue I've found is the corner connectors on the foundation are drilled wrong and makes the corners not line up right leaving a gap.

The slab was already there when we bought the house. It was a kids basketball court. I drilled and set 1/4" wedge anchors every 18" or so to secure the foundation to the slab.

matt_smith59's ideas · More Info

I put down the closed cell sill seal foam and wrapped the foundation metal in a tar and foil flashing tape to prevent rusting. I think later I may fold the foam up to touch the side of the foundation and secure a piece if right angle flasing to prevent water from penetrating under the foundation.

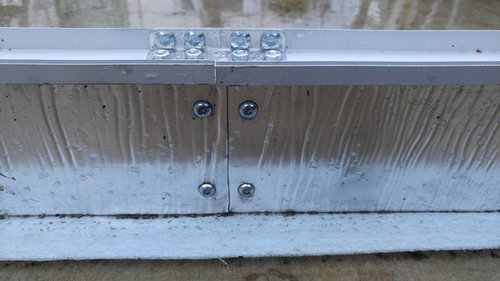

Below is a picture of the flashing tape on the metal foundation.

matt_smith59's ideas · More Info

I thought it was silly that the bolts on the bottom side of that right angle joining plate were sandwiched between the foundation and the bottom plate of the green house. It made that section bow up and my OCD nature wouldn't put up with that. So I drilled holes in the foundation so the bolts could come from the bottom side of the foundation and up through the plate. This sucked the plate tight to the foundation thus adding a stronger anchor point than just the clips. I did this on all 4 sides of the green house.

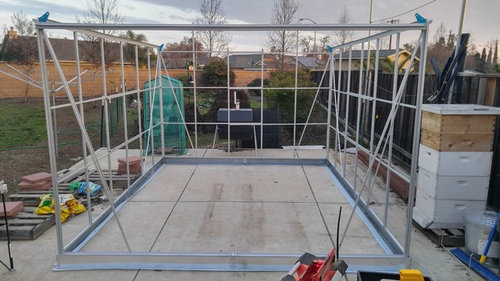

The structure went up as per the instructions.

matt_smith59's ideas · More Info

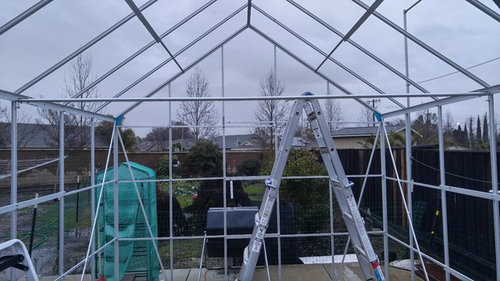

I've braced the walls like most others. I put a section of 1/2" EMT conduit from side wall to side wall in the middle going front to back of the green house. I mounted L brackets and drilled holes in the conduit and bolted the two together. This took the flex out of the walls.

Cross bar of conduit

matt_smith59's ideas · More Info

Said L bracket connection

matt_smith59's ideas · More Info

To brace the front and rear walls I attached another L bracket just to the left and right of where the cross bar is mounted. I also attached L brackets to the front and rear walls. I made a brace out of conduit that will tie the side walls to the front walls.

Just above the door

matt_smith59's ideas · More Info

There will be one of these braces at each corner

matt_smith59's ideas · More Info

These braces keep the front and rear walls from moving in and out.

At this point rain is holding me up. I'm going to seal the ends of the pannels with silicone in my garage to stay out of the rain. We're forcasted rain off and on the next two weeks so I don't know when I'll be able to get the pannels in.

I'll post more later when I get more done.

Comments (6)

Randy Montgomery
Nice job on the bracing. I haven't used any yet. It seems that once it was all together it got stronger. I even think the panels added to the structural integrity. I did use self tapping screws and caulk to tighten and seal the panels. Other than that mine is all stock so to speak and seems very strong even though I fell through the roof when I was finishing up and had to make some major repair.
4 years ago
Matt Smith
I'm in a fairly good area for wind. As the pictures show I have it right up next to the fence and about 20ft away on the other side is my house so I have a significant wind break. I have a Davis weather station out in the open about 30ft away and it sees far less wind than my dad's station that's about a mile and a half away. We have a lot more obstructions here.

I'm going to put 4 screws in the pannels at the cross bars and then clips along the edges. I figure that should work for my situation.
4 years ago
Related Discussions
y kitchen is 12x10, and dining rm is 14x18, we want to open wall, and redesign kitchen
Q
Comments (4)
I would contact a kitchen designer/dealer in your area, many dealers (such as mine) will provide design services for free with purchase of cabinets and cost will be less than Home Centers. Step one, start an idea book with design ideas that you like, many can be incorporated into your design by a good designer.
...See More
Help! Master bathroom layout! (10x12)
Q
Comments (21)
I love that concrete shower also. Even though it is design specific, at a certain point you can't do everything for resale. Go for what will make you happy and enjoy your environment. Keeping the shower in that position, round or square, with the window at the entrance to the shower, will allow you to create this in your bathroom. I know the plan looks like a fire pit drawn in, but I use a very simple quick design program and it won't curve walls. Imagine that the outside curve is the concrete wall and shower interior is all is open. The option is a wood ceiling or a combination of wood and a skylight. How divine! When entering the shower, you will see the window and imagine a floating bench intersecting the window. With the concrete shower enclosure, one stone wall behind the vanity on the right when entering, wood storage cabinet doors and simple vanity countertops, it will have a rustic modern design concept without being cowgirl. You definitely can't see the shower and no glass to constantly clean. Don't forget the finishes can be anything, which changes the look dramatically. The first thing is to determine a layout you like. ^ ^ ^ Round Shower ^ ^ ^ Square Shower ^ ^ ^ Note pebble stacked wall to continue to window at shower. ^ ^ ^ Note the transparent whited washed wall panels and floating vanity cabinet with natural wood top ^ ^ ^ Note vanity and wall application. Again, continue any wall finish on that wall only ^ ^ ^ Shower with honed travertine and stacked stone exterior shower wall with rain shower head ^ ^ ^ Weathered reclaimed sliding doors for cabinet storage with adjustable shelves behind
...See More
My dining area is 10 x 12. Will a 80 x 44 inch table be too big
Q
Comments (4)
An 80" table would leave little room for head chairs. If the room is open on one end it could work. There are plenty of 72" options out there, shop around. 72" table
...See More
Storage Building 10" X 17" with a 6'W X 7" H overhead door
Q
Comments (1)
Not sure where you should be but not on this forum
...See More
Matt Smith
Here's some more pictures of the bracing. As you can see the weather is better today so I was able to work. Tonight after the kids go to bed I'll seal the ends of the panels with caulk so they can cure.

This is the side wall where the corner braces and side wall braces connect. They are anchored at the top of three center most studs.
matt_smith59's ideas · More Info

Showing where the ones connect on the back wall
matt_smith59's ideas · More Info

And a closer view on the back wall. Bracing this wall is mandatory as far as I can tell. Far too much give in it as designed.
matt_smith59's ideas · More Info

This thing is rock solid now. Its going to take some major wind to hurt it. I'm a huge fan of this green house and the design (for the most part). The track design to hold the bolts makes adding stuff down the road super easy. I'm already thinking of adding bolts to let me attach shade cloth to the inside of the roof. Grommets in the shade cloth and fender washers would allow you to attach the cloth right to the ceiling snugly. The back wall at the peak is just begging for a fan too. I won't caulk the panels in so I can take them out to add things to the structure as needed. Oh the options are endless!!!!!!!
4 years agolast modified: 4 years ago
Matt Smith
Posting a tip for making spacers to keep your panels flat where the screws hold it down.

I cut this tubing 1/4" long and then place it between the panel and the cross bar where the screw comes through. This is much cheaper than having to buy washers and you can cut it to any length you want to fit your needs.
4 years ago
oakhill (zone 9A, Calif.)
Good idea. Thanks for the suggestion.
4 years ago
Matt Smith
Everything is up and secured. We've had some good wind and rain the past few days and all seems well.

The first test was after dark the first night so I was out in the rain putting in a few clips I missed at 11:30 at night. That was fun.

What have people done about making latches for the doors? I'm just using the trusty clamps I have lying around for now.
4 years ago
