Sorry on my previous question I had a different model pulled up.

8 years ago
What is the location and number of jets with this tub.
Is the blower the same as a pump, or is there also a pump and where is it located.
How much room do I need around the tub to be able to do maintenance/
Thank you

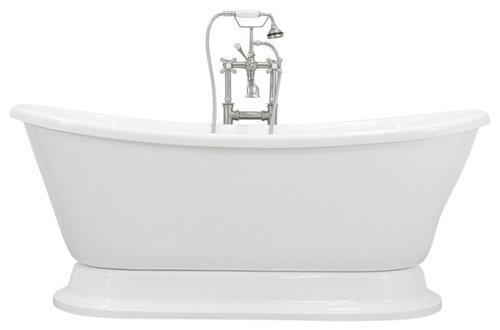

Sansiro Isabetta White French Bateau Pedestal Bathtub, 67" Length Air Jetted · More Info

Comment (1)

  • PRO
    8 years ago

    Hello Debi,

    There is 20 air jets on this tub, see link below showing the jet layout.

    Isabetta 67 Air Jet Layout

    There will be a plug coming out of the back towards the center of tub that you would plug into a 15 amp GFCI receptacle.

    Air Blower is Different than a water pump. Air Blower mixes air with the water to create
    soothing bubbles. A Water Pump circulates
    water through a piping system and exits through water jets.

    The air blower is a low maintenance item but if ever you
    needed to address an issue with the blower, access is pretty simple. You would just undo the nut from the drain basket to the drain
    pipe, remove the fasteners that would be used to attach the metal clips to the floor that are
    on the pedestal, then pick-up and move the tub and pedestal. You would then just turn the tub over and you
    would have full access to the blower and the plumbing, as it is contained within the cavity of
    the pedestal.

    For your convenience I've also attached the specification sheet for this tub.

    Isabetta 67

    If you have any more questions don’t hesitate to ask.

    Regards,

    Ed
