Mana,

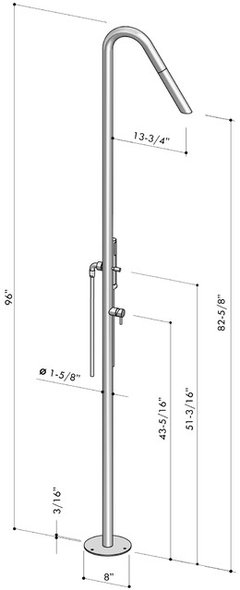

We are not able to attach a .pdf file to this email. I have attached just a photo of the specs showing dimensions. I

Hi, we need to place an order for this shower arm and still have so many questions and concerns. It looks like this is possibly installed through the shower pan. It also appears that the water lines run up through the bottom of the stand pipe. Is there a special mounting plate or bracket or additional framing that needs to be installed for this item to provide rigid support for it? Do we need to do anything special for the shower pan or execute additional water proofing measures because of its location on the shower floor? Could you please attach any installation instructions

You will receive everything shown in addition to flex lines that run from the valve to the opening on the bottom of the shower column where your water supply attaches to the shower. You will also receive mounting hardware.

We are not able to attach a PDF file to this comment thread so I'm not able to send you installation instructions. If you would like to provide me with your email address, I'll be happy to send you installation instructions that should answer all of your questions. You may also call us if you need to discuss this further. 866-746-9371

Thanks,

Emily

Thanks Emily! Here is my email address: mana@johnlumarchitecture.com

The information you requested has been emailed to you. Let me know if you need additional information. - Emily
