Wiring a 2007 Vanguard VV

I have recently acquired a 2007 Watkins Vanguard VV Hot Tub. I had a 2005 Watkins Sumatran. The wiring is different and I was wondering if someone could help me determine what I need to do to make this work. The Sumatran used 5 wires which coming out of the conduit are the black, red, blue and white, I know green is the ground, The Vanguard seems to be using 6 wires coming out of the conduit two black wires and three blue wires with green being the ground. Maybe I need to go back to the house where I picked up the Vanguard and take a picture of that breaker box to understand where the 3 blue wires are from. I will post a picture of each circuit board and my breaker box if that helps. Thank you for any help.

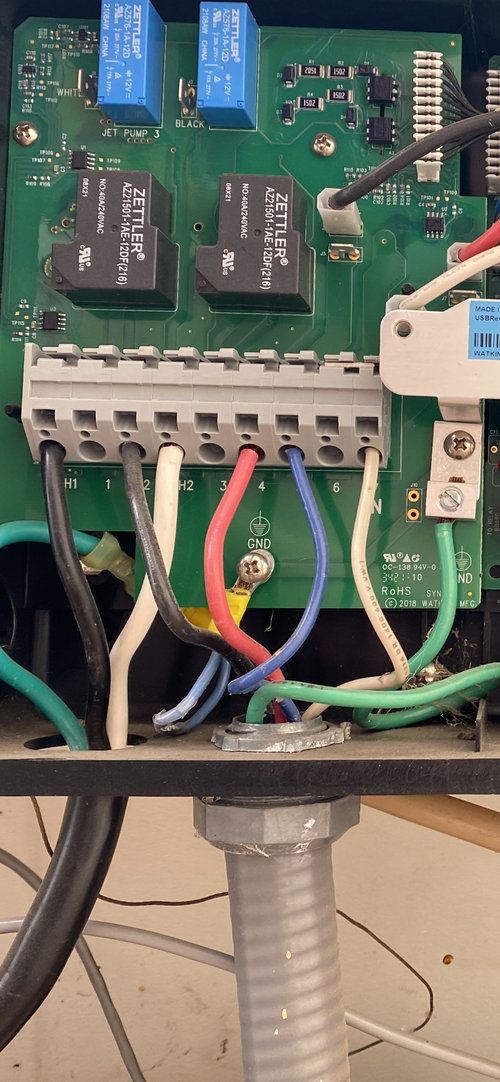

This is what I had on the Sumatran

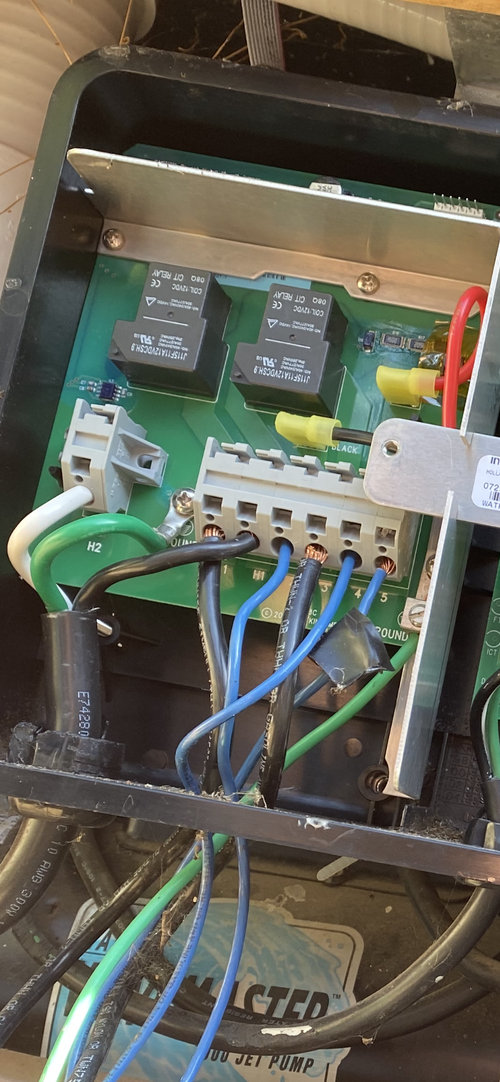

This is what the Vanguard had, but I don't have those same wires

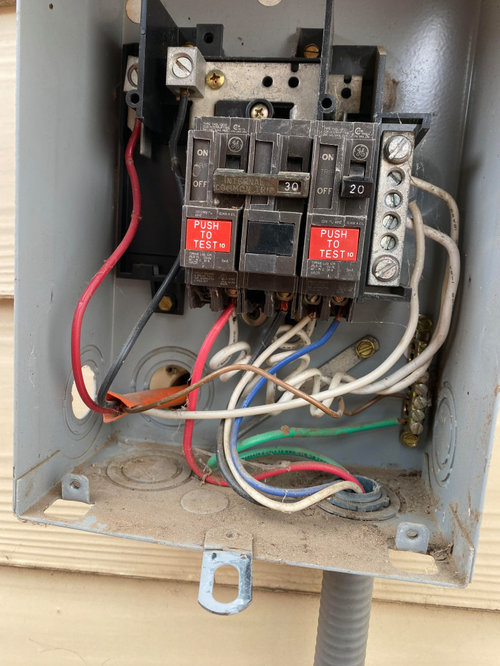

This is what comes out of my breaker box
