How did you install without a control box?

11 years ago

I want to put in the adorne outlets but the control box would stick below my cabinet bottoms due to control box. Would you let me know how you got around that?

Technology in the Kitchen - Santa Cruz Beach House · More Info

Featured Answer

PRO

Urbana Design Studio

11 years ago

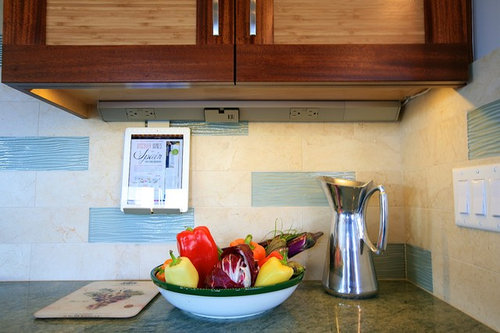

We installed the outlet strips with the Direct Wire Modular track. It sits flush with the outlet strips. You can see it on the right side. Also the cabinets bottoms are recessed 1 9/16" to cover under-cabinet lighting and outlet strips. Here is the link to the Direct Wire track: http://www.legrand.us/adorne/select/under-cabinet-lighting-power/apdwctm1.aspx#.VEcJjr6Nic4

Sort by:Oldest

Comments (7)

ashik08
11 years ago
Please tell me the pros and cons of slanted power strips vs. flat strips. I am thinking the slanted ones might be more visible if not much recess under cabs? But is one more accessible for plug use?
PRO
Urbana Design Studio
11 years ago
Yes, the angled strips are more accessible but taller (depending on which brand you choose). The flat ones are less expensive, have a smaller profile and are harder to reach when you have to plug something in.
sharonandshiloe thanked Urbana Design Studio
Derek Hallett
9 years ago
are the lights recessed into the bottom of the cabinet?
PRO
Urbana Design Studio
9 years ago
Derek - there are LED strip lights under the cabinet. The cabinet bottoms are a recessed to hide the outlet strips and tape light. - Shannon
Derek Hallett
9 years ago
So if I understand this correctly I could hook up any led strip. Need to find the wiring diagram. I have everything wired for the outlets as well as lighting (which is connected to a wall switch)
PRO
Urbana Design Studio
9 years ago
You just need to have a wire available to hook them up.
