Please help framing out HVAC

8 years ago

last modified: 8 years ago

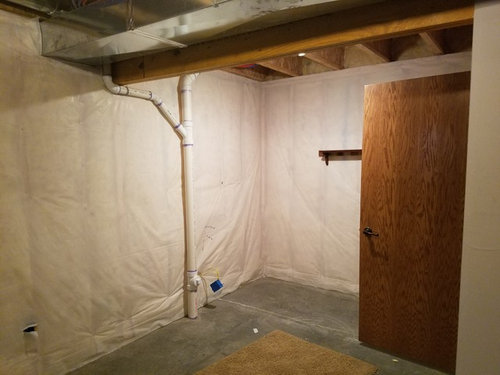

What would be the best way to frame out this area of the basement? Bring the hvac level down to the header level and lose a little head room? Also for the pipe on the wall should we start the framing at the hvac and carry it all the way to the wall? Last, is there a easy way to cover waste clean out, but still have access to it? Questioning which would look the most natural, and least obvious of hiding these type of things. Thanks!

Sort by:Oldest

Comments (3)

PRO
Gravitas
8 years ago
I would furr out the wall to the left of the beam to hide all the plumbing, then put a clean out cover plate over the clean out. Measure and photo before you cover it, and don't put a drywall screw through the plumbing. Yeah, just box out the HVAC, but if you want, box the beam separate, or leave the beam exposed even.

https://www.grainger.com/product/4WDN7

Derek Hurd

Gravitas, Inc.

112 E 33rd St.

Garden City, ID 83714

208.367.1184

www.gravitaslc.com
sarander thanked Gravitas
buildman me
8 years ago
id second and drop it to match the beam. Nice setup you have..looks clean and gives some good pointers for the trunk lines...nice photo
sarander thanked buildman me
Related Professionals
Hopkinsville General Contractors · Salisbury General Contractors · San Francisco General Contractors · Dodge City Home Remodeling · Providence Bathroom Remodelers · Murrieta Interior Designers & Decorators · Fort Wayne Architects & Building Designers · Middletown Architects & Building Designers · Escanaba Kitchen & Bathroom Designers · Aberdeen Kitchen & Bathroom Designers · Pullman Kitchen & Bathroom Designers · McAlester General Contractors · Florence Interior Designers & Decorators · Williamsburg Interior Designers & Decorators · Traverse City Interior Designers & Decorators
PRO
GN Builders L.L.C
8 years ago
You can get a low profile plastic access panel cover made especially for sheetrock application. They are neat and look good and hardly noticeable.

This is a link for Plastic Access Cover

As the framing goes around the pipe you can make a step in the wall and bring that portion forward, sometimes that can be incorporate into some basement feature.

The ductwork if you wrapping everything with sheetrock.

Something like this, this is a typical duct framing detail.

Good luck
sarander thanked GN Builders L.L.C
