tilt tray rubs under counter

5 years ago

We have a tilt out tray under the counter by the sink. I can open and close it, but the top of it rubs on the underside of the counter every time. I can include pictures later, but in the meantime, does anyone have any insight as to why this might happen or how to fix it other than cutting the front down a little or ordering a new front from the cabinet people?

Comments (8)

  • 5 years ago

    Edit to add that we have frameless cabinets….so the top of the tilt out front goes 1/8” from the top of the cabinets. The drawers are the same but since they don’t tilt and just glide on a horizontal axis they are totally fine.

  • 5 years ago

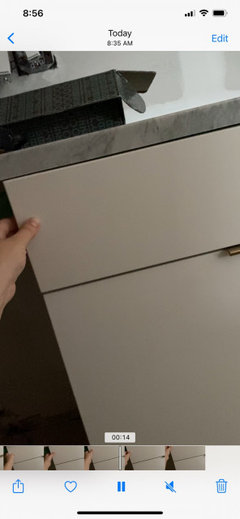

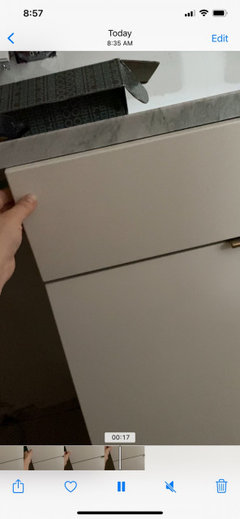

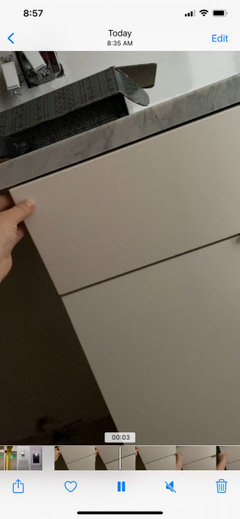

    You can see in the photos….if I let it close all the way, when I go to open it, it almost catches on the counter. If I hold my fingers behind it at the top so that it closes ALMOST all the way (and looks closed) it glides back and forth effortlessly. I’m guessing it has something to do with the hinge but I’m not really sure how to fix that.

  • 5 years ago

    Dosa Moss, any additional insight? Is it bc it’s frameless?

  • 5 years ago

    A full overlay framed with very tight reveals would have the same issue. It’s simple geometry. You cannot stand up a 96” cabinet in a 96” ceilinged room because the diagonal is taller than 96”. Same here. With tight reveals, the diagonal is a further distance than the height, and so scrapes on the counter. A full overlay framed with a more typical top reveal gap of 3/8” doesn’t have issues. Frameless and full overlay framed built to similar tight overlay tolerances, cannot use a tilt out.

  • PRO
    5 years ago

    It and the doors below are adjustable. Drop 'em both a tad please.

  • 5 years ago

    A bit of a bevel on the back top side of the tip out front might give you that bit of clearance you need.

  • 5 years ago

    Wizeowl I definitely agree; however, it’s oddly the only lower cabinet on the entire side. The rest of the kitchen is the fridge and dishwasher lol. City living.

  • 5 years ago

    Joseph corlett thanks I do recall that being something w the hinges. I’ll have to look into how to do that!
