stumped on the best solution for pipe behind dryer

4 years ago

My daughters first starter home, and we just realized the previous owner put the master sink line behind the dryer vent.
What is the most cost effective solution.

Move the drain line?

Build out the cabinet and put in new doors because the framing was not done correctly?
Buy a smaller dryer, although dryer is only 1 year old, and still paying for it? New compact size dryer approximately $500.00, plus need to reinforce the frame for doors.

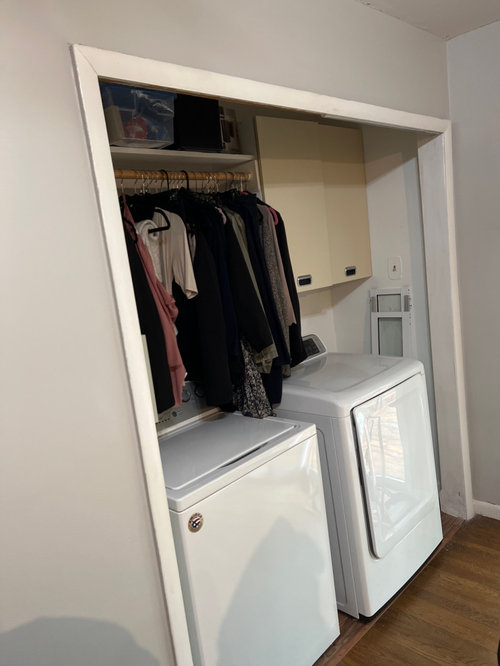

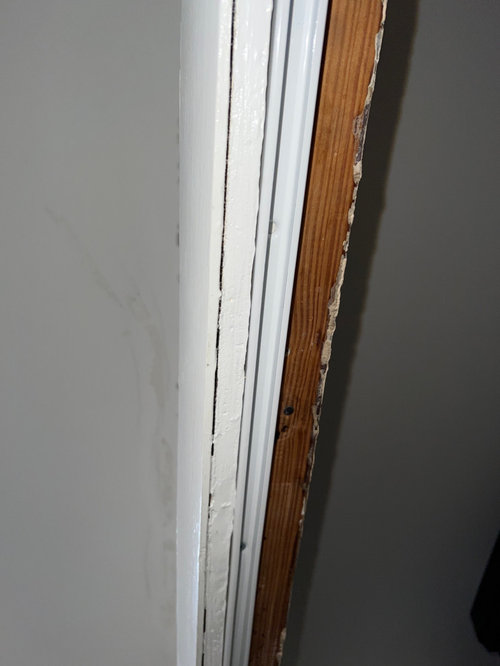

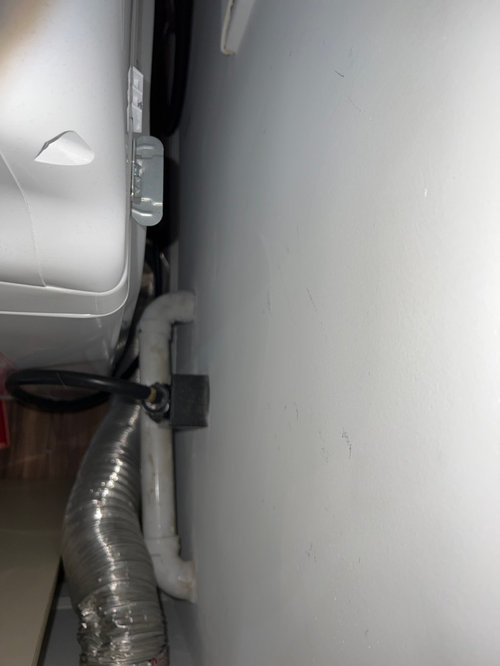

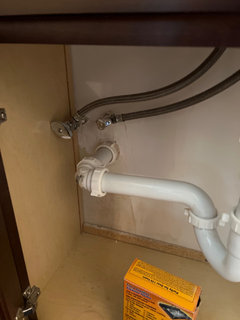

I’m including pics of her drain line and framing of the closet.
Any recommendations welcome, and appreciated!

Comments (14)

  • 4 years ago

    It's not clear in the photo how that exhaust ducting is attached to the dryer, what sort of adapter/connector may be involved ... but it looks to be an airflow restriction situation.

  • 4 years ago

    Can the dryer be vented from the side? I see Samsung's website stating that some of dryers have 3 Way Venting.

  • PRO
    4 years ago

    It doesn’t seem that the piping is preventing the dryer going back further, the thickness of the dryer duct is which can’t change…

  • 4 years ago

    Whirlpool_trainee
    I believe it can! I believe I nay just have enough room to clear the closet for doors. Who is the best professional to call to have the job done? Thank you!

  • 4 years ago

    Dadoes

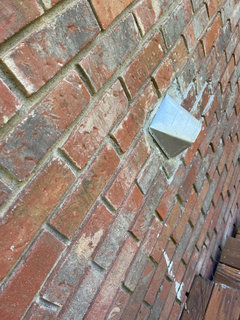

    The vent is going through the wall to the outside. I believe another handy man special done by the previous owner.

  • 4 years ago

    Kandrewspa
    Previous owner enlarged the master bathroom and instead of running the drain pipe to the (main line?) he took a shortcut, because the master sink is right behind the dryer wall. One would think paying a home inspector $500.00, that it would have been mentioned in the report, or during the inspection.

  • 4 years ago

    I'm referring to the connection at back of the dryer regards to airflow restriction.

    Revising it for exhausting out the right side will (presumably) make it a straight ducting shot to the exterior wall and eliminate that situation. Note that disassembly of the dryer is required to change the internals for side exhaust. The manufacturer probably/hopefully offers a conversion kit. Best to check the installation instructions (may be in the user manual or may be a separate document) for the details. Call an appliance servicer to do the conversion, or a competent handyman.

  • 4 years ago

    I got a quote of $350.00 to re-route the vent out to the side. I priced out a smaller less deep dryer at $500.00 and could sell this dryer. Thoughts?

  • 4 years ago

    DIY--cost of conversion kit. Lots of Youtube tutorials. Some dryers are more complicated than others. This one (GE Ultrafresh) is extremely easy because of the access panel.

    https://www.youtube.com/watch?v=cf9Txmciza8

    (Use foil tape designated for dryers instead of duct tape.)

  • PRO
    4 years ago

    Anything to keep a full size dryer…

  • 4 years ago

    Yeah, looking at the back of a few Samsung dryers and it looks as if the conversion is pretty similar ( -> easy) to the GE posted above.

  • 4 years ago

    Samsung said the drum needs to be removed to re vent the dryer, and that is out of my comfort zone. I’m going to go buy a telescopic vent to see if it will work.

  • 4 years ago

    Hi Friends!
    Thank you for all your advice. I wound up swapping places on the appliances since the washer was smaller and pushed back farther with the water pipe behind it.
    Now I have enough clearance to put on bifold doors, fingers crossed.
