How to remove spindle from this lock?

11 months ago

I have an old mortise lock and the latch mechanism is not working so I was trying to check if it was the latch spring that is broken. In the process of disassembling lock hardware, I am at a point where I am unable to take the spindles out. I tried removing them straight out from both sides but no luck.

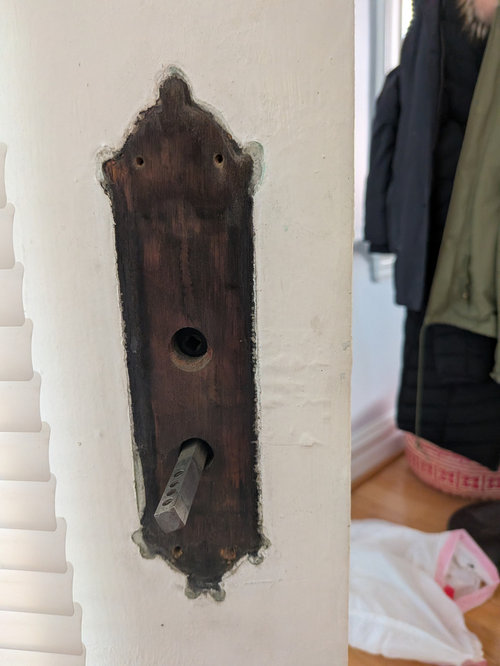

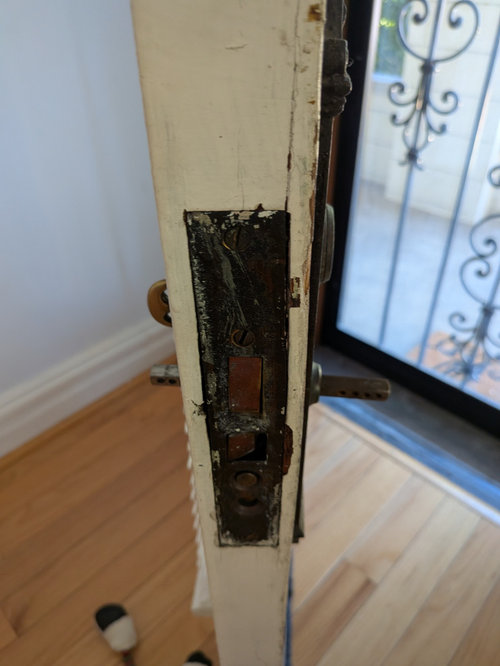

Attached are a couple of pictures.
Thank you!

Sort by:Oldest

Comments (5)

elunia
11 months ago
Try some WD-40 and a mallet
klem1
11 months ago
And if that fails use a bfh.
Related Professionals
Newport Home Remodeling · Laredo General Contractors · Winston-Salem Bathroom Remodelers · Charlottesville Bathroom Remodelers · Edmonton Bathroom Remodelers · West Plains Furniture & Accessories · Elmira Furniture & Accessories · Elizabeth City Carpenters · Tacoma Carpenters · Johnson City Home Builders · Nashua Home Builders · Macon Kitchen & Bathroom Designers · Topeka Kitchen & Bathroom Designers · Grand Rapids Kitchen & Bathroom Designers · Dickinson Kitchen & Bathroom Designers
Kiran K
Original Author
11 months ago
should I be able to pull them out straight - is that how they should be working? are they two separate spindles? @klem1 @elunia
millworkman
11 months ago
last modified: 11 months ago
Typically 1 solid spindle. I have seen them where there is a swivel in the center and it is actually a 2 pc spindle but still comes out as a single piece. Spray it good with the WD-40 and let it sit for a couple house. If you can get Kroil that will work even better than the WD and is really the better go to for most anything that needs freeing up/lubricating.
klem1
11 months ago
Go ahead and remove both trim plates , the spindle might be attached to one of those. Besides that if it isn't attached you will never be able to get lubricant where spindle passes through latch with trims blocking access.
