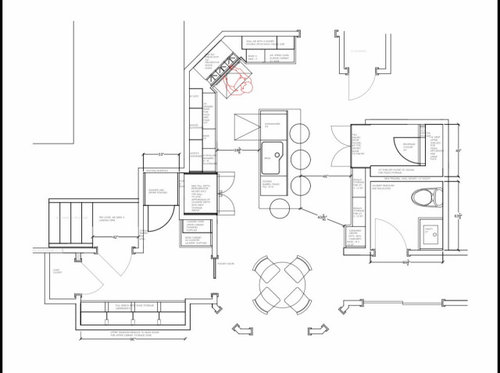

Nobody can read as posted

Every single wall and window needs a dimension

Every "room in the beyond _ needs a label, where does every opening lead?

It "feels tight" because it is tight.

" Other side of the pantry is family rppm ...and that is where as hard to tell , even when this is printed.

More context as follows

The hard measure feet and inches every wall and opening

Where the kitchen sits in your whole living floor

Jpegs of the existing kitchen and surrounding areas, all angles

And again..........the informative layout, legible, all dimensions , everything.

Not this...

Do THIS, every single wall........and opening and label all

I cannot read your image even when blown up. But, yes, follow @JAN MOYER 's request and post the space with all the measurements in it. She is a freaking kitchen wiz and will have fantastic advice for you, but can't do it without the measurements of the space.

I dislike a main sink on an island. And I wouldn't want a range or cooktop on an angled wall.

Is that a sink in the island? NEVER EVER put a sink or cook top in an island! It 100% negates the use of one for anything else. To your question. What do you have now? I have never understood why one wastes space with separate oven/cook top. Buy a range and move on, unless you cook in an industrial sized space and have footage to fill.

A sink on an island is in no way a NEVER, ever.

The problems here are far beyond the sink locale!

The op needs more context to the entire question........as I said above , so I shall not repeat: )

Yes we need a proper plan . I do not agree a sink in the island is always bad this is my old kitchen with 2 in the island planned for how we cooked my hubby prepped I cooked back to back sinks still aton of room fro use . But we need every meausrement clearly marked to even beging to help

From the dimensions I can read, I strongly suspect there isn't room for an island. Trying to cram one in is just going to produce a cramped, maze-like kitchen.

Pulled out my big magnifying glass and still can't read the writing on the plan, even when expanded.

^^^]

Illegible, even when screenshot, printed, and a double up on glasses : ) lol
