Was going to suggest a similar design, except you might consider switching the shower and linen closet locations, both because you'd probably rather see your flashy shower when you walk in, and because you'd probably prefer not to look at the toilet while bathing. However, it depends on whether that can be done without putting the shower drain too far from the waste (toilet) drain. With this much space, you could also consider a significantly larger vanity than your minimum, or even a double.

I was trying to do that, but there is not enough room if you want to make the tub centered with the window which makes it look much better. It make the shower very small in comparison being on the other side where you have more room and you end up with a 48"+ shower depending on the tub size.

ah! hadn't internalized the foot difference. of course, they could use a freestanding tub instead of a drop-in, which *might* allow a few more degrees of freedom (including diagonality). but your point is well taken.

GN Builder, how many inches is the walk-way between the tub/shower and vanity/toilet? Would be helpful to see the dimensions associated with the design. I'd thought of something similar, but was worried it would be too tight between the tub and vanity, with there being only 72" of space from wall to wall. Alternatively, could the shower/tub be placed on the opposite wall, and the vanity toilet be placed on the 108" wall?

sjb2814, would love to see a sketch if at some point you're able to upload one.

My bad....I read the dimension upside down, I thought it was 89" as I remember, you must have only 68"?, because I remember using 21" vanity and 36" tub leaving 32" in between. I guess that layout is out the window :-) when I get home I will try move a few things around.

Yes, it's only 68"; I thought it would be awfully tight, although I was hoping maybe you knew some building magic trick that I didn't. :-)

This just popped up just for you: [https://www.houzz.com/magazine/room-of-the-day-a-bathroom-thats-simply-efficient-stsetivw-vs~58094431[(https://www.houzz.com/magazine/room-of-the-day-a-bathroom-thats-simply-efficient-stsetivw-vs~58094431)

you will need to move wall in closet by 1' to make it work. Just my thoughts see if you like it.low walls between shower and tub and glass on top. low wall between sink and tub with glass on top. 42" vanity with sink works well. private water closet. I had a little time to play with this one.

i did a 2D drawing but it wont paste to

Property Serv, which closet wall would need to be moved? I do like the idea of glass between the shower and tub, since it gives the illusion of more space, but it will depend too on which wall the shower is plumbed to; I don't want to reach in to turn on a shower on a back wall and get wet. :-) A private w/c is always nice; do you mean completely enclosed, or just an alcove space where the toilet would be?

With your narrow and long bathroom, you can still achieve a
spa-like atmosphere with a Geberit in-wall system and wall-hung toilet. The
Geberit installation system will hide all of the plumbing hardware behind your
wall, saving precious inches. The system lifts the toilet off the floor to make
cleaning easy, an important consideration in such a confined space. A wall-hung
toilet would be perfect for your newly renovated bathroom. Check out our Instagram page
and Houzz page
for more bathroom inspiration.

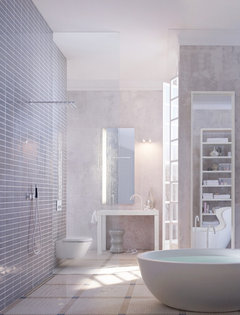

Contemporary Geberit Bathroom · More Info

Serene Geberit Bathroom · More Info

Honestly, I hope you'd drop the 2 doors that mirror each other, and just put one doorway, with pocket doors or even a 2 door entry, in at the entrance to the bed/bath/closet, access hallway. If you feel "to naked" with that, go with a double door set up to the bedroom, and swinging bar room doors to the bathroom., and dual pocket doors into the entry hall to that suite of rooms.. If you ever need a walker or a wheelchair, or crutches, those parallel doors to bed and bath, will be the first to go. Make that hallway entry as wide as the closet wall is, to give you plenty of angle to enter the furniture thru for either room, bed or bath..

I think you should first decided about the closet.... do you have hanging items on both sides of the length? if so then you can't take dimension away because you will lose walking space - otherwise you could change the depth of it and open it from the bedroom side instead of the "hallway" - then add those dimensions into the bathroom....
