Code for bath near a window

9 years ago

I have a plumbing inspector complaining because I'm putting a free-standing tub in front of a window, and he thinks that's a slip (and fall out the window) hazard -- he wants the window bricked up!

Can anybody explain the part of code that's relevant here? I mean, we see tubs near windows all the time, so I can't tell whether the problem is the nearness of a shower on the other side, or the absolute distance between tub and window/wall, or what. Without being clear on this, I don't know how to go about fixing the layout (if I even can) so that it's code-compliant and still makes me happy on the design front.

I suspect I'm missing a subtle point in his explanation, or maybe it was just the steam coming out of my ears that blocked my hearing, heh. Anyway, thought if I could chew over the code at leisure, it might all clarify in my head. Appreciate any guidance!

Comments (31)

  • 9 years ago

    Needs to be tempered glass.

  • 9 years ago

    Well, I know that -- still a long stretch from there to "need to brick up that window" !!

  • 9 years ago

    Inspectors rule, best not to upset him or u will find ur self ever more uptight. Lol

  • 9 years ago

    I'd be confused, too, acm! And, I'd not only WANT to know what his reasons are, I'd NEED to know! Show me the code, mister!!

    Besides, isn't the plumbing inspector there to inspect the plumbing?

    acm thanked Sammy
  • 9 years ago

    Yeah, well, we had a guy out to turn on the gas, and he had to come back twice because he kept changing what he wanted done with a particular gas pipe (or rather, two inspectors asked for opposite things -- third time the charm on that one). So I guess it's a wide realm of inspectorhood.

    Fred, where are you with some relevant code? I'm honestly ferfuddled.

  • 9 years ago

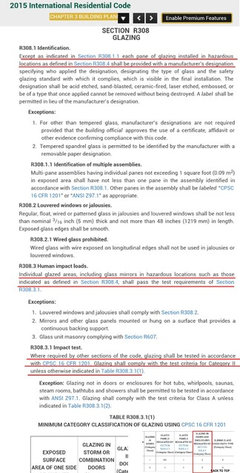

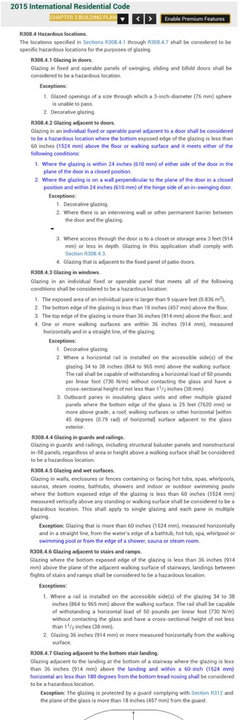

    Section R308, especially R308.4.5

    And maybe section R312.2

    http://premiumaccess.iccsafe.org/document/code/553/9807076

  • 9 years ago
    lol......If the window is properly insulated what is the problem. What home do we ever go in that doesn't have a window near the tub or shower. How high is the window.....did you think about putting a heating lamp in ceiling
  • 9 years ago

    How low is the window --how many inches from the floor to the window?

  • 9 years ago
    last modified: 9 years ago

    @Fred -- am I supposed to be able to open that document? I don't seem to have access... :(

    @leelee It's a low window, but high enough that I figured you could use the ledge for storage or candles. anyway, look at these:

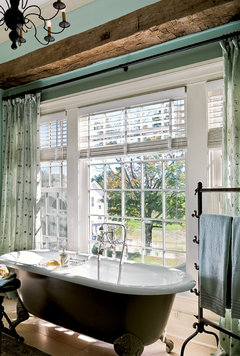

    Arts & Crafts Bathroom · More Info

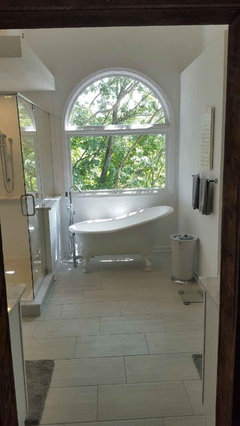

    Modern Villa - Master Bath · More Info

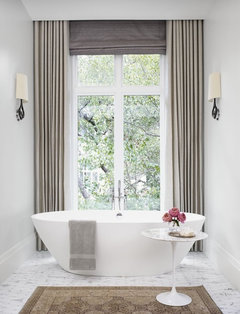

    Crisp Architects · More Info

    I mean, I know that glamorous shots aren't always to code, but I feel like I'm missing some other detail that makes my (already roughed-in, ready to close the walls) layout unworkable. Maybe it's having a window on one side an a glass shower wall on the other? Too little free space in front? Somehow the communication between my contractor and the inspector was inadequate to clarifying this...


    30th Street Residence · More Info

  • 9 years ago

    Can you click on chapter 3 from here?

    http://premiumaccess.iccsafe.org/document/toc/553/

    acm thanked User
  • 9 years ago

    the link is clickable for me but not individual items, like 'chapter 3'.


  • 9 years ago

    acm, next time give the inspector rum cake and not gingerbread cookies?


  • 9 years ago
    last modified: 9 years ago

    Wow, by that wording, any normal window that's less than 5 feet off the ground and less than 5 feet from the tub is a hazard, so I guess basically all of these tubs by windows are illegal. Which seems over the top. Am I missing something else?? Is my inspector just playing hardball?

  • 9 years ago

    Time to get out the bricks and white play-doh.

  • 9 years ago
    Where was the tub before? City/county Inspectors are nothing but money grabbers.
  • PRO
    9 years ago

    What a racket. That's all I've got to say about that. I could tell you stories.

  • 9 years ago

    You need to start reading that section from the beginning. That is why I did not want to try to post photos of the WHOLE section.

    Talk to your window provider to see what will comply....after all, glass shower enclosures are still legal... there is a "clear" alternative to glass block.

    acm thanked User
  • 9 years ago
    last modified: 9 years ago

    In other words, every sliding patio door, french door, door with more than 9 sq. ft. of glass (3×3), and shower door also has the same type II glass that is required to be in the window in this circumstance. It is not that you can't have a window, it just has to have the correct glass.

    A plumbing inspector is not certified to be the building inspector, which is the one who has the authority on the window. You may have inspectors that are certified as both, but this clown obviously does not know enough to be one of those.

  • 9 years ago
    I know your asking about building codes but where is the bathroom picture in question
  • 9 years ago

    What about when you step out of the tub and slip on the floor and hit your head on the side of the tub?

    Better get a helmet and some skateboard knee and wrist guards, too. This is a dangerous world we live in.

  • 9 years ago
    no photo -- it's just an empty space with some plumbing and wiring right now...
  • 9 years ago

    The plumbing inspector is there for the plumbing...period. He has NO authority to tell you to close up a window.




  • PRO
    9 years ago

    There is no reason why you can not solve the problem with tempered or other version of safety glass.

  • 9 years ago

    "CERTIFIED CODE OFFICIALS

    As of Apr. 10, 2009, the only persons who may legally engage in any aspect of UCC enforcement are those who hold UCC certification in each category of work that they perform."

    http://www.dli.pa.gov/ucc/Pages/Certified-Code-Officials.aspx

  • PRO
    9 years ago

    Here is one we did in Metro Nashville. The inspector walked up to the window and saw the tempered sticker in the corner and handed me the green tag.

    I have found out talking to inspectors and homeowners, people who pull their own permits usually have the most issues from inspectors. Typically, the city wants homeowners to use a licensed contractor. It helps offset the city's liability.

    Transitional White Bathroom with Sliding Barn Doors · More Info

  • PRO
    9 years ago

    Unfortunately true, but not entirely fair, do you think?

  • 9 years ago

    "offset the city's liability"??????? You have GOT to be kidding me! I have flipped in several cities and States and NOWHERE I've been has the "city" had ANY responsibility if an inspector passes something that later results in a problem. Sorry to rant at you but, IF you have any proof (winning lawsuit etc.) I would love to read about it.

  • PRO
    9 years ago

    I think that is just "an excuse".

  • 9 years ago
    Screw the city/county-inspections. Why bother?
  • PRO
    9 years ago

    I think you ask the building inspector what is required and I agree the plumbing inspector inspects the plumbing and can make suggestions but they are out of his realm of responsibility an in this case a tempered glass should make everyone happy honestly you cannot make a house safe for every contingency or idiot proof it either
