No plan showed up....

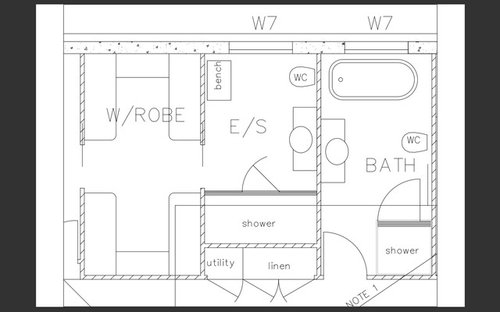

Yep, Accidentally saved it without adding the layout... It would be so much easier if I could add a PDF and not have to convert it first to a photo.

please supply dimensions and a view of the whole house plan would help

As I said in the main post... The room sizes are 2.1m wide and 4.2m long as I said above... both are the same. Their over all location in the house can not move, the only wall that could be moved is the dividing wall. No I don't want post my whole plans otherwise I would have.

what size is the main bathroom, how much floor space is necessary for the ERV and where are the windows in the master bedroom, what's on the hallway side of the family shower...could the entry door to the family bathroom be changed.... location of doors and windows and identifying what is further along the halls can influence location of doors between master bedroom, wiw and ens

I think you have the optimum layout for the ensuite, however I would go for a walkin shower rather than having a door. The main bathroom could perhaps be changed a bit.

Hi pummers, this photo shows an alternative set up for main bathroom. This will give you a bigger shower recess area. And more room along one side of bathroom. Thanks

Dreamer, my only concern with a shower bath layout like that is cleaning it. The chance for mold to thrive on the back side of the bath is massive. This will also be my kids bathroom so I do like the ides of the wet space in one spot.

Perhaps something along these lines, with the walk in shower next to the bath. There’s currently not much room for towel rails in your plan. And the shower door eats space. This suggested plan would give you room for towels opposite the vanity. This plan is 3.6m x 1.8m so in your room you’d have room for a larger vanity. You could also swap the vanity and toilet. And a walk in shower is great if you are planning to still be in the same house as you age.

Seems quite good to me. Can't see anywhere that would need changing to improve it.

Aside from going with a built in bath perhaps.

If you wanted to change it you could make the ensuite narrower and bathroom wider?

Genkil, I'm intending to stay in this house until I'm wheeled out one way or the other. The ensuite will be my disabled access bathroom if required. The main bathroom will be for the kids...

So if I go for the walk-in shower I will build the bath in which has been a though floating in the back of my head for a while. I would also swing the door to the middle and put the WC behind the door to hide it from initial view.

MB D&D, I have toyed with the idea for a while about doing a built in bath in the main and a clawfoot bath of some sort in the ensuite as it is a wife requirement.

I can move the dividing wall as required, just the overall foot print can't change. Same as I can change the size and orientation of the linen press and utility shaft space as required, but it has to be set before the floor is poured.

MB D&D, Noting your location do you have any contacts for BAL-FZ roller shutters? I will only need shutters for 5-10yrs until the area is developed then it all becomes a non issue.

BAL FZ shutters are a bit of a headache.

I don't have any suitable contacts at this stage aside from Paarhammer. Its worthwhile investigating the use of FZ windows and doors such as Paarhammer rather than shutters. Many appear compliant but even the certifiers are now finding that the shutter certification is invalid....could only be some text in the paperwork but this needs to be addressed before the certifier will approve.

Pummels, genkii and myself have the same idea for the main bathroom. Install a built in bath, not a freestanding bath. This would solve your cleaning and mould issues.

Hi Pummers, this is another alternative for main bathroom.

siriuskey, I looked at that and similar styles some time ago, but it was vetoed by head of design approval.

dreamer, that is an option too, but I would end up with the shower next to the window which is why I think it ended up behind the door as a standard 900mm sq shower.

My kids will think they are living in a resort as it is... as much as I love them I don't want them to stick around forever.

Pummers, nothing wrong with incorporating a window in a large shower recess. But I get what you mean regarding the kids. My young adults are hanging around. But, I admit, the house would be quiet without them.

Our kids bathroom has exactly the same layout as your proposed bathroom. I think ours may be a bit shorter in length though than yours. Our vanity goes from the open door position to the bath edge and the shower has an angled front so there is enough space to open fully, with only enough room for a hamper between the shower & toilet. The towel rails are on the back of the door.

I think a bath would suit the ensuite a bit more especially in your above comment where you said it was a wife requirement, from my personal experience kids tend to use showers way more than baths anyway (its only when theyre younger and need supervision theyll use the bath and then again when theyre teenagers and into those 'Lush' bathbombs lol) Is there a way to enlarge your ensuite a little more, and maybe give the kids bathroom a bigger shower? Also, two baths might get to be a hassle over time with cleaning, especially if one is not used very often.

Remer, I have kids in both categories. I have one little one the will be using the bath and a tweeny that will want to be doing the bath bomb thing by the time this house is built and the teenager that will likely only ever use the shower...

Hi Pummers, I like dreamer's idea of wet zone at the inner end of the bathroorm, it makes so much more sense and makes it all feel so much more spacious than having a shower cubicle just inside the door. I also totally agree with your concerns regarding mould and the uncleanable spaces around the modern trend of free-standing baths. Luxe Delta is a bath I have used on a couple of projects that has that look but addresses those concerns, with the modern shell look but in a corner.

Having just renovated a bathroom and being unable to change the position of the shower...I would NEVER have a shower next to the door as you walk in if I had the choice.

Most often you are going into the bathroom to wash your hands, then having to walk past the shower to get to the basin. This means a narrow path past the shower plus over a bath mat or possibly a wet floor.

I think access to the basin should be the priority, with the shower on an external wall, preferably, so when it leaks it doesn't flood your hallway!!

I would put a double sink in the ensuite, and make the shower standard size. How often do you really need a double shower?

Also having a separate toilet, rather than in the main bathroom is a great idea.

Our main bathroom is set up the same with the shower door opening against the heated towel rail; it's annoying.

Hi Laura, As I said originally the layout was default buy the architect, I like larger shower, my current ensuite is 1500 wide and so is the shower.

There are other toilets in the house so, there is one in both the ensuite and main bathroom...

As for your towel rail issue... I'm also enough smart enough not to do that as I have renovated several bathrooms over the years and some have been as small as 6' square and have had towel rail issues in such small spaces.

Hi Pummers, no architect worth that title would ever just provide a default plan. The architect's JOB is to discuss your needs and wants with you and work that into the design, often through a number of revisions until you are satisfied. If he/she doesn't do that, speak up about them not giving you proper architectural service.

I know about the problem of space for towel rails in a small bathroom. What I have done in such situations is to fit 2 towel rails on the back of the bathroom door, one at 900 and one at 1800 height. That usually works very well.

another reason to use hinged doors wherever possible

As this is your forever house, I would have concerns for the long term. An Universal Access code need to come into the plan so could have room for wheel chair or walker.

http://summerhousing.org.au/wp-content/uploads/2017/12/SH-Design-Guide-Part-B-5-Accessible-Bathroom-Ensuite.pdf. Gives some ideas. Wide doorways are needed. a shower area without a lip or glass panel/door. A toilet that allow ease of on/off.

Bathrooms
Wise Ways to Grow Old With Your Bathroom
There's no need to scrimp on style when you're planning a safe and accessible bathroom for your twilight years
28/2/16

Hi Daniel, I asked for a generic layout as I had no idea what I really wanted at the time the plans were originally draw up and the layout was in one of the same plans I had used from several designs... So it was from a commercial plan that is in use, just on a slightly longer and narrower space than in the original.

I played with several plans from a number of builders in the style I was after then took what I wanted and worked on a whole house layout, The bathroom layout was common to a number of designs.

oklouise, are you referring to the the main access for or a hinged shower door WRT the towel rail discussion above?

kbodman14, I have been looking at wider doors as I have the space in most rooms, though the house is two story and the only way possible to access the lower level is externally if you are in a chair of any sort.

Pretty much the same layout as your proposed plan. 3 teens use this successfully. It is 15 years old and not very “interesting“ style wise but very functional. Has worked from baby stage to now without issue.

i was referring to the comment about the back of a door being a useful place for towel rails and, given the choice, i would not have a hinged shower door as they drip water on the floor

Installing a double sink vanity with that standard size shower. I agree with this idea @laurawatson
