How many brackets would you use for this floating desk?

5 years ago

I am building an 8 foot floating wall desk in my office.


The actual desk "countertop" I purchased from Ikea: https://www.ikea.com/us/en/p/karlby-countertop-walnut-veneer-70335212/

Thickness, veneer: 1/8 "

Length: 98 " -> I CUT IT TO FIT MY SPACE, 8' (96'') EXACTLY

Depth: 25 5/8 "

Thickness: 1 1/2 "

Top/ Edge:Thick walnut veneer, Oil-acrylic

Back side:Laminate

Main parts:Particleboard


It weighs ~87 lbs.


I first installed a 2x4 x 8feet directly into 6 studs along the wall for the shelf to sit on along the very back. ( I put TWO 3'' screws into each stud).

I put a 2x2 x 19'' cleats on either side but each side had only 1 stud, so this was not enough support.


I found very strong L shaped brackets, so I purchased two to put on each ends of the desk.

I then put a 2x2 vertically (directly below the horizontal 2x4) into the stud on the two ends to provide the same plane for the bracket to sit on.


(Bracket: made of steel, 30mm (1-3/16'') W x 550mm (21-21/32'') D x 361mm (14-7/32'') H; Weight capacity: Up to 1200 lbs. per pair *, For 12" - 24" deep shelving

  • Wall mount, work surfaces or table top installation


I screwed in the brackets into the 2x4/2x2 as well as directly under the countertop.


My question is - I have 4 studs in between the two brackets.

Given the length of the desk (8ft) and i plan to put a laptop, printer/copier, router/modem, light, etc. How many more brackets should I install (and where)?

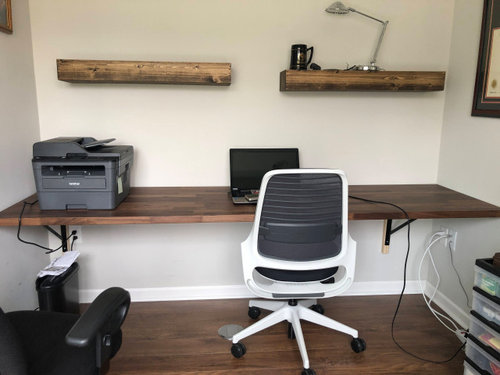

Here are pictures of how it looks currently:

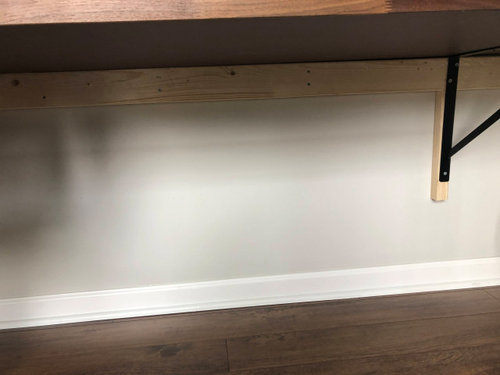

THIS BRACKET BELOW IS THE ONE TO THE RIGHT OF THE WHITE CHAIR


THIS BRACKET BELOW IS THE ONE TO THE RIGHT OF THE WHITE CHAIR
