There's no way in the design that the box can tie in to the ceiling in our case.

There is approximately ~13 sqft. I don't know the exact weight of 3/4" quartz but at 15lbs / sqft it would be approximately 195lbs.

@User it was one of the first that came up on google that showed a quartz range hood so ¯\_(ツ)_/¯

I'd want a couple 2" square tubes fabricated to protrude from the wall framing so I could test fit the plywood box before the estone cladding was adhered.

Hi - did you ever figure this out? i want to do the same thing exactly for our kitchen remodel and the frame to hold up ans secure the quartz has me baffled how we will feel confident it will hold

Without steel tied into the studs and the rafters, that will not be nearly enough support. It will come crashing down.

FWIW the adhesive used by the installers was https://www.mpi-solutions.com/blackmamba/

Nice, but what holds up the plywood please?

The plywood is a full box and screwed into the studs from the inside.

but it's only screwed into the back? I think that's what Joseph is asking. That's a lot of weight on those screws.

Yes it's screwed into the back

I calculated the weight to be approximately 195lbs. I could hang on the box without movement before the the quartz was installed.

The installation is warrantied and this is how they say they've done many installations without issue.

that's good that it is warrantied!

Your moment of a load by hanging on it is a lot different than a constant load.

@zenfe doing the same for our hood, but our fabricator says it’s not possible to wrap in quartz because how would it be accessed for repair or replacement issues in the future? Do you have any idea?

@Sana Jilani, the hood fan gets installed from underneath in our case. So if there's a problem we can remove the fan unit separately.

Underneath the box is a stainless steel sheet that is recessed up ~1" and covers the bottom. A rectangular cut out in the stainless steel sheet allows for installation of the hood fan unit.

Thanks! Have you had any issues with the way it was wrapped/installed so far? We are also doing quartz.

@zenfe thanks! Have you had any issues with the way it was wrapped/ installed so far? We are also doing quartz but we’re hoping to go all the way to ceiling if that’s possible

No issues. Looks the same as the day it was installed.

@zenfe thanks for the info. Does this construct require a specific hood or any wall mount would do?

Any undermount range hood will do.

@verbo thank you

@Verbo my contractor suggested sheet rock instead. Any thoughts? Many thanks in advance

I have done the exact same quartz wrapped hood as you have and my kitchen person also built a box like yours out of plywood. Have you had any issues? Do you have pictures of how the plywood box was contructed on the inside? I am so worried that my quartz will fall and kill us all!!

Still holding strong. No issues 2 years later.

Sorry I don't have pictures of the interior of the box.

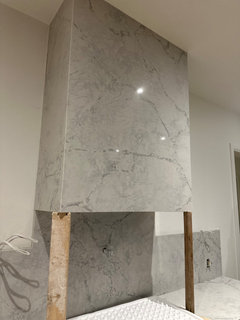

Thanks for your response. Here is a picture of my final product and the plywood box i hope the plywood support will be strong enough to sustain the quartz. I’m a bit paranoid 😳 Three weeks and all good thus far

Hi tom. are you in houston by chance? we are needing a contractor to do the exact same thing

We recently did the same, I believe also with screws but got so many comments saying it's not good support. How has ur hood been so far? I'm also paranoid about safety in future specially with added weight of hood itself. Tya

Drywall screws and a butt joint have no shear strength.

Zumi:

Where do you see drywall screws please?

Does anyone have a referral for someone to install a quartz vent hood in the dfw area?
