Rim Board does not contact top plate ... what do I do?

4 years ago

I am building a 4500 sq ft workshop.


Just put my first piece of rim board up (Weyerhaeuser 16" LSL) ....

Now the error in my concrete and walls shows up ...

On a 16 ft span (the total length of the building is 52 ft ... this is just the first piece), it touches in the middle with almost a 1/2" gap at each end!

I assume the correct thing to do would be to cut a bunch of spacers ... put them under the rim board and under each floor joist ... and I would have a lever 2nd floor.

But I can't believe anyone would do this. There must be others with similar issues.

What do "real" carpenters do? Do you just ignore the error ... let the 3/4" floor sheeting just ride over the error and bent as it will to make a smooth transition?

I tried to make the walls the same size ... I think they are close. I am guessing a lot of the error is in the concrete pad. the center is dry and I have almost an inch of water sitting at some places. I should have put a row of block down and made it level but way too late for that now ... all the walls are up.

Just wanted to check in with others and see if I can leave this and just go on or if I am looking at a major problem by doing this.

I don't care how perfect the floor is .... it will only be an attic storage space.

The bigger problem in my m ind is there are 3 piece trusses and one end will be sitting on this wall so they will be up and down by as much as 1" ... probably more like 1/2"

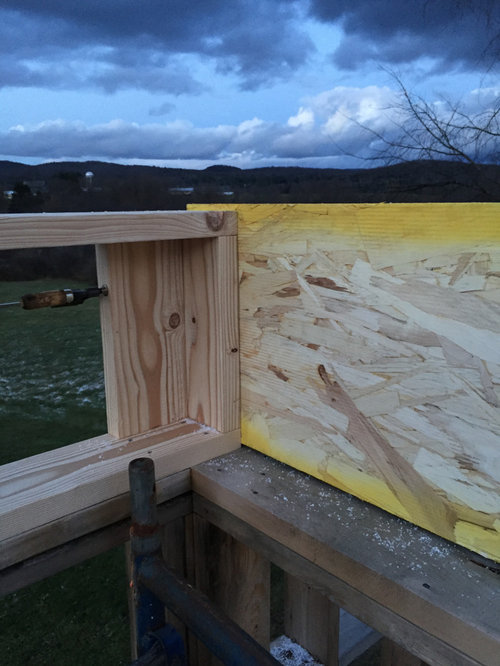

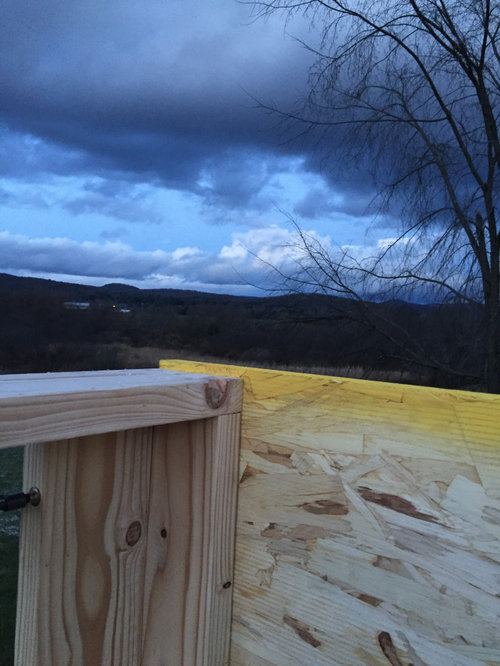

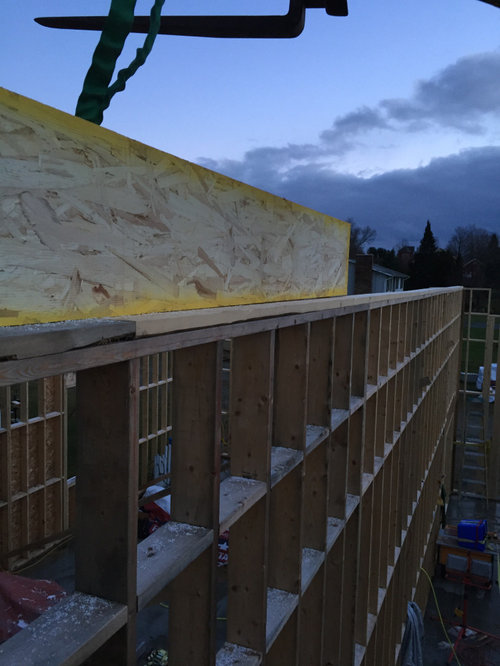

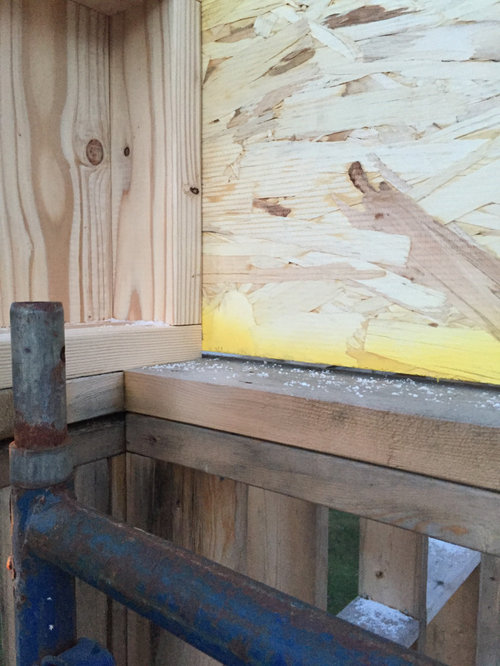

I took a few pictures with my phone while I was up on the scaffolding getting it in place (had not used scaffolding since the 80's ... forgot the fun of assembling 3 and 4 sections high by myself ... but the price was right, a friend lent it to me for free ... better than working off a ladder).


Here is a link to some videos my wife put up on YouTube of the build.


Workshop Build

Thanks .... Mike

PS .. yes that is snow of the wood ...






Comments (11)

  • PRO
    4 years ago

    Where are the floor joists? Is the rim joist installed? Have you talked to the builder about your concerns?

  • 4 years ago

    I am the builder ... DIY project ...I have done all the work myself. I was just putting up the rim board before I start putting up the floor joists ($8K worth of them laying in the driveway).


    Really, I am just trying to find out how much of an error is acceptable. I can pull the board down with some clamps ... let the floor have 1/2" of wave ... this is only a shop and the floor is only an attic so I don't mind this. I just want to make sure I am not missing something and that leaving the error will not cause something else to happen that I don't know about.

  • PRO
    4 years ago

    You have eight floor joists laying in your driveway?


    (Humor)

  • PRO
    4 years ago

    You could trim the studs that are high with a sawzall and re nail the plates to them. Then you would have a level wall. Stretch a string across the top of the wall to see which studs need trimming.

  • 4 years ago

    With any construction: you fix an error immediately, or figure out how to compensate - never wait for it to propagate all the way to your structure. So rim is off bad but can be handled. Your floor can not be off and wavy, your roof should not be off everyone will see the waives in your roof.


    Like BobH said: take a sludge hammer and knock off tall studs to make rim lay flat. Hit the rim hard, even if it is nailed to make it flat and level. Alternatively take the entire nailed section(s) below it down. [no more than couple good sludge hit]. You are not going to loose any studs. set your rim level and reframe below.

  • PRO
    4 years ago

    Shim it.

  • 4 years ago

    Thanks guys! Sun is up ... 28 deg ... heading out right now. I will take a look at how bad it is and see what is best .... maybe a combination of driving down, cutting and shimming.


    I was sooooo careful to make all the studs the same. Just hate that concrete was not nearly as good as I thought.


    I should have gone with my original idea of putting a row of blocks around the edge. I could have leveled them.


    Thanks ...

  • 4 years ago
    last modified: 4 years ago

    The floor joists will need to be shimmed at each location as necessary so that the floor decking will be level in both directions. A laser level would help you see where you are. Rent or buy one.

  • PRO
    4 years ago

    If you can trim the studs that are high then the plate will be level and you won’t need to shim any joists or the side rim joist. Since it appears only the middle couple studs are high I’d trim them with the sawzall and be done in about a half hour.

  • 4 years ago

    You need to shim below the bottom plate to make sure your walls are level, that is where you compensate, not at the top plate. Some DIYers who aren't the best concrete finishers even choose to have 2 sill plates - a treated one shimmed, then raise the wall with it's own plate on top of that. Here it sure looks wavy:



    Your rafters will be sitting on the top plate (or if chosen to be on top the floor diaphragm) so it will bite you later if your top plate/floor joists are wavy - translate to a wavy fascia and ridge line, shingles/metal roof panels with gaps under.

    Note the rim joist is not as big a deal as the joists being off, you got a 1/2" here and there on this wall, but maybe you are 1" or more off when you get to another wall.

  • PRO
    4 years ago

    I agree that you need to check all the walls and see what is up and what is down. If you only have this one high spot I would still trim 5’ of top studs rather than shimming 100’ of bottom plate. If there are lots of places that are high then absolutely shim the bottom of the walls up. And stretch a string tight from one corner of the top plate to the other corner to check or use a laser.
