Anyone know what blower motor replacement part I need?

4 years ago
last modified: 4 years ago



The specs on my motor are its by GE motors, hp1/3, 240v, 60hz, RPM1050, Amps2.80, PH1, The other numbers on the motor, are CPM 620-8100, 5kcp39gg, F654AS. The shaft thickness on the motor being half inch across. The motor also rotates clock wise when looking down at the motors rotatory shaft from the fan blade. also the plug in on the motors end wires are a single row of 5 wires colored, red,yellow,blue,black, next not used, and last wire is orange. These wires are in a single row type plug. If anyone comes across a replacement motor with all these specs matching or working then please give some links, or email them to stevensrd1@yahoo.com

Comments (11)

  • 4 years ago

    What part of the motor is broken? Outfits like ereplacementparts.com and others will often show you good quality diagrams of all of the parts with part numbers and the opportunity to order them at a relatively high price (it's convenient, though!). Alternately a local motor shop can fix a wide variety of problems with electric motors.


    Alternately, if you need the whole motor, googling the part number you gave above lists many sources for a replacment-- it's apparently a pretty common motor in HVAC systems.

    steve dickens thanked rwiegand
  • 4 years ago

    Would you happen to have some links? Ive found some close but no matches to all the specs.

  • 4 years ago

    Is this motor for an air handler? The best way to do this is to get the model number of equipment and search for the manufacturer's documentation. There you will find the part number of the motor. Try calling supplyhouse.com. Someone should be able to figure out what motor you need. You should be able to get it with the correct connector.

    steve dickens thanked mike_home
  • 4 years ago
    last modified: 4 years ago

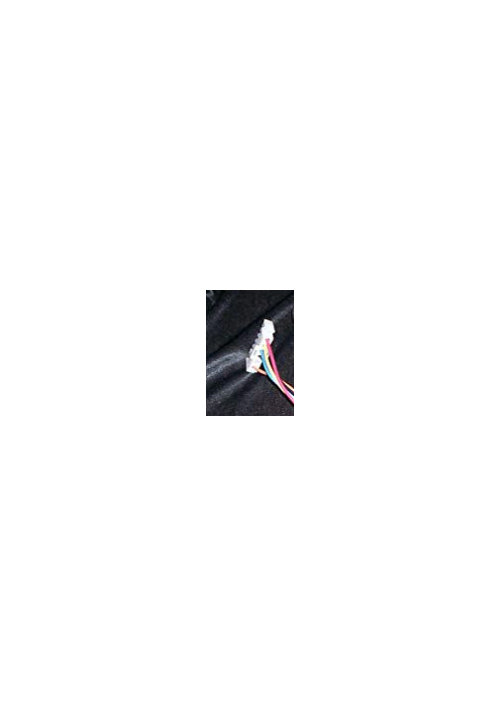

    I think so, inside in a trailer, I have an intertherm furnace. The model is E1EB-012HA and the serial is E1E9506-04067, measuring across the back of the motor is 5 5/8 but I need a motor that will work with the specs of the old motor or be a suitable replacement. Many people refer other motors to me but the plug in on the end of the motors wires never seem to match the plug in on the end of my current motor, which is a single row of 5 wires colored, red,yellow,blue,black, next not used, and last wire is orange. Obviously Im new to this and not a professional, but i do know how to swap out the motor and put another in it, Ive had it out before to oil it. That worked fine oiling it for a few years but now sometimes it dont spin and must be spun by hand. So Ill be getting a new motor to replace it, if I can find he correct one. Im not even sure what of the specs of the motor can vary or must they be exact. Learning as I go I guess. If I can find just one motor online that im sure is a correct replacement with the correct specs listed and the correct end plug, I can use the specs on that to find another that I can afford. Thanks for your reply

  • 4 years ago

    The motor connections are usually application specific. Therefore, the connector may be unique to your furnace manufacturer. You may need to use the connector from your old motor on your new one.

    steve dickens thanked sktn77a
  • 4 years ago

    If it runs when you spin it up by hand it's very likely that the start capacitor has gone bad. They only cost a few dollars and are usually easy to replace. You don't need an exact part, just match the mfd rating and voltage and if it physically fits where it needs to go you'll be fine. A motor shop could tell you if this is the problem and easily fix it if you're not comfortable doing it yourself.

    steve dickens thanked rwiegand
  • 4 years ago
    last modified: 4 years ago

    I did a quick search on furnace E1EB-012HA. It is an electric furnace which explains why you need a 240V motor. I found it uses a blower motor which is a Nordyne part number 6216420. The motor is a GE brand 5KCP39GGS611S. You can order the motor from North America HVAC which also sells it on Amazon. I also found it at Repair clinic. I can't tell if the comes with the same connector.

    Is there a capacitor connected to the motor? If so, have your tested it or tried to replace it? It could be the cause of the motor not starting.

    steve dickens thanked mike_home
  • 4 years ago

    Think I found it, thanks all it was # 903075 Nordynell
