Water leaking from trough in air handler

I honestly don't know what this part is called, sorry!!


My heat pump and air handler is 21 years old, Carrier model # FX4ANF036. At the bottom of the coils is a trough that pours the water towards a black plastic connector that is affixed to a PVC pipe, and I have water pouring from between the trough and that connector.


Here's the front of it, you can see water pouring:




And here's the inside:



The beige panel is held on by 4 screws, but there's copper piping going through it so I can't take it off. I can only give myself about 1" of clearance between it and the trough.

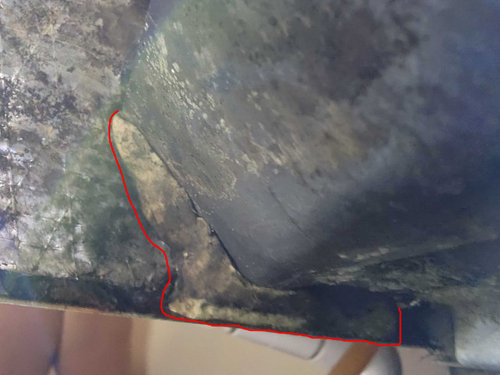

Best I can tell, the part inside of the red is attached to the trough, but it's very hard so it's not plumber's putty:

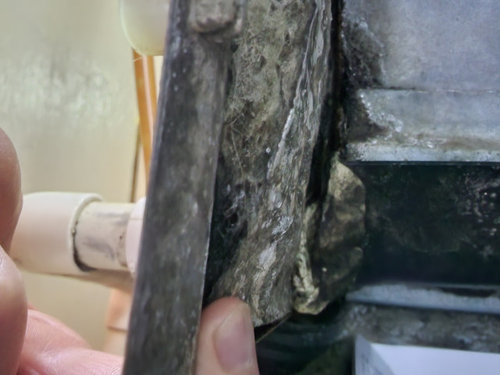

And you can see that it pulls away from that part that looks like putty, but isn't:


Best I can tell, the water is coming from between the putty-looking area and the beige panel. I know it looks like there's a crack between the putty-looking area and the metal trough, but it's definitely not leaking there.


Suggestions on fixing this leak? Considering that I can't physically remove the panel, I'm not sure what the proper method would be other than blindly packing it with spray foam or something.

Comments (7)

  • 3 years ago

    I initially thought it was a weld, too, but it's THICK to be a weld! I forgot about JB Weld, though, and that's really the most likely guess.


    The fact that it's not actually connected to anything is the weird part. I suspect that the previous homeowner had the same leak and just jammed a bunch of JB Weld up there until it stopped.


    I feel like the proper solution would be to somehow get the panel off, then remove the trough and either fix the leak properly or replace it altogether. But I don't know how to get it off with those copper pipes in the way, I feel like it would require pumping down the system first so I could cut the pipes or something :-/

  • 3 years ago
    last modified: 3 years ago

    This is your luck day Jason. First and foremost non of the the regular blowhards showed up to babble about natl building code and bull crap. Before tearing into it,make sure the water isn't the result of clooged drain line. If you are certain there's damage needing repair, "CAREFULLY" cut the section of panel out that has pipes going through it. That will leave a piece of panel attached to pipes and coils but you will have unobstructed access to coils and condensate pan. My tool of choice would be a 4.5 angle grinder with cutting disk. If you don't own a grinder and don't have other use for one, something like a Dremel tool with cutting disks or even a drill motor can make the cuts with enough patience. Patching cuts can be done several different ways. Got it ? Then go get'um.

    Jason, zone 7A, near Greensboro NC thanked klem1
  • 3 years ago

    Condensation is external to the refrigerant conduits. You shouldn't need to pump down anything to seal the drain pan and pipe.

  • 3 years ago

    Sorry, I don't think what I meant came off properly.


    I was thinking more about how to get the panel off, around the copper pipes, so that I could access the leak in the black connector. I'm guessing that those copper pipes carry freon, and I don't see a way to disconnect them anywhere.



  • 3 years ago

    @klem1, your post just now showed up! 24 hours late is better than never, I guess :-/ I DO have a Dremel, though, along with a stack of cutting disks, so I might really go that route. I kinda hate to, though, because I feel like there HAS to be an alternative... how would an HVAC tech get to it?

  • 3 years ago
    last modified: 3 years ago

    This ac tech always cut the panel to avoid pump down and recharge unless there was reason to remove coil. You might only need to cut a few inches making a notch from pipes to panel edge.

    Would you mind saying how you visualize a simpler soultion,much less doing it any other way without specialized tools?

    It isn't unusual my posts are delayed because keyboard jockeys flag them for review while they search online for answers they can plagiarize.
