BlueStar 36" Range-only works with gas pipes flushed to the wall

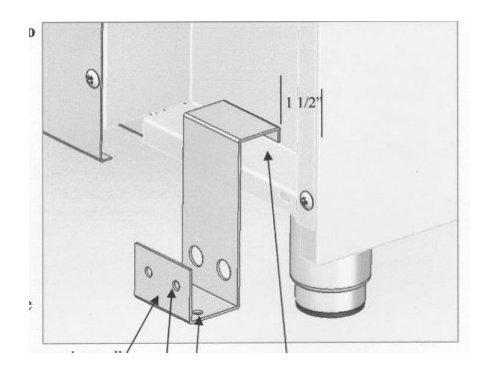

I just got my BlueStar range delivered. Not sure if this applies to their other sizes, but nowhere in their installation manual shows the spec for the gas cutout. Turns out, they only provide a small cutout for the gas line. Our gas pipe is 4.5" away from our wall due to a double-joist in the basement. Normally, this is fine with other ranges, but not with the BlueStar. This BlueStar 36" range has a small cutout, and the only picture in their installation manual that even shows this little cutout is the bracket installation picture (attached).
Turns out, the little metal piece that the bracket sits on gives us only around 1.5"-2" of space from the back of the range to the front of this metal piece, so if the gas line is any farther out, you are out of luck. Our range is now sitting 2-3" away from the wall, and it looks awful! We waited 6 weeks for the range to be delivered, and our kitchen is almost done. BlueStar didn't mention this requirement anywhere in their installation manual. Until you see it in person, no one would know this could be an issue.
We are checking with a structural engineer to see if we can cut the double-joist so we can push the gas pipe closer to the wall. If not, we have to return this range and buy a different one. I want to bring this up to anyone considering a BlueStar range. Measure the distance between your gas pipe and the wall, also measure the distance from the side of the left-side cabinet to the pipe. Then go to your local dealer and ask them to measure the distance from the back of the range to the metal piece and the cutout dimension. If you gas pipe is anywhere too far from the wall or too far from the left-side cabinet, you can't buy this range.
Comments (8)
6 years ago- 6 years ago
Related Professionals
Dover Kitchen & Bathroom Designers · Brainerd Kitchen & Bathroom Designers · Torrington Bathroom Remodelers · Fort Dodge Bathroom Remodelers · Peoria Bathroom Remodelers · Newburyport Bathroom Remodelers · Bakersfield Kitchen Remodelers · Pocatello Kitchen Remodelers · Asheville Kitchen & Bathroom Designers · Seattle Kitchen & Bathroom Designers · Kansas City Kitchen Remodelers · Hattiesburg Kitchen Remodelers · Starkville Custom Countertops · Athens Custom Countertops · Enfield Custom Countertops- 6 years ago
Around here, plumbers seem to prefer putting the gas line into a recessed box.
Or alternatively, if that isn't a good option, then they'll put the gas valve into the floor. That also makes it easier to reach the shut off valve in case of emergencies. Otherwise, I sometimes see a secondary shut off valve in an adjacent cabinet.
As others have said, none of these locations guarantee that the gas line fits behind the range. Every range is a little different, and some of the larger ranges do use almost all of the available space in the back. So, it is not unusual that you'd have to move the gas pipe a little bit.
A good general contractor plans for that possibility -- after all, you never know if a few years from now, the next home owner doesn't want to switch out the range.
- 5 years ago
5 years agoHere is a photo of the back of my 30" RCS v2 that is about five years old:
Here is a drawing from the current BlueStar range installation manual that shows where the gas connections is located. Not sure if the dimensions match, but at least you can get an idea of what to expect:
- 5 years ago
John
