How to safely update a 1980s contemporary stair railing?

5 years ago
last modified: 5 years ago

We're under contract on a delightful 1980's contemporary home. While it needs some updating, we love the architecture of the house, and would like to remain true to its overall style.

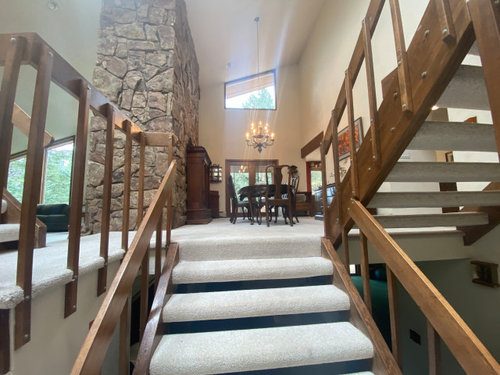

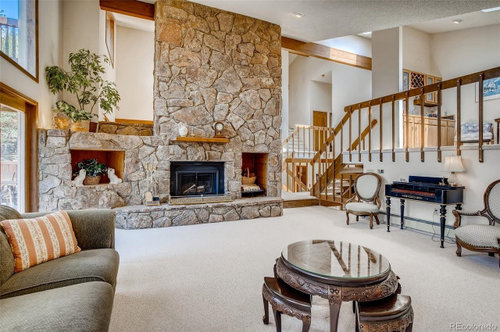

The big challenge: the railings in the great room. The house has awesome 1980s balusters and thick vertical handrails that we'd like to keep. Unfortunately, there are gaps in between each baluster of the staircase railings of approximately 10 inches. We have young children, and would really prefer they not be able to easily push each other through the staircase railings.









Some things we've considered:

  • We like the wood color. (We'll be adding a lighter or neutral hardwood floor in place of the carpet to contrast).
  • We like the fact you can see through the railing and how open the room feels.
  • Adding extra balusters would require us to cut into the floor where it overhangs the rim joist, and will make the room feel more closed off.
  • We've looked at glass railings, but they're a no-go (kids & maintenance).
  • We've considered horizontal cable railings. This is our main preference, but we'd like to add them to the existing structure rather than replacing the whole railing with metal balusters and posts. (Were concerned the current railings won't support the cable tension, though).

So, Houzz folks - we could use your help. Any thoughts how to update this railing for safety and still remain true to its style? Thanks so much in advance!

Comments (22)

  • PRO
    5 years ago






  • 5 years ago
    last modified: 5 years ago

    Since you have young children, I would suggest that you not replace the railing with horizontal components. The temptation to climb up and over might be more than that of pushing a sibling through the gaps.


  • 5 years ago

    Adding another spindle will make it look very busy. You could connect it at the top as the others are and end at the floor rather than going all the way down.


    KC thanked houssaon
  • 5 years ago

    Your railing does not meet code and you are right it is a safety hazard. I’d invest in a new stairs instead of making do until kids grow up.

  • 5 years ago

    Nice house. Is it possible the inspection will show this as a major code violation (in my county, the gap in stir railings can be no more than 4") and the sellers will have to address the issue?

    If not, I like Houssaon's idea.

    KC thanked tozmo1
  • 5 years ago

    This likely reflects code when built and is thus not held to current code- until you touch it, in which case current code comes into play. I too think the best solution is probably combining existing with horizontal cable and turnbuckle system.

    KC thanked Susan Murin
  • 5 years ago

    I think it would be fine to add 1 or 2 spindles between the current ones to meet code but end them on the floor rather than extending them. You maintain the look but update it for safety.

    KC thanked calidesign
  • 5 years ago

    Check your local codes and see if adding an extra spindle will bring it into compliance. This is not a good photo of the concept, but I'm showing it for the size of these iron spindles. How about using two of these skinny ones between each of your existing ones, if you can't meet code by adding a single matching one? It will break things up a bit. I think it will just be too much wood the other way. Since there are lots of bolts in your stair design, you might have the metal ones finished to match those (they look like steel or pewter to me.)

    River Respite · More Info


  • 5 years ago

    @missenigma That's super-interesting. I hadn't ever heard of that sort of safety netting. Not sure that we can live with that for the number of years it would take - but adding it to the list. Thanks!

  • 5 years ago

    @houssaon @calidesign I hadn't considered adding spindles but terminating them at the floor. That could be interesting. Thanks for the responses!

  • 5 years ago

    @flopsycat1 Sounds like you know our kids. :) Agreed on the solid horizontal elements - our 5 year old would be over the top railing before we could blink.

  • 5 years ago

    Safety netting doesn't make any sense because it doesn't fix the issue. You'll need to have the rails up to code before you sell in the future.

  • 5 years ago

    While I love the idea of the black metal spindles between the wooden ones, if you look at the location of the current spindles and their relationship to the handrail, I don’t think it would be possible to have the metal spindles stop at the step. They would be off line. A new handrail would have to be constructed. It is about alignment of spindles to handrail and steps.

  • 5 years ago

    @calidesign wrote: "You'll need to have the rails up to code before you sell in the future."


    That would depend on local building codes and how they are written and enforced. In my municipality they would be grandfathered until substantial and structural alterations were being implemented.


    But if it is true, since the OP is only under contract and the sale hasn't been completed, the current owner would be on the hook not the buyer (i.e., the OP).

  • 5 years ago

    Depending on where you are, if inspections haven't been completed, you may be able to have the sellers give you a credit to bring the railing up to code. Even if they aren't legally required to fix it, it doesn't hurt ot ask.

  • 5 years ago
    last modified: 5 years ago

    @calidesign @missenigma Yep, here (and in most places in the US, if I'm not mistaken) the IRC building code basically grandfathers most everything in until it's modified. Nothing that prohibits the sale based on bringing anything up to code, although you can always ask for it.

    We're going to update this entire room including the railings anyway, so code isn't the biggest issue, as that will have to happen regardless. The bigger issue for us is: how to maintain the openness and distinctive style of the house while getting it up to code.

    Thanks for all the thoughts!

  • 5 years ago

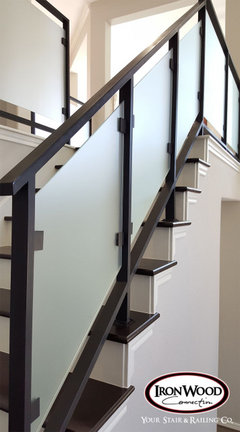

    Since you are going to update the railing, maybe a wood and metal one would work the best. Metal would have a thinner profile. Something like this.

    Big Bear Cabin · More Info


  • 5 years ago

    You'll have a lot of railings! It's going to be incredibly expensive to do some of the suggestions. I have used thin polycarbonate panels for stair protection. Cheap and you can throw away in a few years. Are you sure you can't just tell your kids "If you don't push your sister through the railings by her 10th birthday you'll get a pony."?

  • 5 years ago

    With young kids, accidents happen, and it's not just teaching your own kids to be careful. When their friends come to visit you're liable for them also. I can't imagine not fixing the issue in a safe way right away.

  • 5 years ago
    last modified: 5 years ago

    Clear plexiglass panels. Eight foot panels end to end, covering the wood railings. Just lay them right across the balusters and tack them on.

  • 5 years ago

    I would consult with a staircase company. I think @theresen has the easiest solution for now. But updating them permanently will be a worthy expense for this special house. By the time you have the funds, your kids won’t be in danger. 😂
