Proposal 1

Proposal 2

Hi! Tetheridge! Quite the challenge! I just have to be honest,, this house.Layout will be extremely expensive to get all you want on your wish list. What is your budget for this project? Flooring will need to be replaced which probably will cost 10-15k. There is insufficient space to het proper walk around space even as the architect has tried. Have you purchased this house? Need more info.

Flo! I hope you and yours are well! I am currently under contract, but we don’t close until early April because I wanted to give myself time to get the renovation together. The house has been vacant for some time. I don’t mind the wood floors though. I would be willing to keep them and patch as necessary. My goal is to do this main floor for $80k.

Proposal 2 seems to be the best layout as far as room locations working within the homes footprint and keeping the staircase where it is. Moving the staircase would be the only option to get a large island towards the great room area. If you were to use this proposal I would put the dinette where your den was. If you need a formal dining room it can be certainly be where the architect has it. I have turned the island to put the seating into the dining room to allow more working space in the kitchen but that is up to you. I have not looked too closely at the kitchen at all because I feel looking at the room locations first to see how you feel about them is more important than kitchen design at this point.

I moved the mudroom wall out to match the new pantry wall and closed off the entrance into the great room as that is not needed. I kept the bathroom and office the same since the changes were of little improvement in my opinion. Forgo the renovation of the great room and keep it all the same. Concentrate on the kitchen, pantry and mudroom locations.

Another option is to turn the bathroom to gain some more mudroom/laundry area. Again extending it out to meet the angle of the pantry wall and keeping the great room and formal dining room as is. Hope some of this helps.

This is wondeful, thank you! I actually asked about turning the island! What do you think about moving the pantry all together to get a daily table closer to the kitchen and getting a bigger island? I was thinking a butler’s pantry in between the formal dining room and kitchen would be more practical than a large formal dining room we never use. But then that leaves is with an akward space where the old breakfast nook was.

"Best" and "best known" are rarely the same. Are you too far in (investment-wise) to find someone who will actually LISTEN to you?

I have some ideas but have meeting shortly. Bbl.

That’s a good point! I think I really want rooms that will all be used. We also have a full basement for lounging and a large playroom upstairs. Honestly, a bigger office/library would be nice, but then the current office space would be weird. It’s all a mess!

Ok back from dentist with new temp crown. No big problems! Yay. Great dentist. Up on all latest tech. Happy to get this behind me. I agree with your thoughts on making all your spaces useful. Some things i like about your architects layouts. 1) giving you entry from garage directly into the house. 2) keeping basement stairs where they are. Very expensive to change that location. I like making that “front living room” your office. I am doodling with creating a multi purpose room with the existing eating area and other spaces on right side of the layout. A sort of “Scullery”. If you move or add sinks it will mean plumbing changes which could impact basement ceilings etc. That can get expensive. Rather than trying to squeeze an island into your spaces, think about putting table level 16” deep counter area around the stairway corner with counter chairs. Kids can sit a d have breakfast there. The large windows are great but they also create challenges because you have no real wall spaces for cabinetry. I need to rest a bit and sit down later tonite and try a scale drawing with some thoughts for you to mull over. $80,000 is a lot of money but when you are considering your wish list with kitchen elements it’s tiny. Just don’t buy any appliances or any furniture until you have a firm handle on your design. The more you keep what exists, the further you can stretch that budget.

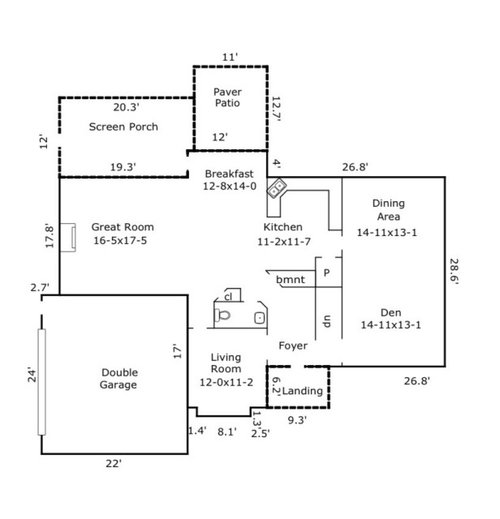

Tetheridge- hi. I love a good challenge and this is one. Lots of potential that i am sure you perceived. So i put an approximate scale sketch together for the space currently the peninsula of kitchen, kitchen, eating area, dining area and den. This is rough and i don’t have specific detailed measurements so this is for “concepts”. Things i don’t know is precisely where are windows. This will drive layout. My “concept” is to get nice table and chairs in setting to see what i think is backyard. Then create another area currently dining area with stainless movable table with storage shelf (possible phase 2; then place refrigerator freezer so it can have access from all 3 areas built i somewhat. The other 3 walls would accommodate a sink, dishwasher, below counter microwave; range/hood (on outside wall) and then configure remaining unitsc to suit your style. Perhaps some antique cabinets or drawer units that spaces

Tetheridge- hi. I love a good challenge and this is one. Lots of potential that i am sure you perceived. So i put an approximate scale sketch together for the space currently the peninsula of kitchen, kitchen, eating area, dining area and den. This is rough and i don’t have specific detailed measurements so this is for “concepts”.

Houzz giving me fits.

This is a Scullery/Kitchen/craft space etc. I created coffee nook where breakfast area is currently. A cozy spot for morning coffee and watching birds and wildlife out windows!

Sorry this posted so mixed up. Hopefully, with your creative eye you can follow my logic.

"What is the obvious answer I am missing here?"

Find different local architect.

Thank you everyone for your time. It’s not something I take for granted at all. Having thought through everything, I think I’ve come up with a plan that *may* work. Could we wall in the the part of the breakfast nook that extends past the current living room and kitchen wall to create a nice butler’s pantry? I suppose we could steal some space from the patio if necessary. Then we would need a door to the pantry but would otherwise have one long, straight line on an outside wall for the kitchen, and if we remove the refrigerator and pantry on the opposite wall, I think there should also be space for a big island. If this works, it would save us a ton too on moving the gas, water, etc. Naturally, I will discuss this possibility with the architect, but I’m anxious to see if there are any major problems with the idea here.

Very costly to change exterior wall. You need 24” depth fir sink cabinet run. You need at last 42” space from sink edge to island. Based on the measurements you posted, i don’t think you have the space to do that. Even with 24” deep island. But Architect can tell you probably over the phone since he has the on site measurements.

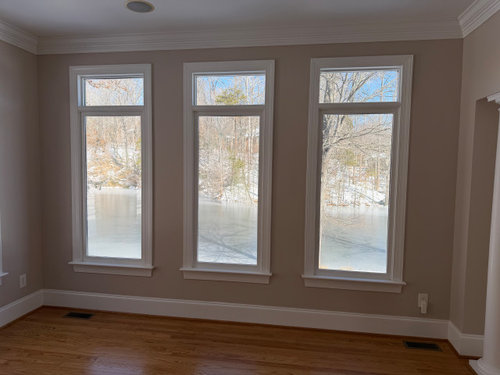

Your plan removes the lovely windows with a space for a table overlooking the patio. covering these windows will ruin the feel of the kitchen.

https://chelseadesignbuild.com/the-difference-between-a-scullery-and-pantry-and-why-you-need-both/. For your process and overall thinking.

I would try to preserve windows as much as possible. You need the light, appear to have lovely outside views, so tried to a avoid messing with the windows. Expensive and great feature of this home. So too many negatives for your last proposal. Sorry. But i have to be honest. I didn’t show much about the entry from the garage but i think that is vital. You can get more closet storage and add some space to the half bath and get some storage in there too. I would talk to a few more architects to get better input.

What is the obvious answer I am missing here?

The house concept does not play well with your programming requirements. $80K will not even make a dent to achieve those successfully. This is not an architect problem, the drawings show they are listening and trying to make something work that shouldn't, which is why it is not good.

The central stretched and angled stair, Powder Room, defining wall between the Kitchen and Dining/Den, Garage entry, how each space is positioned relative to each other, and the size of house are the main challenges. That's pretty much the concept of the house.

The back of the house is narrow, yet you are trying to fit in a Kitchen with a large island that will need much more than 11' wide. With the overall size, when a guest enters the house, it is too far and hidden to the private Family Room, which is why these large houses have a separate front LIving room ("formal" is because it is public, away from other gathering areas, and often enclosed, "formal" is not just a decorating style).

I would suggest evaluating how far you want to take this remodel, and the cost associated with it. Especially since you haven't lived in it yet.

Thank you so much! Everyone has been extremely helpful. If nothing else, I just need a bigger kitchen. We cook together and gather in the kitchen often. And I actually really like the architect. As it stands though, the only thing that could fit in the kitchen right now would be our bottles and sippy cups. Unfortunately, we love the neigborhood, the lot, the exterior, and the pond in the backyard. I really really want to make this work…

Perhaps you should get into the house, live there and save up so you can do a cost effective renovation. Use the existing dining room for simple cabinets and perhaps ikea hacks to accommodate immediate needs. For example, i have used bedroom drawer units for a condo reno and then they used them later in children’s bedrooms. I think starting renovations right now is probably not the best approach. If i used my experience, given what info you have presented i think you need at least $150,000 to meet your wish list. That’s mainly because the current house is so far away from your wish list. Wishing you the best. That estimate doesn’t include renting temporary housing to get out of house to facilitate more rapid completion. One more thing. You need to make sure the cost of this renovation is mainly recoverable at resale time.

😭😭😭

Yeah. I know. But you know i wouldn’t steer you wrong. I want what’s best in the long run. Since you love everything about lot, location etc. Being more patient will save you money and stress in the long run!

Thanks Flo! I think I’d be willing to spend $100k, but after that … idk. I wiill definitely take things slow!

The suggested plans have the refrigerator too far from the sink. I usually prep near the sink so would want the sink and range switched on those plans. Think about how you work in your kitchen.

I’m also more of a lurker than poster but I love space planning and have designed and renovated several homes. It took several years and roughly 30 radically different sketches to figure out how to rearrange my own home’s first floor so I feel your pain. Proposal 2 to me is okay but that mudroom will be very dark and cramped and the bench/cubbies eat up too much space into the office. I’d also flip the range and the sink if you go with that plan so the sink is closer to the fridge. What would you do with the open front space in that plan? If you’d consider bumping the office over to that space you could use the current living room as a mud room with the garage door entering into that space. I know that’s a big mud room but it could serve both the foyer and the garage with lots of storage and seating. It could also be a good spot for a first floor laundry or craft space depending on your needs.

In the plan you drew out you discussed bumping out the breakfast room space for a pantry. An addition would likely be out of budget but if you’re considering it I’d look into making the entire length of kitchen and dining wall flush with the breakfast space. That would give you the depth you’d need for an island. You’d have to remove all of those tall windows in the dining space anyway if the kitchen shifts to that corner so you’d be facing exterior work in either case.

I drew two finger sketches, one with that wall bumped out and one with it as is. As is I personally think a peninsula makes more sense. I hope these ideas help move the process forward. Like I said the bump out may be over budget but if you narrow things down with a couple of rough floor plans you may be able to get broad cost estimates from a builder to guide further decision making.

I’m also more of a lurker than poster but I love space planning and have designed and renovated several homes. It took several years and roughly 30 radically different sketches to figure out how to rearrange my own home’s first floor so I feel your pain. Proposal 2 to me is okay but that mudroom will be very dark and cramped and the bench/cubbies eat up too much space into the office. I’d also flip the range and the sink if you go with that plan so the sink is closer to the fridge. What would you do with the open front space in that plan? If you’d consider bumping the office over to that space you could use the current living room as a mud room with the garage door entering into that space. I know that’s a big mud room but it could serve both the foyer and the garage with lots of storage and seating. It could also be a good spot for a first floor laundry or craft space depending on your needs.

In the plan you drew out you discussed bumping out the breakfast room space for a pantry. An addition would likely be out of budget but if you’re considering it I’d look into making the entire length of kitchen and dining wall flush with the breakfast space. That would give you the depth you’d need for an island. You’d have to remove all of those tall windows in the dining space anyway if the kitchen shifts to that corner so you’d be facing exterior work in either case.

I drew two finger sketches, one with that wall bumped out and one with it as is. As is I personally think a peninsula makes more sense. I hope these ideas help move the process forward. Like I said the bump out may be over budget but if you narrow things down with a couple of rough floor plans you may be able to get broad cost estimates from a builder to guide further decision making.

Forgot to add I put a closet in the proposed office space so it could technically count as a bedroom. You may not need it but it’s always helpful for resale. I know you didn’t want to gut the whole first floor but the great room and half bath wouldn’t change while the office and mud room would only need the storage and finishing touches added.

I actually love this! Sending to the architect now. And it gives us all the important things we need. Thank you so much!

You’re very welcome!! I realized after posting that the peninsula plan doesn’t have a landing zone next to the fridge but if you eliminate or shrink the depth of the closet in the office you can wrap cabinets around that corner. All depends on your specific wants and needs.

Good luck with your project!!

Keep in mind any "bumpout" to match the Breakfast Area of 4' would need a huge beam over your head standing at the counter, and separate the ceiling in an odd fashion. That alone dismisses the idea. Also, the length of wall is over 26', which makes for an uncomfortable Kitchen length in that entire area, and if a 26' beam makes it even larger.

Agreed that building out has significant drawbacks but wanted to at least present that since to me it was the best (only?) way to get an island in the back of the house. Perhaps a 4 foot deep pantry can be built along the back wall to cut down the length of the open span, although that would close the kitchen off from the dining space.

Personally I think the peninsula plan makes the most sense as long as there’s no pinch point at the entrance and there’s not too much dead space in the middle of the u shape. I’d also consider flipping the range and sink from my finger drawing, although at this point in the design process it seemed more important to get the space planning down than the fine details. My other main goal in commenting was to say I think the OP would greatly regret the mudroom design in proposal 2 and that the front living room would make a much better mudroom/library/sitting room/craft space depending on their needs. I know many posters don’t like a fully open kitchen/living/dining space but I adore mine. Pushing the mud room into the great room would really take that away and create a pretty tight maze to get from the garage to the living room.

Quick question: your range hood cover is made of wood, right? It looks like it’s the same color as your cabinets.

Oh, my goodness, you are entertaining ideas that will easily cost $200-300K+ (ask me how I know). Don't even think about relocating your kitchen if your budget is $80-100K. Architects can create awesome plans, but they are not necessarily focused on what those plans will cost to build.

Exciting times in a new house. It looks nice and a nice property.

The popularized 1990-2000s builder's plan that was plopped down here has some disadvantages on this site. So if it were me, I would probably live there a bit to get a feel for how it's good there and not. You can't change certain things, but letting it simmer might lead to how I would approach the remodel, and if taken to the nth degree, would it be worth it to overcome those disadvantages. Keep in mind I'm just piecing this together from a couple pictures and an MLS diagram:

• The red are hard points - the defining wall, the stairs up, and garage door all look like it would be too much to alter or doesn't make sense to in any scheme.
• [A] is where the activity and informal action is, and probably where anybody roosts the most. That is the concept of this design with a straight-to-the-backyard focus and works for that. But, it appears the focus on your site is the pond and yard behind Kitchen. The view to the pond is more limited, and surely that is an important amenity for this property.
• [B] is where the view is. It seems this should be where the Family Room, Kitchen, and outdoor living would be if custom designed. However, with this plan the 13' width just isn't wide enough.

So I would be evaluating if [B] should be an area that the Kitchen expands to. Whether it should stay with a smaller formal Living Room. Or have an Office. If guests are whisked through towards the Family Room as existing or instead towards this side. Whether the entire side should become a secondary Master Suite. And I would be looking whether the basement stair can be moved, as that might be a key to allowing the Kitchen/eating space you desire.

@3onthetree Do you think I have the space for the U shaped kitchen that @Doggiedoc proposed? I probably wouldn’t do the peninsula to keep it from getting too dark or cluttered. I was thinking I could get a free standing island, something like this: https://www.chairish.com/product/25624622/large-banque-de-france-sorting-table-1920 (obviously too long).

Also, the consensus seems to be that I can’t get a kitchen for $100k. Is that true no matter what? It’s a small town, I’m not looking at big city pricing. If that is true though, are there things that can be done in stages? I’m ok with the floors. I can keep my current appliances, source things myself, maybe temporary counters, etc. My father is also an electrical engineer and electrician and will do all of the electric work.

No Island. Not having an island is what makes DoggieDoc's layout work, and what makes the architect's versions fail.

Is the pond natural or a water feature? In my part of the world, natural ponds can be mixed blessings. I'd want to spend time with it before deciding if it's something that should be emphasized.

Heard! No freestanding island either!

The pond is natural but the other houses that live on it use it for canoeing, kayaking, and fishing.

Just catching up. Oh Tetheridge. I am so concerned about what you are getting yourself into. Perhaps your Father can help defray labor cost on electrical work but the typical “building” process is complex and permitting is a challenge typically too. You can’t just “live with flooring” that is partially torn up. Especially with 2 young children running around. You need at 15% of total project set aside for “discovery” issues you currently don’t know about. You can use some appliances you have but have to consider what you might ultimately want. This rarely works out well. Using temporary countertops is possible but impacts other items like installing backsplash material. The building sequence means each project builds toward another. That means planning electrical, gas and other utilities in the initial work. You “don’t know what you don’t know.” Will you have to update electrical to current code if you make changes now? Answer probably yes. That goes for all major “systems”. This is work you don’t see so in doing your project, it will be months before you have basics done. Is there mold in any areas? If so, especially living near lake/pond that will require “remediation” before you or any craft can work inside. I know you are emotionally committed but i pray you really think this through so you don’t end up with an unsalable property and terrible personal financial woes. I reluctantly post this knowing it is not what you want to hear but i would rather you have your eyes wide open so you don’t have a huge mess on your hands. Ok. Take a deep breath. It is worth considering backing out of this deal. You would lose deposit but not massive loss by moving forward. Hope you take this in the manner intended, caring about you and your family.

Not sure where you are in your thinking right now but i have developed a rough budgetary estimate for your kitchen/eating area/dining and storage project. If you think this could help in your decision-making process, i can email or text it to you. Just email me at manganflo@gmail.com
And i can send to you. I had to walk away from a lit and new house build before we landed here in Texas. It was a gorgeous property overlooking a natural large lake and several holes of the local golf course. I just couldn’t get comfortable enough with the builder and would have been managing it from several states apart. Since we had just begun, the builder was kind enough to refund our earnest money and we ultimately built here in Sienna. So I can relate to what you are going through. Just let me know. Best to you.
