Best way to center top electrical box?

2 years ago

Hi,

I would like to center the top electrical box over the bottom electrical box. My GC is balking at this. He is also not one to research anything or have ideas. It is an Act of God to get his electrician to show. Big sigh.

I would like to present them with a good idea that is the least drywall destructive method. Is there an electrical box that I can purchase to replace the existing box that would move it over rather than adding wood blocking to the wall? Or some other idea?

Thank you!

Comments (12)

  • 2 years ago
    last modified: 2 years ago

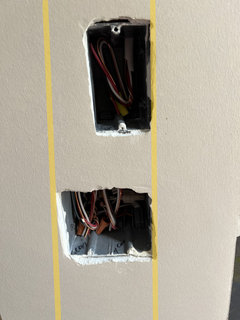

    Picture of electrical boxes. The Yellow lines represent the wall studs.

  • 2 years ago
    last modified: 2 years ago

    A cut in box would work with some patching around it.

    Why is it so bothersome the way it is? moving it one inch seems like a lot of work with little gain.

    Why wasnt a 3 gang box used instead? is there not enough wall room?

    HU-910663146 thanked Dave
  • PRO
    2 years ago

    Three gang turned sideways or an old work aka remodel box. Either way you will have some patching.

    HU-910663146 thanked HALLETT & Co.
  • 2 years ago
    last modified: 2 years ago

    There was not enough room for a 3 gang in between the two wall studs.

    Not having the switch centered bothers me from a design standpoint. I'm remodeling my kitchen, and I want it to look good, not just this is how we slapped it up before racing off to the next house--particularly since I am paying on a time and materials basis.

    There is a plastic electrical box there now. I guess I don't understand how that is different from an "old work box"? Does an old work box have a greater dimension on one side that would move it over?

    There is not a stud across the top or bottom. Currently, the top box is screwed into the stud to the right side and the bottom box is screwed into both the stud on the left side and the stud on the right side.

  • 2 years ago



    This is a cut-in box. Is this what you meant?


  • PRO
    2 years ago

    Google old work box.

    HU-910663146 thanked PPF.
  • 2 years ago

    Thank you PPF! Now I understand what you mean. I appreciate your kindness.


    My GC mentioned that he did not want to attach something to drywall because it can flop around over time. I apparently have one of those in my den, and it has moved around over time. The one in my den is a plug receptacle, which I imagine has received a lot more torque on it when people unplug a device. The switch wouldn't be subject to the same forces necessarily.

  • PRO
    2 years ago

    There are adapters to convert a 2 gang to a single, or you could install a 2 gang box and use 2 switches, one being non functional.



    HU-910663146 thanked PPF.
  • 2 years ago

    Possibly a double switch in the two gang box and eliminate the single gang box.



    HU-910663146 thanked ci_lantro
  • 2 years ago

    I would use a plastic cut in, not metal if your house is wired with romex.

    HU-910663146 thanked Dave
  • 2 years ago
    last modified: 2 years ago

    Best way to center that box is to cut the box nails with a hacksaw blade. Remove the drywall to center the box and install a wood shim to the stud and re-screw the box to it with drywall screws once the box is centered. Then repair the drywall

    HU-910663146 thanked Terry Hill
