Installing solar mounting rails

Torquing the lag bolts

Close up of installed L bracket

solar panels

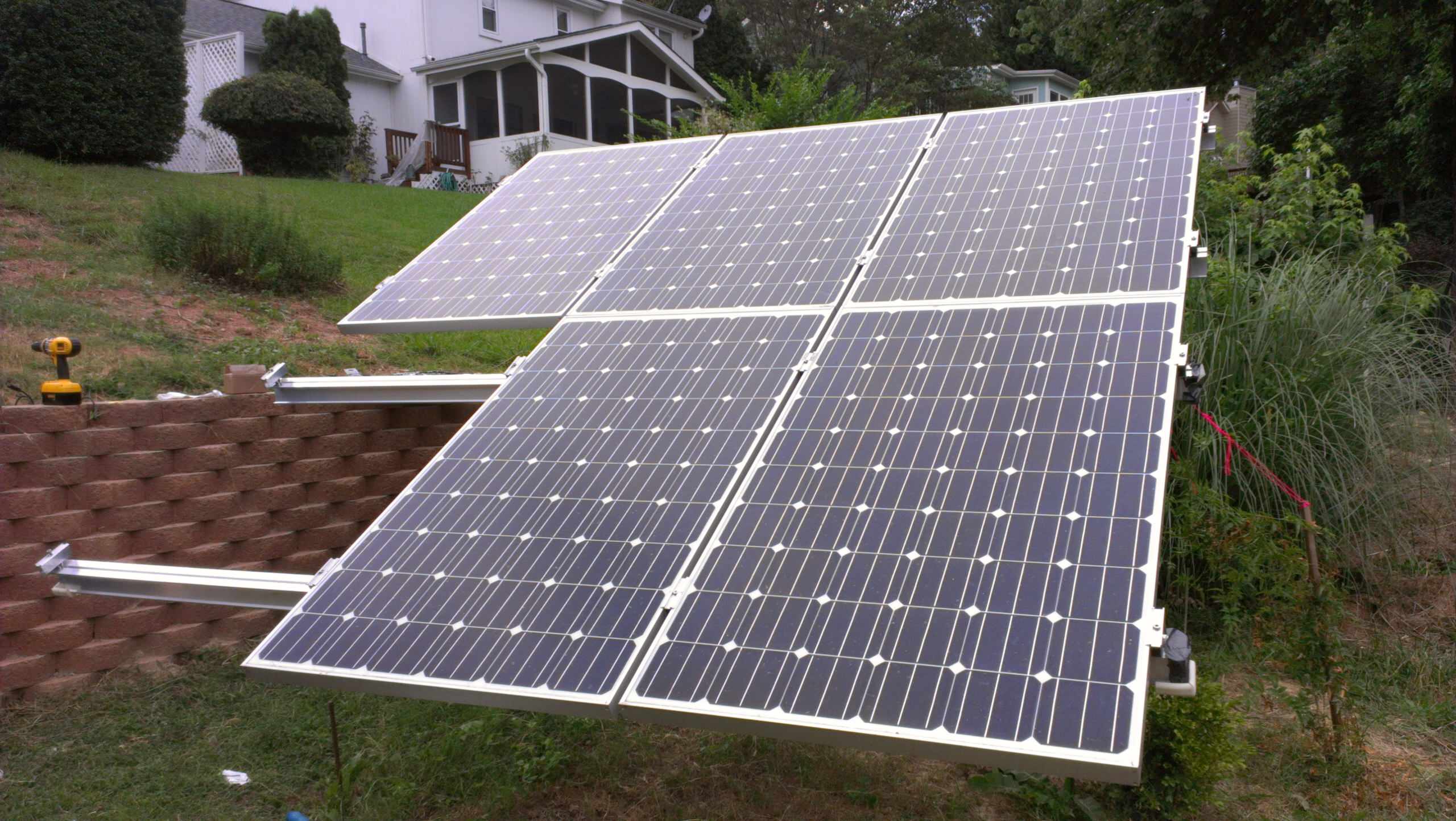

solar array installed

solar array

close up of ground lug

14 panel array, residential, atlanta

AET Solar Collectors for drainback system

double pump drainback system being installed

This photo shows a drainback solar hot water system. The top tank is a reservoir for distilled water that is pumped through the collector. The bottom storage tank is eighty gallons and has an electric element near the top to provide backup heating when needed.

Nice shot of an Evosolar collector

This system operates completely independent of the grid. The small PV panel at the top of the collectors provides the power needed to run a d.c. pump near the tank. When there is enough sun to heat water the panel runs the pump, when there isn't the panel won't provide enough watts to power the...

Roof penetration and air vent

Roof penetration and air vent

We run into some very tight places installing solar hot water!

New solar tank on the left pre heats the water for the existing gas water heater on the right. Note the brass pressure relief valve on the upper right of the silver tank.

Vacation by-pass valve, air separator valve, thermometers

Piping heading up to floor above.

Charging the system with glycol

Small panel on left of large collector powers a direct current pump. Panel needs to be cleaned regularly to prevent lowering the voltage which slows the pump down, delivering less hot water.
